Grain Vertical Screw Conveyor
US$ 500 - 1,200
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Screw Conveyor
Material:
Stainless Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Conveyor /cement Screw ConveyorUS$ 500 - 1,200MOQ: 1 Set -
Pellet Screw ConveyorUS$ 500 - 3,500MOQ: 1 Set
-
Hand Grass Cutter for Animal Cow, Sheep, Dog, HorseUS$ 1,000 - 2,000MOQ: 1 Set
-
Wheat Stalk Grass Cutter for Cattle FeedUS$ 1,000 - 4,000MOQ: 1 Set
-
Grass Cutter MachineUS$ 900 - 3,500MOQ: 1 Set
Condition
New
Type
Screw Conveyor
Material
Stainless Steel
Material Feature
Heat Resistant
Structure
Belt Conveyor
Load Capacity
20m³/h
Place of Origin
Henan, China
Brand Name
Amisy
Model Number
LS
Voltage
380V
Power(W)
0.75-7.5KW
Dimension(L*W*H)
For different weight
Certification
ISO
After-sales Service Provided
Engineers available to service machinery overseas
vertical screw conveyor
* Introduction of the vertical screw conveyor:
- The vertical screw conveyor mainly used to convey particle materials and small lumpy materials to the next equipment in the process.
- The length and the shape of our vertical screw conveyor can be adjusted differently according to customers' requirements.
- The vertical screw conveyor is used to transfer the powder like raw materials like sawdust, rice hull, pulverized straw from crushing machine to the mixer machine;
- We also add the magnetic part on this machine which can get rid of the metal things in the raw material.
* Main data of the vertical screw conveyor:
Model |
LS-100 |
LS-160 |
LS-200 |
LS-250 |
LS-315 |
LS-400 |
Screw Dia (mm) |
100 |
160 |
200 |
250 |
315 |
400 |
Speed (r/min) |
140 |
112 |
100 |
90 |
80 |
71 |
Capacity (m³/h) |
2.2 |
8 |
14 |
24 |
34 |
64 |
Power(kw) |
0.75 |
0.75-1.5 |
0.75-2.2 |
1.1-4.0 |
1.5-5.5 |
2.2-7.5 |

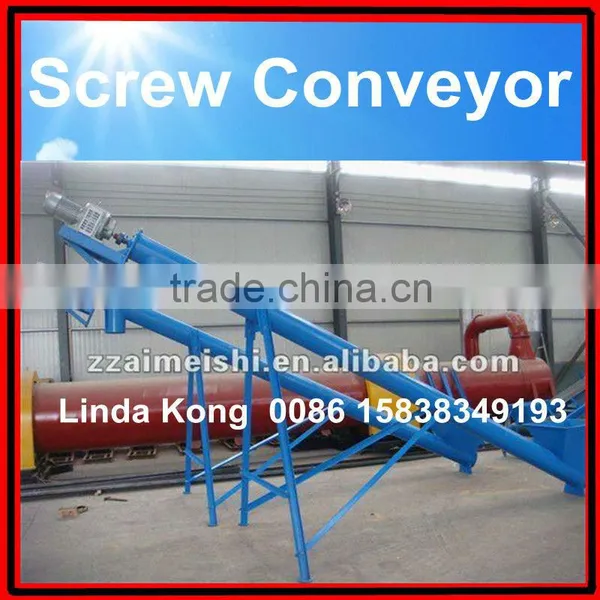

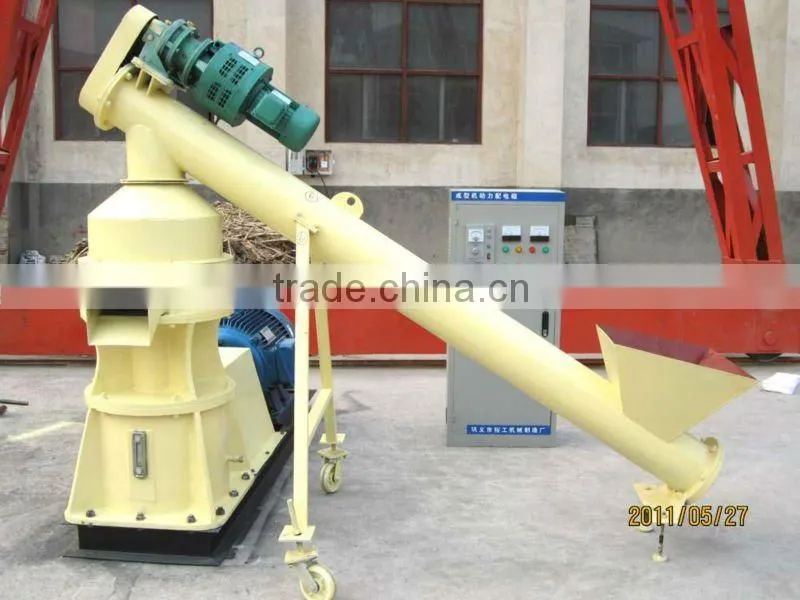

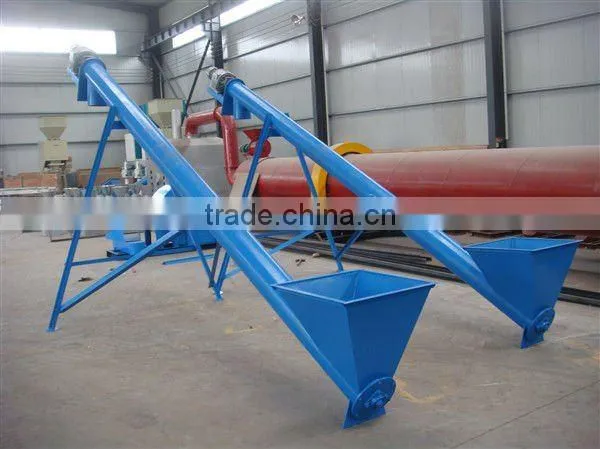

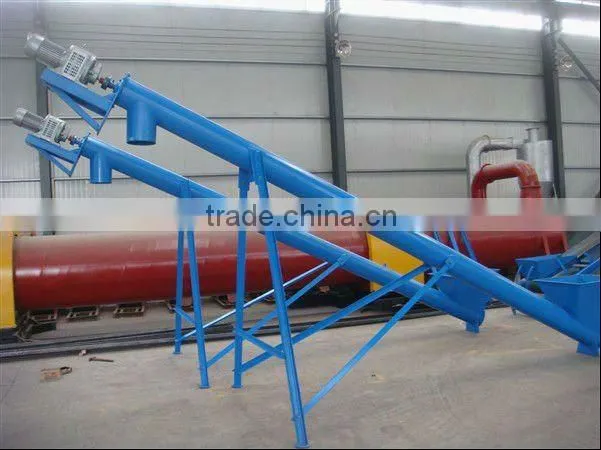

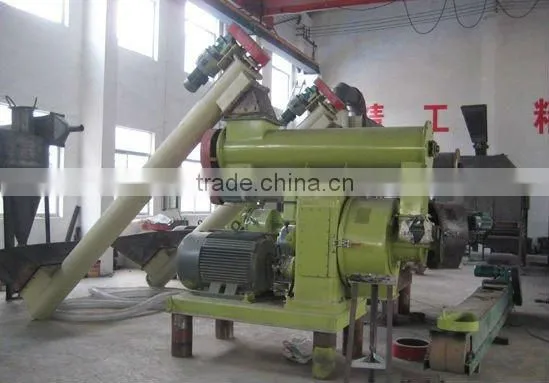

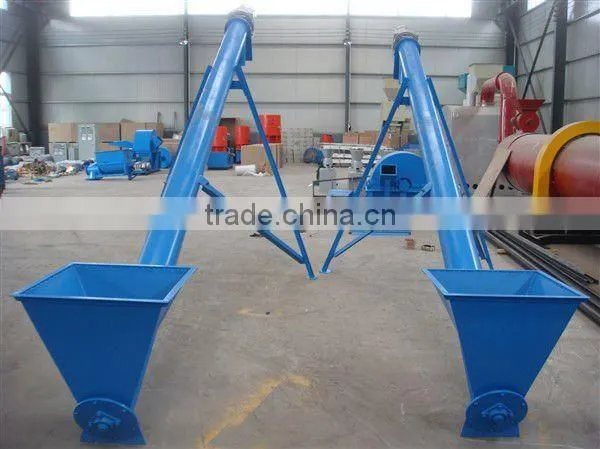

* The pictures of the vertical screw conveyor
