Specifications
crusher cable13 year's experiences
Output:300-400kg/h
Copper purity:99.99%
No water,no dust pullution

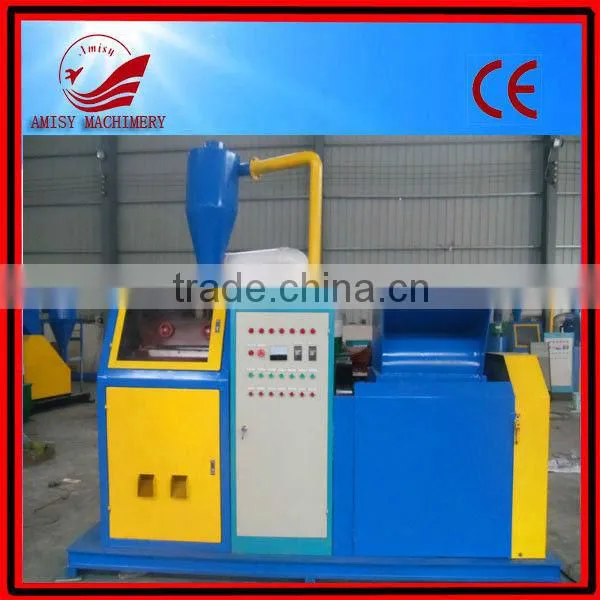

alibaba supplier pvc cable scrap crusher cable recycling plant with CE
This electrical copper wire scrap crusher cable recycling plant is specialized in recycling autowire, communicate cable, and other mixed copper wire/cable. It has granulator, riddler and electric control panel. It can recycle copper and insulation, have high economic benefit, without environmental pollution.
electrical copper wire scrap crusher cable recycling plant Features:
- With CE certificate;
- With latest technology and unique design,which has greatly better effect than the old model AMS918-600;
- The material of the waste wire can be telephone wire, household electric wire, automotive wire and cables,diameter should be within 25 mm. Just needing 1-2 workers to operate, labour-saving, small land occupancy and investment
- Combines many processions into one, including crushing, conveying, dust collecting, separating process. It can recycle both the copper granule and PVC plastic.
- Has a high recycling rate of 99.99%, When processing the scrap/waste copper wire/cables, it has no dust, no environmental pollution
- No need water during the whole process
- Equipped with PLC control system
- Voltage can be changed according to your needs.
electrical copper wire scrap crusher cable recycling plant Technical parameters:
|
Model Item |
AMS-600 |
Power |
31KW |
Capacity |
300-400kg/h |
Dimension |
L2830×W2000×H2800mm |
Weight |
2800kg |
Packing Dimension |
L2900×W2100×H2000mm |
Packing Weight |
2900kg |
electrical copper wire scrap crusher cable recycling plant Process flow chart:
1.Crushing process
Put waste copper/ cable into crusher to make plastic skin and copper separate completely
2. Conveying and dust-collecting
After crushing, the crushed material (mixture of copper and plastic) will be conveyed to the separator, during which procedure the plastic granules (including fiber, rope, ordust,etc. ) are cleaned by the dust cleaner.
3. Separating process
The vibrating separator consists of separating board, amplitude adjustable device, and speed adjustable motor,etc. It is used to separate plastic and copper.
4. Copper-collecting and copper clad recrushing
There are two discharging holes respectively for copper and plastic, if there are any copper clad, they need to be recrushed.
5. All the units are installed on the underbed to form a whole plant, very easy for
transport. The machine is well adjusted before shipping, so the customer only needs to connect it to the power supply before production.
Models of electrical copper wire scrap crusher cable recycling plant:
electrical copper wire scrap crusher cable recycling plant Input and output:
