CNC pipe Profile cutting machine
can do both pipe cutting and sheet cutting
control by software, You can deisgn any shape
Function&Applicable industry & Applicable material
cutting sheet metal, cutting metal tube/pipe. Metal processing, machinery manufacturing ,
automobile parts, steel shipbuilding, etc. Iron, carbon steel, stainless steel, galvanized sheet,
aluminum, cooper, brass, etc.
Machine Specification
1.Machine lathe: Seamless welding steel tube/Cast iron
2.Table type: flat blade / sawtooth blade
3.Guide rail: Hiwin /TBI/ PMI from TAIWAN
4.Rack: Domestic /Atlanta
5.Motor: Stepper motor /Hybird motor/ servo motor
6.Control system: START/STARFIRE /DSP/ HYPERTHERM/ FANGLING
7.Control cabinet: Independent control cabinet
8.Software: Fastcam from Australia
9.Torch: P80/Hypertherm/Trafimet
10.THC: Torch height controller START/HYD/ONTIME
11.Electrode and nozzles: Xuelang/Hypertherm
12. Pipe cutting attachment: Diameter 100mm, 200mm, 300mm
Machine Packing Dimension
Machine dimension: 3100x2050x1600mm
Packing dimension: 3250x2200x1750mm
Technical Parameter
Table Working Area |
1300*2500mm |
pipe cutting diameter |
diameter within 300mm , length within 60000mm |
Cutting Thickness |
Depends on plasma source |
Moving Speed |
0-50000mm/min |
Cutting Speed |
0-10000m/min |
Cutting accuracy |
±0.02mm |
Input Voltage |
3 Phase 380V |
Power Frequency |
50HZ |
Flies Transfer |
USB Interface |
Arc type |
Untouched type |
Moter |
stepper motor or Panasonic servo motor |
Control system |
DSP or Start control system |
Applicable material |
Steel,carbon steel,stainless steel, Iron plate ,aluminum and copper |
Power supply |
China HUAYUAN/ USA HYPERTHERM/USA THERMADYNE |
Machine photo
Some accessories

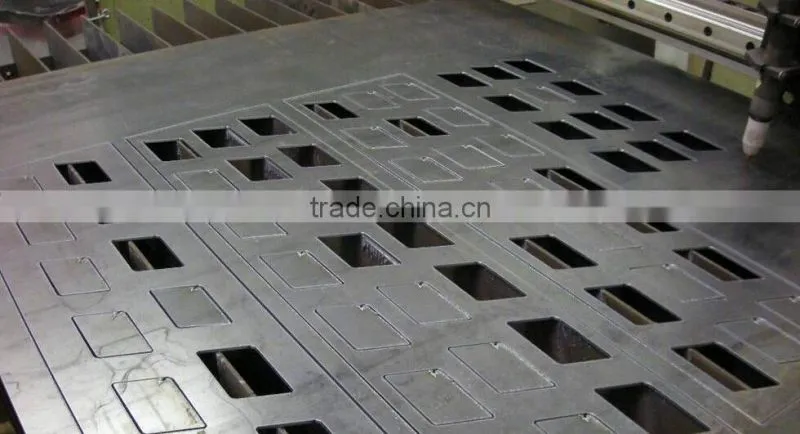

Sample photo
welcome to send inquiry. if urgent you can call me at +86-153 153 15957.
