Specifications
used heavy duty lathe machine1.DSP,USB interfact
2.CE approval cnc lathe
3.ISO FDA
alibaba gold supplier used heavy duty lathe machine
Detailed Features
1. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.

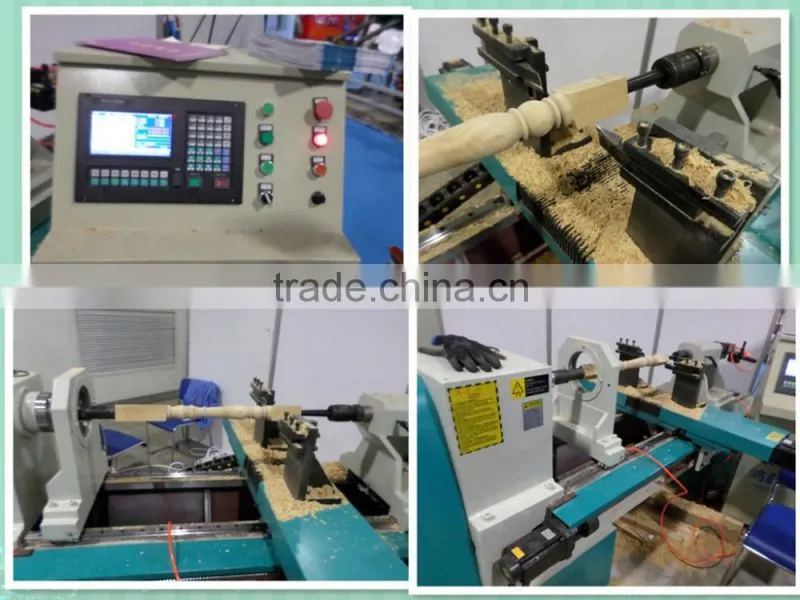

2. Professional used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc. wood cnc turning lathe
3.Adopting advanced DSP system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
4. Adopt Germany ball screw and Taiwan PMI helical square guide rail with high transmitting precision and longevity. Bid module helical/diagonal rack.
5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.
6. Rotating speed is adjusted by inverter, and the speed data is shown on controlling cabinet panel.
7. One time tool setting to finish the whole work piece.
Suitable Materials and Industrial Applications
Staircases,stairway balusters,stairway newel posts;dining table legs;end table legs;sofa table legs;bar stool legs;
chair legs;chair arm posts;chair stretchers;sofa and bun feet;bed rails;lamp posts;baseball bats and so on.
Technical Parameters
Model |
iGM-1530/2030/2530 |
Max turning length |
2500mm or option |
Max turning diameter |
300mm |
Number of axis |
2 axis 1 blade/1 axis 1 blade/ 1 axis 2 blade or option |
Maximum feed rate |
2000mm/min |
Minimum setting unit |
0.01cm |
Spindle motor power |
4kw |
Control system |
DSP,USB interfact |
Air pressure |
0.6-0.8Mpa |
Power supply |
AC380v/50hZ or 220v/50hz or option |
Overall dimensions |
300*110*170cm |
Weight |
1600kgs |
Other models:
Model |
1318 |
1320 |
1520 |
Max turning length |
1300mm |
1300mm |
1500mm |
Max turning length |
180mm |
200mm |
200mm |
Spindle power |
2.2kw |
4.0kw |
4.0kw |
Tools |
1 |
2 |
2 |
Spindle |
1 |
||
optional parts
1. More rotary axis
2. Spindle
3. Different power requirement
4. Upgrade controller
5. Servo motor
6. Bigger working diameter and length, etc.
After-sales service
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4.Spare parts replacement and repair service provided.
1.Payment terms: 50% T/T down payment, 50% T/T upon copy of bill of lading in one week
2.MOQ:one set for end users,5 sets for agent.
3.How to get the exactly quotation? Please tell me more questions as below
A .working area
B .what kind of work do you want to do?cutting or engraving?
C .the material and the thickness you want to process.
D .what kind of sample do you want to engraving or cutting?
