tonight aluminum stainless steel, metal led light box sign moves channel letter bending machine
1. aluminum channel letter bending amchine Brief introduction:
Automatic CNC bending machine, (also called CNC letter bending machine or character bending machine) is a new advertising production equipment, which can be used for logos, signs, neon signs, billboards, light boxes production, outdoor advertising and other advertising production.
2. aluminum channel letter bending amchine Application:
1) Applicable Materials: Aluminum strip bending, stainless steel strip bending, iron bending, galvanized steel bending ect.
2) Applicable Industries: advertising industry, such as logos, signs, neon signs, billboards, light boxes production, outdoor advertising and other advertising production.
3. aluminum channel letter bending amchine Features:

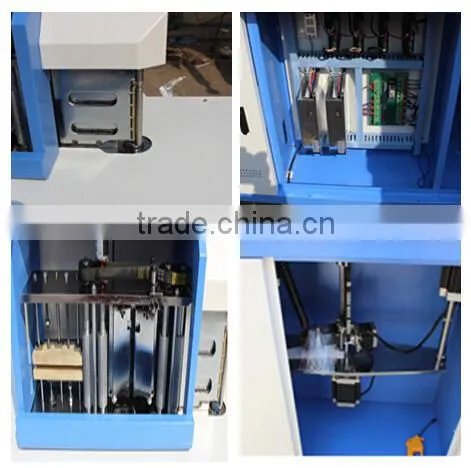

1.Aluminum/Stainless Steel profile Automatic straightening device:
Before notching ,the profile will be compacted automatically, which will assure the smooth of the material and hi-precision cutting ;Automatic loose when no material or material feeding/return which make sure the return material unobstructed.
2. Feeding system
Automatic feeding length measurement system BMO, control the feeding precision less than 0.05mm,improving the accuracy of the letter making.
3. Notching device:
Adopting the four slides location up and down motion and also use Japanese original gravity cylinder make the power transmission, the profile will be compacted automatically before notching,
which assure the stability and the precision of the slotting.
4.Bending device:
Bending adopt up and down ,squeezing bending principle, use double squeeze roller to finish left and right bending ,the advantage is when reverse bending, avoid to cambered surface rebound defect,this way the material will not deformation. We designed 200mm bending squeeze roller make the bending space amplification, it is more easy to bending small radian ,greatly improved the quality of letter making.
5.It can work in 0.05mm precision , and work together with laser engraving machine , plasma cutting machine, CNC router to realize the advertisement processing.
Advantages:
1. Rolling feeding with guiding mechanism ,high precise feeding, finished product length coincides with the original one’s, the error is close to “0”.
2. High degree of forming, coincide with the various kinds of precision cutting of panels 99%;
3. Long tool working life, low slotting cost, imported slotting tool is good at cutting high hardness material and it can be used for 10000 times;
4. Precise and controlled groove depth- it controls the depth of groove by numerical control axis and this meets different feeding frequency of different material rolling and skidding.
5. Intelligent compensation for bending rebound- Inside set with intelligent compensation system and professional parameter database controlled by HZ-Auto Bend CNC system developed by Huazu.It can assure forming precision for all kind of material.
Material thickness: |
0.3-1.3mm |
Material width |
30-150mm(1-6 inches) |
Letter range |
40mm and more |
Max power |
1500w |
Power |
AC 220V/110v |
Feed speed |
10-40m/min |
Document format |
Ai/DXF |
Drive method |
Stepper |
Machine size |
1.75x0.9x1.28m |
Weight |
425kg |
1- Can I bend 130 width material?
Yes,our LJ-VAL can bend max 150mm,if more we will customize for you.
2- How is your delivery time?
Usually it takes 6 days after your deposit for stardard model we have in stock.if you need urgent,
can arrange delivery quickly.
3- What about after-sale service?
We have detail English manual can guide you to run machine,if any doubt,our enginner will use Teamview to control your software on your computer,meanwhile chat with you on skype.
4- I want to see your machine,where is your factory?
Our factory is located in Weifang City,Shandong Province. you can take flight to Weifang Airport.we can pick you up there.
5.How to know your machine with high precision?
The precision can be found by matching the acrylic face which made by cnc router
4.12 hours free technical support online. we will solve your problems immediately
byemai,fax,MSN,Skype,telephone.
5. The englishoperation manul in electronic edition is included.
6. Machine has been adjusted well before delivery.
