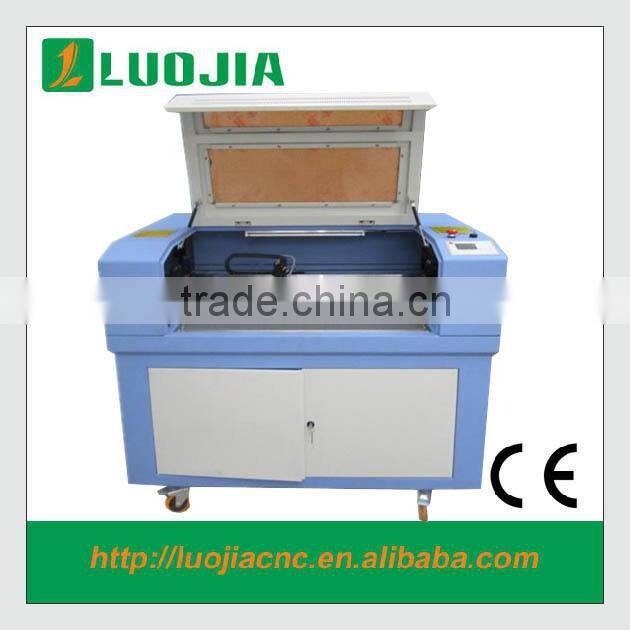

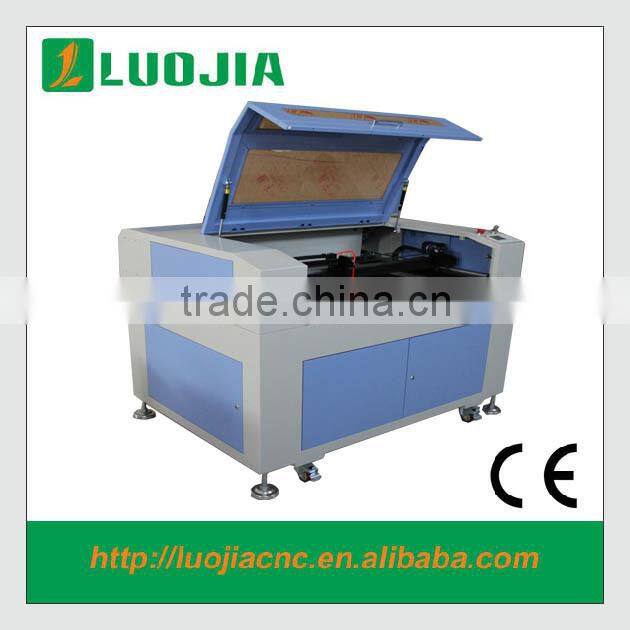

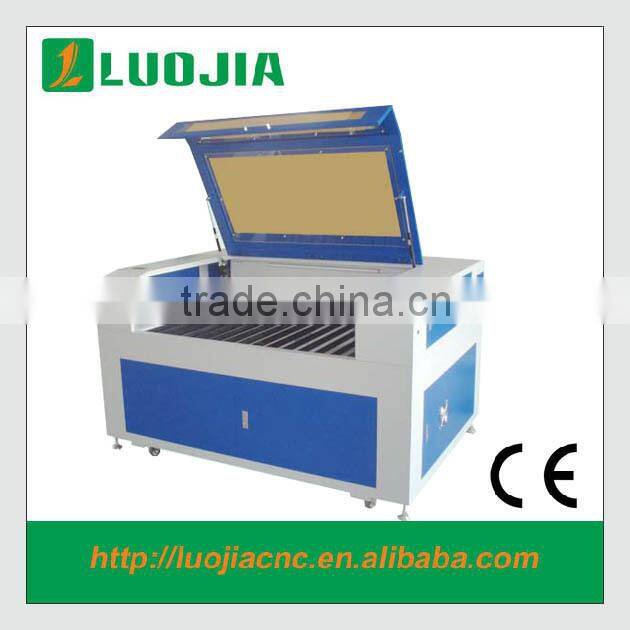

High precision auto feeding laser cutter equipment veneer 20 mm
auto feeding laser cutting machine
Features:
1. High stability laser tube, imported lens and mirror, long life-span.
2. The up-down work table design satisfies the customers need of engraving thick materials.
3. Adopt advanced DSP digital control system, international standard laser power supply, integrated framework style ,usb2.0 interface output can support off-line working.
4. Strong software function, compitable with Coreldraw, Autocad and so on.
5. Auto focus system, water pump, air pump and rotary attachment are optional.
Applications:
It is widely used in mould industry, advertising, decoration, arts and crafts, electronic appliances, etc.
And It is widely used for engraving & cutting on wood, acrylic, PVC plastic, plexiglass, architectural models, rubber plates, bamboo products and so on.
Technical Parameters:
NO. |
Model |
iGL-6040 |
1 |
Laser medium |
CO2 |
2 |
Working area |
600*400mm |
3 |
Working table |
Blade table |
4 |
Laser power |
40/60/80W |
5 |
Power Supply |
220V/50Hz, 110V/60Hz |
6 |
Min line width |
≤0.15mm |
7 |
Positon accuracy |
0.01mm |
8 |
Repetition accuracy |
0.02mm |
9 |
Cutting speed |
120mm/s |
10 |
Guide rail |
Hiwin from Taiwan |
11 |
Transmission method |
Belt Transmission |
12 |
Drive system |
Leadshine driving system and stepper motor |
13 |
Cooling system |
Water-cooling |
14 |
Control system |
Leetro |
15 |
Control software |
Coreldraw, Photoshop, AutoCAD, Tajima |
16 |
Graphic format support |
PLT, DXF, BMP, JPG ,AI and ect |
17 |
Working environment |
0-45°C, |
18 |
Operating Humidity |
5-95% |
19 |
Gross Power |
220KG |
20 |
Net weight |
200KG |
21 |
Dimensions |
1230x960x1160mm |
Key point:
Please kindly tell us the engraving or cutting materials,and the max working area.
According this, we recommend the suitable machine for you.
Free accessories:
Air pump,Exhaust fan,Power cable,Air and water pipe,Manual,software CD,Soft dog,Focal scale,keys,Insulate tape,Inner hexagon wrench,Measure ruler,Blow pipe,Ring clamp,Ring flange
Delivery and Transport:
We can send machine to your port or door address by sea or airplane.
Pls kindly tell us your near port or address with postcode.
Warranty and Service:
One year warranty for machine
We offer online service 24 hours all day Skype, Email and so on.
You can contact us any time,if urgently,pls call us.
English manual and Video CD for manchine using and maintance.
