Raw Wool Cleaning Machine/wool Washing Machine/ Automatic Wool Washer (website: Hnlily07)

Raw Wool Cleaning Machine/wool Washing Machine/ Automatic Wool Washer (website: Hnlily07) thumbnail-1
Raw Wool Cleaning Machine/wool Washing Machine/ Automatic Wool Washer (website: Hnlily07) thumbnail-2
Raw Wool Cleaning Machine/wool Washing Machine/ Automatic Wool Washer (website: Hnlily07) thumbnail-3
Raw Wool Cleaning Machine/wool Washing Machine/ Automatic Wool Washer (website: Hnlily07) thumbnail-4
Raw Wool Cleaning Machine/wool Washing Machine/ Automatic Wool Washer (website: Hnlily07) thumbnail-5
Raw Wool Cleaning Machine/wool Washing Machine/ Automatic Wool Washer (website: Hnlily07) thumbnail-6
Raw Wool Cleaning Machine/wool Washing Machine/ Automatic Wool Washer (website: Hnlily07) photo-1
Raw Wool Cleaning Machine/wool Washing Machine/ Automatic Wool Washer (website: Hnlily07) photo-2
Raw Wool Cleaning Machine/wool Washing Machine/ Automatic Wool Washer (website: Hnlily07) photo-3
Raw Wool Cleaning Machine/wool Washing Machine/ Automatic Wool Washer (website: Hnlily07) photo-4
Raw Wool Cleaning Machine/wool Washing Machine/ Automatic Wool Washer (website: Hnlily07) photo-5
Raw Wool Cleaning Machine/wool Washing Machine/ Automatic Wool Washer (website: Hnlily07) photo-6
US$ 2,250 - 13,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
AMS
Contact Supplier Request Quote Chat Now
Zhengzhou Amisy Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Yiwu Guangzhou and so on
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Henan, China
Brand Name AMS
Model Number AMS-QX150
Feature Critical Cleaning / Residue Free
Fuel Electric
Certification CE
Use Other, wool cleaning machine
Cleaning Process Cold Water Cleaning
Cleaning Type High Pressure Cleaner
Industry Used Other, wool cleaning machine
Material Other, stainless steel
Power(W) 4 Kw
Dimension(L*W*H) 2500*1500*1900mm
After-sales Service Provided Engineers available to service machinery overseas
raw wool cleaning machine/wool washing machine/ automatic wool washer


Attn: Lily Wang

Mobile/What's App: +86 136 3382 8547

Skype/Wechat: hnlily07

Product Description



Details of Wool Cleaning Machine:

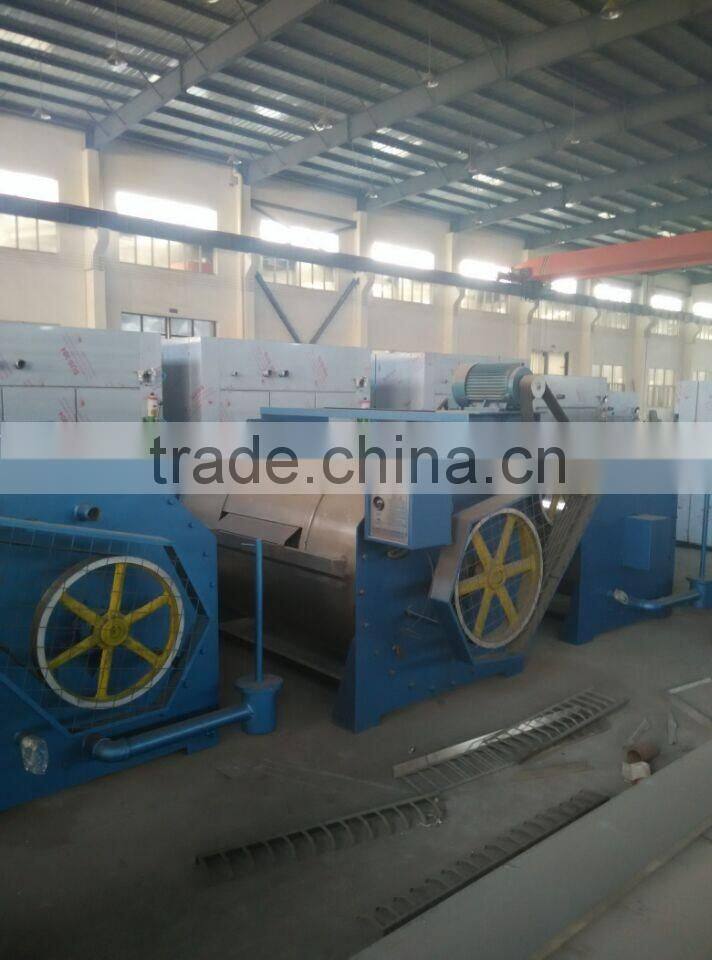

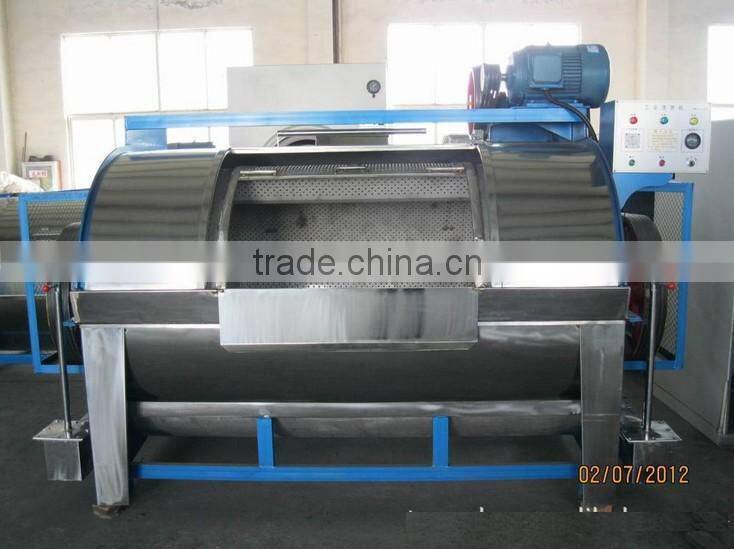

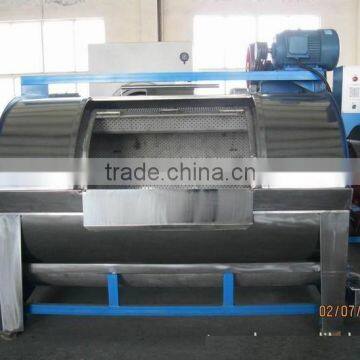

       The Wool Cleaning Machine adopts the horizontal cylinder type, the internal and external are made of high quality stainless steel. The machine inside surface is smooth, corrosion resistance so will not damage the washed material.

raw wool cleaning machine/wool washing machine/ automatic wool washer (Skype: hnlily07)

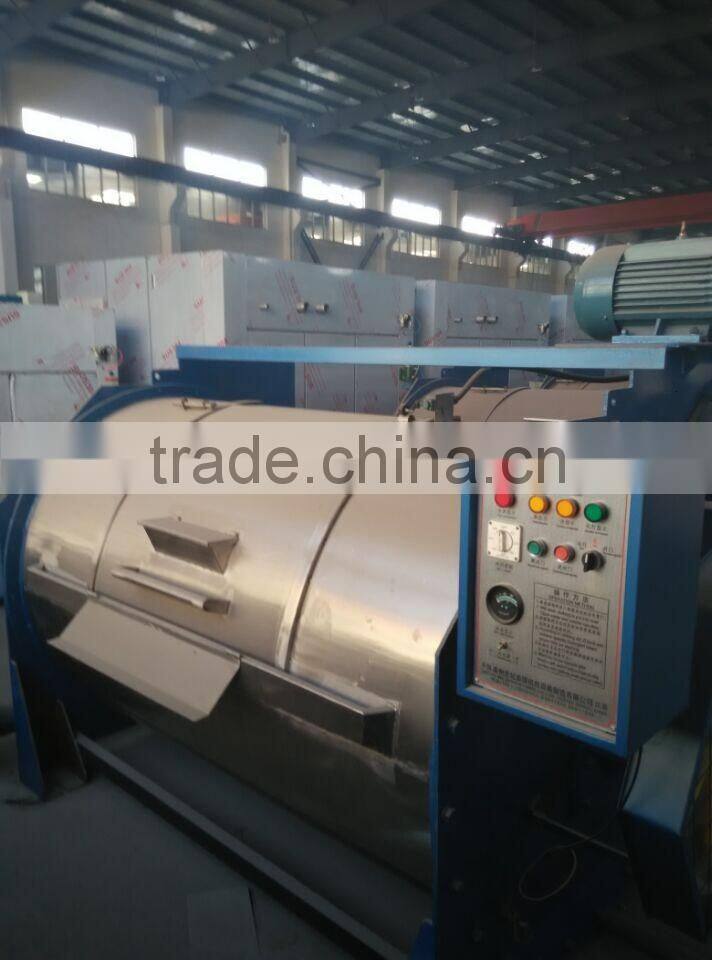

     The Wool Cleaning Machine build-in overheating,overload device, timer and reversing control devices. The external door is equipped with safety devices, during the operation, if the door opens, achine will stop immediately to ensure the safety of machine and operators.

raw wool cleaning machine/wool washing machine/ automatic wool washer (Skype: hnlily07)



Working Principle of Wool Cleaning Machine:

     The overhead motor, triangle tape will drive the constan velocity boot to make the barrel for positive & negative rotation, through the material & material, material & inside  barrerl friction to get the washing effect.

raw wool cleaning machine/wool washing machine/ automatic wool washer (Skype: hnlily07)



Parameters




Type 		Max washing capacity

drum size

(mm)

 Power
(Kw) 		Speed
(r/min)


Water consumption

(kg)

 steam pressure(Mpa)

 Dimensions

(mm)

  Weight

(kg)
AMS-QX15 15 Kg φ 540*680 0.75 46 300 0.4-0.6 1200*800*1200 400
AMS-QX30 30 Kg φ 660*800 1.1 36 420 0.4-0.6 1520*1100*1300 700
AMS-QX50 50 Kg φ 800*980 1.5 36 520 0.4-0.6 1750*1200*1500 900
AMS-QX70 70 Kg φ 950*1220 2.2 34 650 0.4-0.6 2050*1400*1850 1500
AMS-QX100 100 Kg φ 960*1420 3 34 820 0.4-0.6 2300*1400*1850 1750
AMS-QX150 150 Kg φ 1060*1650 4 33 1000 0.4-0.6 2500*1500*1900 1850
AMS-QX200 200 Kg φ 1080*2000 5.5 32 1240 0.4-0.6 2900*1500*1900 2200
AMS-QX250 250 Kg φ 1200*2280 7.5 30 1650 0.4-0.6 3200*1800*2200 2500
AMS-QX300 300 Kg φ 1300*2280 7.5 28 2000 0.4-0.6 3200*2000*2300 2800



Photos

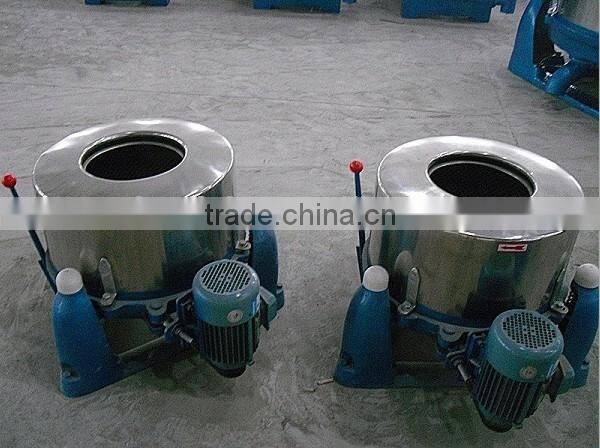

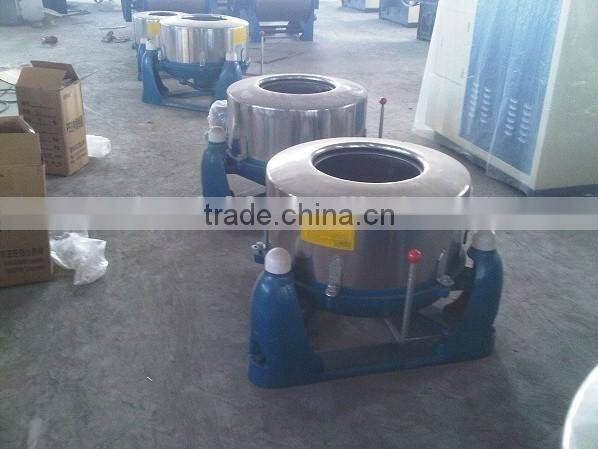

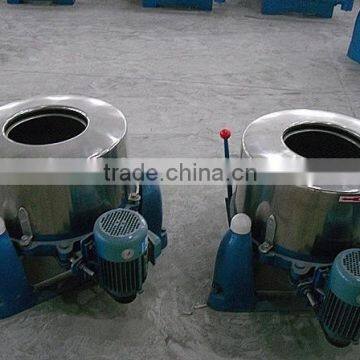

Wool De-watering Machine

Model

Power

Drum Diameter (mm)

Dimension

Weight

AMS-SS500

1.1 Kw

Φ500

950*750*650mm

240 Kg

AMS-SS600

2.2 Kw

Φ600

1000*1000*750mm

580 Kg

AMS-SS800

4 Kw

Φ800

1400*1100*820mm

980 Kg

AMS-SS1000

5.5 Kw

Φ1000

Φ1720*840mm

1400 Kg

AMS-SS1200

7.5 Kw

Φ1200

Φ1920*935mm

2000 Kg

AMS-SME1500

8-10 Kw

Φ1500

2500*1950*1400mm

2800 Kg

raw wool cleaning machine/wool washing machine/ automatic wool washer (Skype: hnlily07)

raw wool cleaning machine/wool washing machine/ automatic wool washer (Skype: hnlily07)

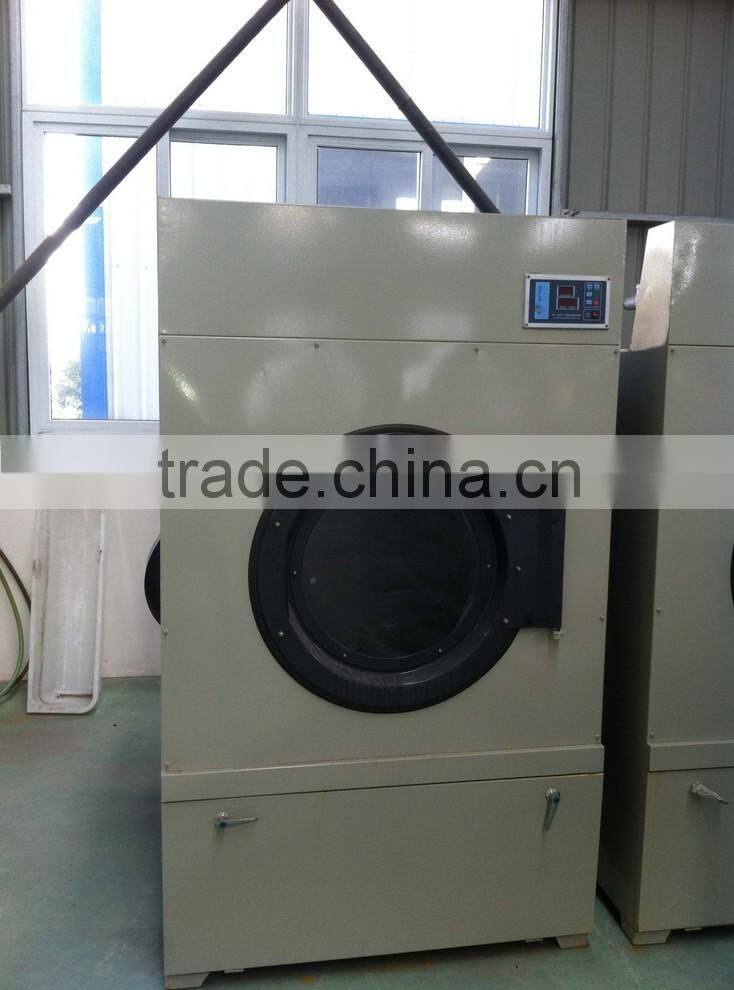

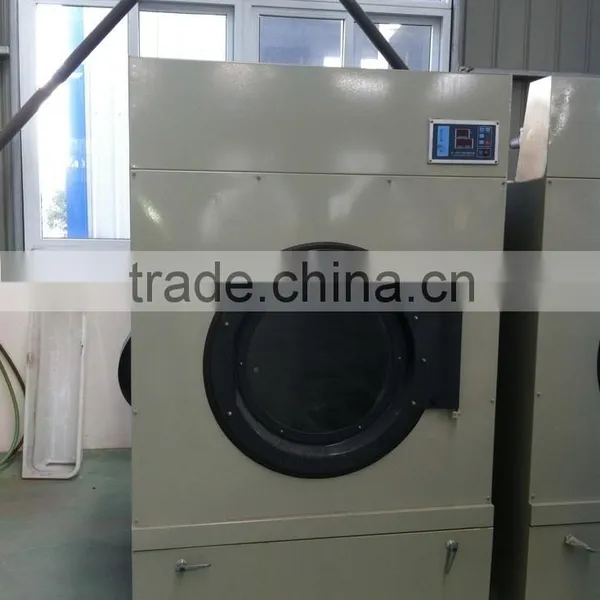

Wool Drying Machine

Model

SWA801-15

SWA801-30

SWA801-50

SWA801-100

SWA801-150

Volume

15KG

30KG

50KG

100KG

150KG

Drum Size

(mm)

Φ820×500

Φ890×750

Φ1140×940

Φ1320×1080

Φ1600×1120

Drum Speed

(R/Min)

32-35

32-35

30-33m

30-33

29-31

Heating

Steam Pressure 0.294-0.588MPa;Electric: 380V,50Hz, 3 phase

Heating Power

13 kw

18 kw

30 kw

45 kw

,

Motor Power

0.75 kw

1.1 kw

1.5 kw

2.2 kw

4 kw

Fan Power

0.75 kw

1.1 kw

1.5 kw

2.2 kw

4.4 kw

Dimension

1250*800*1650

1000*1450*1900

1250*1600*2200

1480*1900*2350

1760*1900*2400

raw wool cleaning machine/wool washing machine/ automatic wool washer (Skype: hnlily07)
