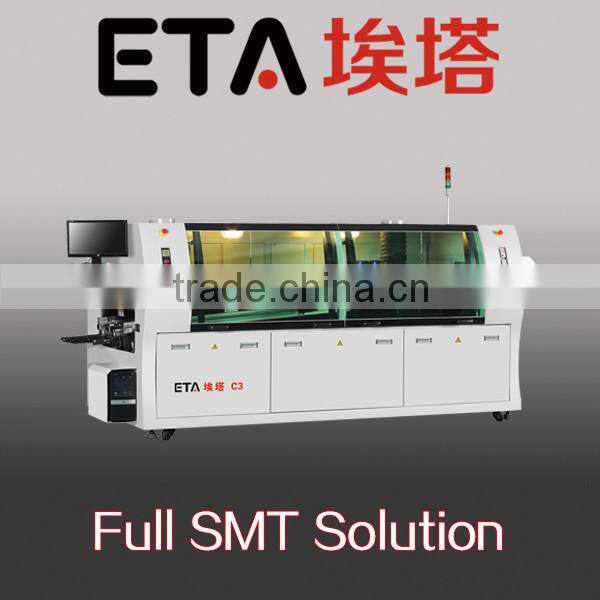

Lead Free Dual Wave Soldering Machine C350 For smt line/led factory/PCB inserting line
Details
Control System
> PC control system with windows based control software.
>Lenovo Computer and Siemens PLC
Preheaters System—Patented Heating Plate
>3independent heating modules (overall length:1.6m), each consists of patented
>Preheating zone with heating tube ensures the best flux activation temperature and activation time.
Distortion-free Conveyor System
>Chain type entrance guides.
>Enhanced titanium finger conveyor is of high elasticity and is distortion-free.
>The conveyor system is steady and safe with adjustable speed (100-2000mm/min).
>Automated finger cleaner ensures long finger life.
Spray Fluxer
>SMC cylinder(Stepper motor is option) driven spray fluxer for computer controlled model
>Specially designed air knife can prevent the flux from entering the preheating zone causing fire and remove excessive flux.
>Flux and air flow can be adjusted via the control panel.
Brand New Lead-free Solder Pot
>Brand new lead-free dual wave solder pot, temperature difference between the two waves is less than 30℃.
>Minimized solder oxidation, automated solder dross collection(patent technology).
>Optimized solderability for lead-free process.
Cooling System
>Standard Turbine blower.
| Specifications | C350(3 Preheating Zone) |
| Dimension:L*W*H(mm) | 4200 X 1620 X 1700 |
| Weight(kg) | Approx.1900kg |
| Power Supply | 3P5W,380/220V 50Hz 63A |
| Startup Power (kw) | 23kw |
| Operation Power Consumption | 8kw |
| Control System | Lenovo Computer+Siemens PLC |
| Spray System | |
| Transmission Methed | Air Cylinder/Step Motor(option) |
| Spray Pressure | 0.25Mpa--0.4Mpa |
| Flux flow | 10--100ml/min |
| Auto Fill Flux | Standard |
| Exhaust Methed | Up & Down Exhaust |
| Exhaust Ducting Diameter | Φ200mm |
| Exhaust Capacity | 25m3/min |
| Preheating System | |
| Preheating Mode | IR Tube |
| Control Mode | PID + SSR |
| Preheating Zoon Number | 3 |
| Preheating Length | 1600mm |
| Preheating Temp. | Room Temperature-250℃ |
| Warm-up Time(min) | Approx.15min (setting 150℃) |
| Conveyor System | |
| PCB Width (L X W)(mm) | Min:80x60mm; Max:400x300mm |
| Conveyor Direction | L→R;(R→L)option |
| Conveyor Speed(mm/min) | 0-2000 |
| Conveyor Height (mm) | 750+/-20 |
| Available Component Height(mm) | Top120mm/Bottom15mm |
| Conveyor Speed Control Mode | Closed Loop |
| Finger | Quick-change Finger(standard) |
| Conveyor Width Control | Manual |
| Conveyor Angle | 4~7angle |
| Soldering System | |
| Solder Pot Style | Motor Drive |
| Solder Pot Material | Full Titanium ( standard) |
| Wave Height Adjust | Digital Control by PC+Inverter |
| Solder Pot Temperature | 300℃ |
| Solder Pot Capacity | Lead-free 350kg |
| Wave Drive Power | 220v 2kw |
| Solder Por Warm-up Temperature | Approx.180min(setting 250℃) |
| Cooling System | |
| Cooling Method | Forced Air/Airchiller(option) |
| Other | |
| Finger Cleaning System | Brush |
| Option | |
| Centrer Support | Option |
| Top Heating | Option |
| Ups Protection | Option |
| Nitrogen Device | Option |

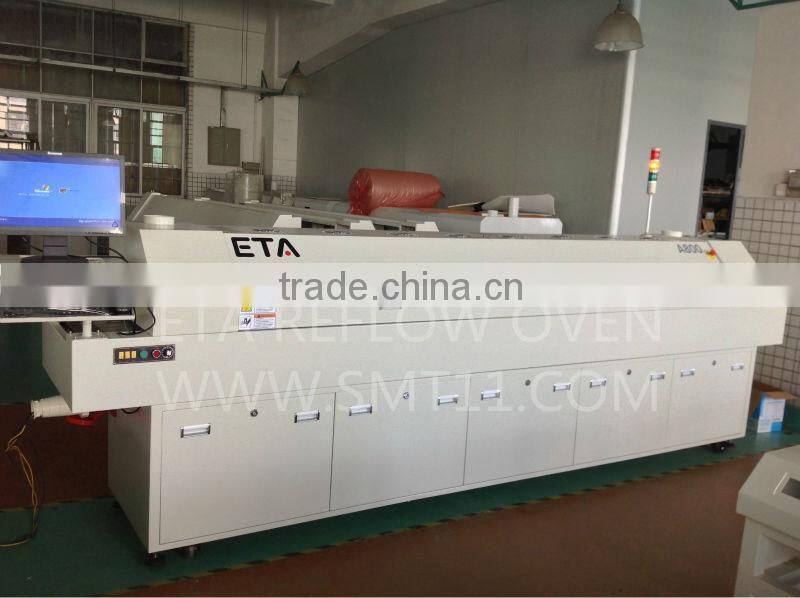

6 Zones /8 Zones Lead Free Reflow Oven for SMT Soldering
SMT/LED Semi-auto and full-auto Printer

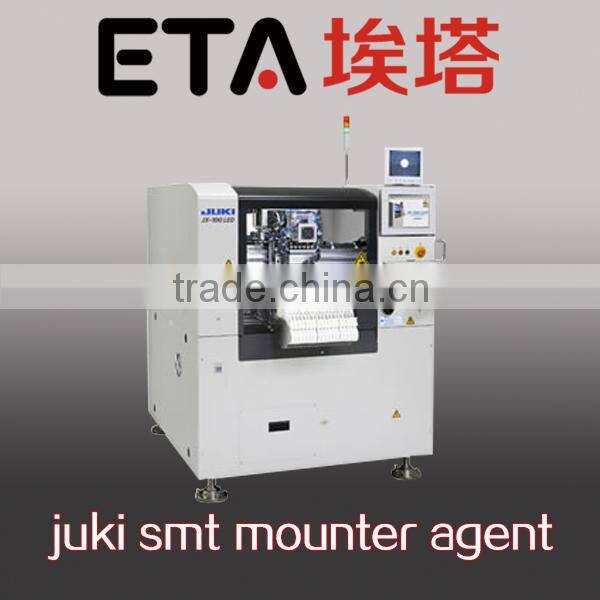

LED Mounter Agent

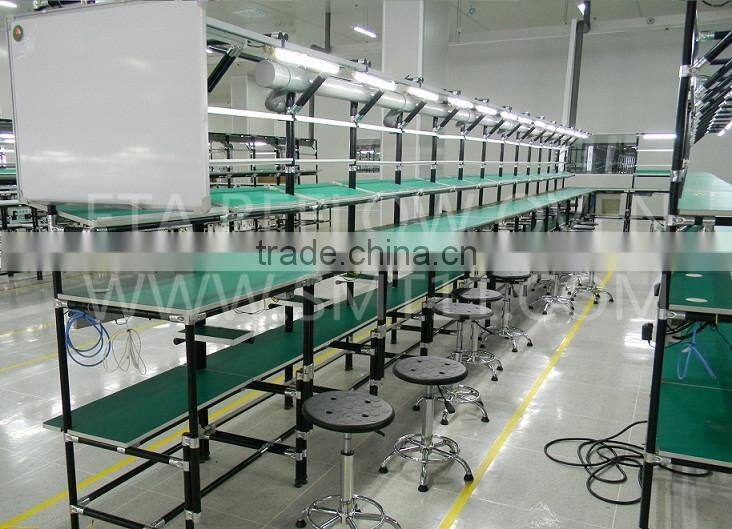

Wave solding machine and line
ETA is the leading SMT factory solution provider in China,offering professional SMT factory building advice and service.We have 20 year experience about SMT factories,offering full solutions for global clients with our great advantaged sources.Our core technology team members are well experienced in SMT filed, learning experience from top international chip mounters meanwhile increasing independent research and development. Currently ETA SMT equipment is representative of high quality , has maintained absolute leading technology in the industry.
Over the years the company has been committed to improving technology, quality and perfect service. ETA makes a positive contribution to international standard,the annual total capacity of 1200 sets, passed the ISO9001: 2000, ISO14000, CE, UL, RoHS and other certifications. Full implementation of the IPD process, reliable design and testing throughout the entire product life cycle.ETA’s continued investment in research and development and great contribution has been unanimously recognized in the field. By the end of 2012, ETA has declared more than 30 patents and software copyrights (including four invention patents), and actively involved in a number of national and industry standards. ETA provides more advanced products and fast technical support for global customers, at home and abroad.
Packaging: Wooden case in container
Shipping: Export from Shenzhen by sea
After-sales service:
1.Pre-consultation: provides professional SMT solutions for the full line.
2.Factory Warranty: One-year warranty factory service.
3.Installation: On-site installation and commissioning, to ensure smooth production
4. Technical Training: provides professional training from Level 1 to Level 3
5.Technical support:provides 7 * 24 technical support
6.Software Upgrade: offers lifetime free software upgrades for all products
