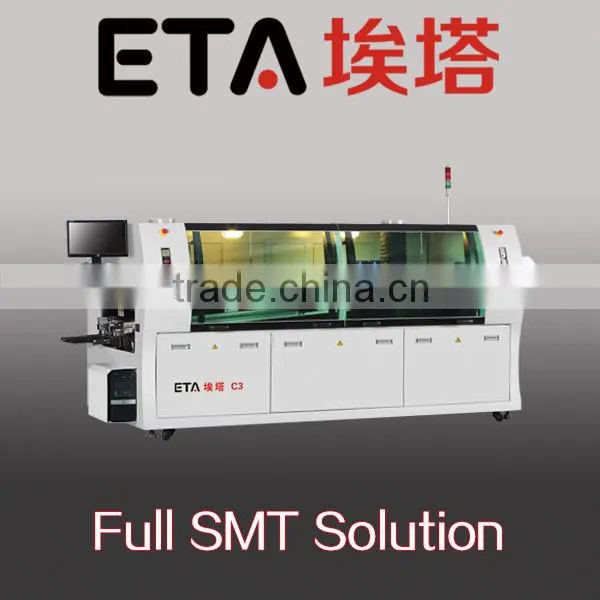

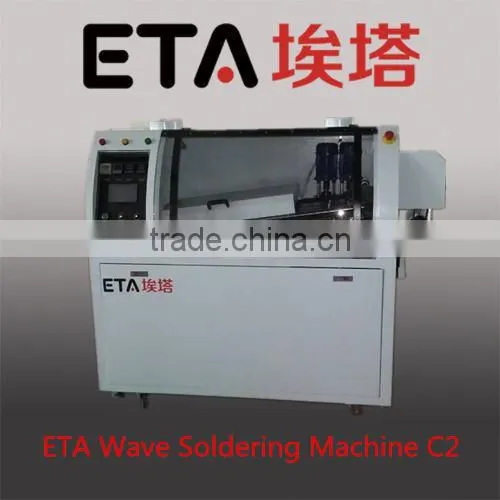

C series lead-free wave soldering machine,after many years market testing, is ETA’s mature product, C series lead-free wave soldering machine has long-term positive feedback from customers. Its unparalleled heating performance and temperature control system meet the requirements of various welding processes, especially energy saving design has been a leading-edge product advantage, maximum reducing the using cost for customers.
Control System
> PC control system with windows based control software.
>Lenovo Computer and Siemens PLC
Preheaters System—Patented Heating Plate
>4 independent heating modules (overall length:1.8m), each consists of patented
>Preheating zone with heating tube(3zone) and forced hot air convection(1zone) ensures the best flux activation temperature and activation time.
Distortion-free Conveyor System
>Chain type entrance guides.
>Enhanced titanium finger conveyor is of high elasticity and is distortion-free.
>The conveyor system is steady and safe with adjustable speed (100-2000mm/min).
>Automated finger cleaner ensures long finger life.
Spray Fluxer
>SMC cylinder(Stepper motor is option) driven spray fluxer for computer controlled model
>Specially designed air knife can prevent the flux from entering the preheating zone causing fire and remove excessive flux.
>Flux and air flow can be adjusted via the control panel.
Brand New Lead-free Solder Pot
>Brand new lead-free dual wave solder pot, temperature difference between the two waves is less than 30℃.
>Minimized solder oxidation, automated solder dross collection( patent technology).
>Optimized solderability for lead-free process.
Cooling System
>Standard Turbine blower.
TOP Advantage:
1.Simple: combined with advanced international concepts, based on the Oriental-designed operating system, easy to understand, easy to learn, easy to maintain.
2.Expertise: learn imported reflow oven’s advanced design concepts, and the machine core components are using imported top brands.
3.Hedging: Import hardware configuration,low failure rate in production,more than a decade service life.
4.Safety: Based on the general rules of international design, close to imported reflow rating, the highest security level.
5.Stable: mature software, hardware and top production processes ensures stability of each equipment.
|
ETA Lead Free Wave soldering machine Specifications | |||||||
Specifications |
C4 |
C3 |
C2 |
C1 |
|||
Dimension:L*W*H(mm) |
4200 X 1250 X 1500 |
3600 X 1250 X 1500 |
2100 X 900 X 1500 |
2000 X 1250 X 1500 |
|||
Weight(kg) |
Approx.2100kg |
Approx.1800kg |
Approx.1500kg |
Approx.900kg |
|||
Power Supply |
3P5W,380/220V 50Hz |
3P5W,380/220V 50Hz |
3P5W,380/220V 50Hz |
3P5W,380/220V 50Hz |
|||
Startup Power |
28kw |
24kw |
18kw |
15kw |
|||
Operation Power Consumption |
10kw |
8kw |
6kw |
4kw |
|||
Control System |
PLC |
PLC |
PLC |
PLC |
|||
Spray System |
|||||||
Transmission Method |
Air cylinder/step motor(option) |
||||||
Spray Pressure |
0.25Mpa--0.4Mpa |
||||||
Flux flow |
10--100ml/min |
||||||
Exhaust Ducting Diameter |
Φ200mm |
||||||
Exhaust Capacity |
25m3/min |
||||||
Preheating System |
|||||||
Preheating Mode |
IR tube/Hot air is option |
||||||
Control Mode |
PID + SSR |
||||||
Preheating Zone Number |
4 |
3 |
2 |
1 |
|||
Preheating Length |
1800mm |
1600mm |
700mm |
350mm |
|||
Preheating Temp. |
(Room Temperature)-250 degree |
||||||
Warm-up Time(min) |
Approx.15min (setting 150 degree) |
||||||
Conveyor System |
|||||||
PCB Width (L X W)(mm) |
Min:80x60mm; Max:300x300mm |
Min:80x60mm; Max:300x300mm |
Min:80x60mm; Max:200x300mm |
Min:80x60mm; Max:200x300mm |
|||
Conveyor Speed(mm/min) |
0-2000 |
||||||
Conveyor Height (mm) |
750+/-20 |
||||||
Finger |
Double hook claw (Standard) |
||||||
Conveyor width control |
Manually |
||||||
Conveyor Angle |
4~7degree |
||||||
Soldering System |
|||||||
Solder Pot style |
Mechanical Motor drive |
||||||
Solder Pot Material |
Full Titanium (Standard FT) |
||||||
solder pot temperature |
300 degree |
||||||
solder pot capacity |
Lead-free 400kg |
Lead-free 300kg |
Lead-free 200kg |
Lead-free 100kg |
|||
Other |
|||||||
finger cleaning system |
brush |
||||||
After-sales service:
1.Pre-consultation: provides professional SMT solutions for the full line.
2.Factory Warranty: One-year warranty factory service.
3.Installation: On-site installation and commissioning, to ensure smooth production
4. Technical Training: provides professional training from Level 1 to Level 3
5.Technical support:provides 7 * 24 technical support
6.Software Upgrade: offers lifetime free software upgrades for all products
