Shenzhen ETA E350 Wave Soldering Machine

US$ 10,000 - 20,000 MOQ: 1 Set

Key Specifications

Business Type:

Manufacturer, Trading Company, Agent

Year Established:

2012

Factory Size:

3,000-5,000 square meters

Shenzhen ETA Electronic Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

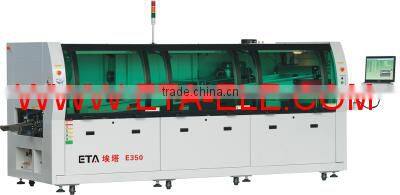

ETA E350 Wave Soldering machine

Details

Control System

> PC control system with windows based control software.

>Lenovo Computer and Siemens PLC

Preheaters System—Patented Heating Plate

>4 independent heating modules (overall length:1.8m), each consists of patented

>Preheating zone with heating tube(3zone) and forced hot air convection(1zone) ensures the best flux activation temperature and activation time.

Distortion-free Conveyor System

>Chain type entrance guides.

>Enhanced titanium finger conveyor is of high elasticity and is distortion-free.

>The conveyor system is steady and safe with adjustable speed (100-2000mm/min).

>Automated finger cleaner ensures long finger life.

Spray Fluxer

>SMC cylinder(Stepper motor is option) driven spray fluxer for computer controlled model

>Specially designed air knife can prevent the flux from entering the preheating zone causing fire and remove excessive flux.

>Flux and air flow can be adjusted via the control panel.

Brand New Lead-free Solder Pot

>Brand new lead-free dual wave solder pot, temperature difference between the two waves is less than 30℃.

>Minimized solder oxidation, automated solder dross collection(patent technology).

>Optimized solderability for lead-free process.

Cooling System

>Standard Turbine blower.

Specifications	E350(4 Preheating Zone)
Dimension:LWH(mm)	4600 X 1620 X 1700
Weight(kg)	Approx.2300kg
Power Supply	3P5W,380/220V 50Hz 63A
Startup Power (kw)	26kw
Operation Power Consumption	10kw
Control System	Lenovo Computer+Siemens PLC
Spray System
Transmission Methed	Air Cylinder/Step Motor(option)
Spray Pressure	0.25Mpa--0.4Mpa
Flux flow	10--100ml/min
Auto Fill Flux	Standard
Exhaust Methed	Up & Down Exhaust
Exhaust Ducting Diameter	Φ200mm
Exhaust Capacity	25m³/min
Preheating System
Preheating Mode	IR Tube(3zone)+Hot Air(1zone)
Control Mode	PID + SSR
Preheating Zoon Number	4
Preheating Length	1800mm
Preheating Temp.	Room Temperature-250℃
Warm-up Time(min)	Approx.15min (setting 150℃)
Conveyor System
PCB Width (L X W)(mm)	Min:80x60mm; Max:400x300mm
Conveyor Direction	L→R;(R→L)option
Conveyor Speed(mm/min)	0-2000
Conveyor Height (mm)	750+/-20
Available Component Height(mm)	Top120mm/Bottom15mm
Conveyor Speed Control Mode	Closed Loop
Finger	Quick-change Finger(standard)
Conveyor Width Control	Manual
Conveyor Angle	4~7angle
Soldering System
Solder Pot Style	Motor Drive
Solder Pot Material	Full Titanium ( standard)
Wave Height Adjust	Digital Control by PC+Inverter

Solder Pot Temperature	300℃
Solder Pot Capacity	Lead-free 400kg
Wave Drive Power	220v 2kw
Solder Por Warm-up Temperature	Approx.180min(setting 250℃)
Cooling System
Cooling Method	Forced Air/Airchiller(option)
Other
Finger Cleaning System	Brush
Option
Centrer Support	Option
Top Heating	Option
Ups Protection	Option
Nitrogen Device	Option
