wave soldering machine
- 100 Set / Sets per Month
- shenzhen or hongkong
- T/T Credit Card PayPal
- Hot sale products Automatic Soldering Machine Auto Quick Mini Robotic for PCB Electronic Products
- Automatic Soldering Machine Auto Quick Mini Robotic for PCB Electronic Products
- Automatic Soldering Machine for LED strip light Products
- Hot sale products Desktop automatic Automatic Soldering Machine for PCB Electronic Products
- Table top four axis soldering machinery and equipment plane side spot welding drag welding temperature record soldering machine
- LED light with three axis soldering machine PCB circuit board soldering machine FPC automatic soldering equipment
Product Details
Condition: | New | Place of Origin: | Guangdong, China | Usage: | SMT |
After-sales Service Provided: | Overseas service center available |
Product Description
C series lead-free wave soldering machine,after many years market testing, is ETA’s mature product, C series lead-free wave soldering machine has long-term positive feedback from customers. Its
unparalleled heating performance and temperature control system meet the requirements of various welding processes, especially energy saving design has been a leading-edge product advantage, maximum reducing the using cost for customers.
Control System

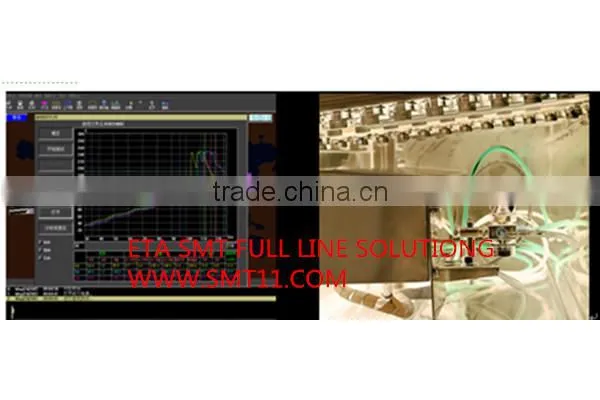

> PC control system with windows based control software.
>Lenovo Computer and Siemens PLC
Preheaters System—Patented Heating Plate
>4 independent heating modules (overall length:1.8m), each consists of patented
>Preheating zone with heating tube(3zone) and forced hot air convection(1zone) ensures the best flux activation temperature and activation time.
Distortion-free Conveyor System
>Chain type entrance guides.
>Enhanced titanium finger conveyor is of high elasticity and is distortion-free.
>The conveyor system is steady and safe with adjustable speed (100-2000mm/min).
>Automated finger cleaner ensures long finger life.
Spray Fluxer
>SMC cylinder(Stepper motor is option) driven spray fluxer for computer controlled model
>Specially designed air knife can prevent the flux from entering the preheating zone causing fire and remove excessive flux.
>Flux and air flow can be adjusted via the control panel.
Brand New Lead-free Solder Pot
>Brand new lead-free dual wave solder pot, temperature difference between the two waves is less than 30℃.
>Minimized solder oxidation, automated solder dross collection( patent technology).
>Optimized solderability for lead-free process.
Cooling System
>Standard Turbine blower.
Features:
1.Nozzle: Japan Kuroda Seiko nozzles, adjustable atomizing area, ensuring the long time spray uniformity and reliability.
2.Pneumatic components: Japan SMC pneumatic components and other import brands,ensuring gas supply accurate and steady.
3.Spray control: computer control or manually adjust switch, precise control the spray time, spray speed, economy and environmental protection, digital FLUX flow, spray flow, angle, density, width and other parameters can be recorded.
4.Cleaning device: automatic cleaning, modular design, easy maintenance.
5.Temperature Protection:ETA using third-party over-temperature protection, multiple protection layers to ensure safe operation.
6.Products comply with CE, CCC, UL and other standards and specifications.
7.User-friendly design: fault detection (such as heaters abnormal alarm, etc.), regular maintenance reminders,economy functions, emergency manual transmission function and tool-free maintenance, reduce equipment failure rates.
8.Heating module: horizontal reflow design makes each heating zones not influenced by adjacent zones to ensure accurate temperature curve, while ensuring high production capacity and heat exchange capacity, and achieve high adaptive capacity (to meet the soldering of automotive electronics, communications, electronics, computers and mobile phones, and other consumer electronics.).
9.Moving parts: Computer adjustment, stepper motor control, accuracy and stability, to ensure accurate spray.
10.Temperature control: PLC + PID independent temperature control, real-time monitoring preheat temperature.
11.Core components: using imported components to ensure long-term stability of equipment operation, reduced maintenance costs.
12.Customers can choose different configurations of flux processing system according to their own production characteristics, to ensure the furnace hall clean.
13.Closed-loop transmission speed control systems, transportation control accuracy ± 2mm / min, ensuring the transmission speed more stable.
14.Dross Collection: Automatic dross return channel,the most energy-efficient channel design, minimizing the amount of oxidation.
ETA Lead Free Wave soldering machine Specifications | |||||||
Specifications | C4 | C3 | C2 | C1 | |||
Dimension:L*W*H(mm) | 4200 X 1250 X 1500 | 3600 X 1250 X 1500 | 2100 X 900 X 1500 | 2000 X 1250 X 1500 | |||
Weight(kg) | Approx.2100kg | Approx.1800kg | Approx.1500kg | Approx.900kg | |||
Power Supply | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz | |||
Startup Power | 28kw | 24kw | 18kw | 15kw | |||
Operation Power Consumption | 10kw | 8kw | 6kw | 4kw | |||
Control System | PLC | PLC | PLC | PLC | |||
Spray System | |||||||
Transmission Method | Air cylinder/step motor(option) | ||||||
Spray Pressure | 0.25Mpa--0.4Mpa | ||||||
Flux flow | 10--100ml/min | ||||||
Exhaust Ducting Diameter | Φ200mm | ||||||
Exhaust Capacity | 25m3/min | ||||||
Preheating System | |||||||
Preheating Mode | IR tube/Hot air is option | ||||||
Control Mode | PID + SSR | ||||||
Preheating Zone Number | 4 | 3 | 2 | 1 | |||
Preheating Length | 1800mm | 1600mm | 700mm | 350mm | |||
Preheating Temp. | (Room Temperature)-250 degree | ||||||
Warm-up Time(min) | Approx.15min (setting 150 degree) | ||||||
Conveyor System | |||||||
PCB Width (L X W)(mm) | Min:80x60mm; Max:300x300mm | Min:80x60mm; Max:300x300mm | Min:80x60mm; Max:200x300mm | Min:80x60mm; Max:200x300mm | |||
Conveyor Speed(mm/min) | 0-2000 | ||||||
Conveyor Height (mm) | 750+/-20 | ||||||
Finger | Double hook claw (Standard) | ||||||
Conveyor width control | Manually | ||||||
Conveyor Angle | 4~7degree | ||||||
Soldering System | |||||||
Solder Pot style | Mechanical Motor drive | ||||||
Solder Pot Material | Full Titanium (Standard FT) | ||||||
solder pot temperature | 300 degree | ||||||
solder pot capacity | Lead-free 400kg | Lead-free 300kg | Lead-free 200kg | Lead-free 100kg | |||
Other | |||||||
finger cleaning system | brush |
Packageing Details : wooden case or customised package
Delivery Details: 20 workingdays
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within10 working days after the receipt of payment. If you are in urgent need of it,please kindly tell us.
1.Pre-consultation: provides professional SMT solutions for the full line.
2.Factory Warranty: One-year warranty factory service.
3.Installation: On-site installation and commissioning, to ensure smooth production.
4. Technical Training: provides professional training from Level 1 to Level 3.
5.Technical support:provides 7 * 24 technical support.
6.Software Upgrade: offers lifetime free software upgrades for all products.
ETA is the leading SMT factory solution provider in China,offering professional SMT factory building advice and service.We have 20 year experience about SMT factories,offering full solutions for global clients with our great advantaged sources.Our core technology team members are well experienced in SMT filed, learning experience from top international chip mounters meanwhile increasing independent research and development. Currently ETA SMT equipment is representative of high quality , has maintained absolute leading technology in the industry.
Over the years the company has been committed to improving technology, quality and perfect service. ETA makes a positive contribution to international standard,the annual total capacity of 1200 sets, passed the ISO9001: 2000, ISO14000, CE, UL, RoHS and other certifications. Full implementation of the IPD process, reliable design and testing throughout the entire product life cycle.ETA’s continued investment in research and development and great contribution has been unanimously recognized in the field. By the end of 2012, ETA has declared more than 30 patents and software copyrights (including four invention patents), and actively involved in a number of national and industry standards. ETA provides more advanced products and fast technical support for global customers, at home and abroad.
1. Quick response within 24 hours.
2. On time delivery.
3. Techinical support before and after sales.
Thanks for choosing ETA.
ETA looks forward to win-win cooperation.
