Mini Wave Soldering Machine - Factory Price - Easy Operate C2

Shenzhen ETA Electronic Equipment Co., Ltd.
Mini Wave Soldering Machine - Factory Price - Easy Operate C2 thumbnail-1
Mini Wave Soldering Machine - Factory Price - Easy Operate C2 thumbnail-2
Mini Wave Soldering Machine - Factory Price - Easy Operate C2 thumbnail-3
Mini Wave Soldering Machine - Factory Price - Easy Operate C2 thumbnail-4
Mini Wave Soldering Machine - Factory Price - Easy Operate C2 thumbnail-5
Mini Wave Soldering Machine - Factory Price - Easy Operate C2 thumbnail-6
Mini Wave Soldering Machine - Factory Price - Easy Operate C2 photo-1
Mini Wave Soldering Machine - Factory Price - Easy Operate C2 photo-2
Mini Wave Soldering Machine - Factory Price - Easy Operate C2 photo-3
Mini Wave Soldering Machine - Factory Price - Easy Operate C2 photo-4
Mini Wave Soldering Machine - Factory Price - Easy Operate C2 photo-5
Mini Wave Soldering Machine - Factory Price - Easy Operate C2 photo-6
US$ 6,000 - 12,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
China
Brand Name:
ETA
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
HONGKONG Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin China
Brand Name ETA
Model Number ETA C2
Rated Duty Cycle 2
Rated Capacity 350
Voltage 380V
Current 60A
Dimensions 4200*1350*1450
Weight 1450
Certification ISO/CE/CCC
Usage WAVE SOLDERING MACHINE
After-sales Service Provided Engineers available to service machinery overseas

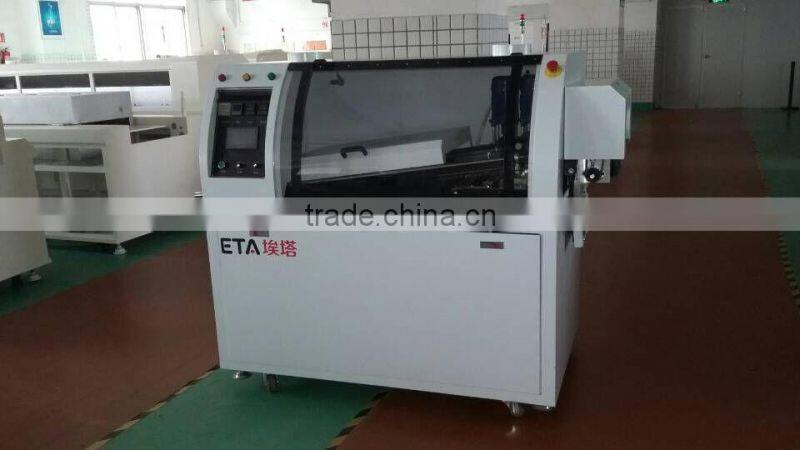

mini wave soldering machine - factory price - easy operate C2

mini wave soldering machine - factory price - easy operate C2mini wave soldering machine - factory price - easy operate C2

mini wave soldering machine - factory price - easy operate C2

mini wave soldering machine - factory price - easy operate C2mini wave soldering machine - factory price - easy operate C2

Distortion-free Conveyor System

>Chain type entrance guides.

>Enhanced titanium finger conveyor is of high elasticity and is distortion-free.

>The conveyor system is steady and safe with adjustable speed (100-2000mm/min).

>Automated finger cleaner ensures long finger life.

Spray Fluxer

>SMC cylinder(Stepper motor is option) driven spray fluxer for computer controlled model

>Specially designed air knife can prevent the flux from entering the preheating zone causing fire and remove excessive flux.

>Flux and air flow can be adjusted via the control panel.

Brand New Lead-free Solder Pot

>Brand new lead-free dual wave solder pot, temperature difference between the two waves is less than 30℃.

>Minimized solder oxidation, automated solder dross collection( patent technology).

>Optimized solderability for lead-free process.

Cooling System

>Standard Turbine blower.



ETA Lead Free Wave soldering machine

Specifications

Specifications

C4

C3

C2

C1

Dimension:L*W*H(mm)

4200 X 1250 X 1500

3600 X 1250 X 1500

2100 X 900 X 1500

2000 X 1250 X 1500

Weight(kg)

Approx.2100kg

Approx.1800kg

Approx.1500kg

Approx.900kg

Power Supply

3P5W,380/220V 50Hz

3P5W,380/220V 50Hz

3P5W,380/220V 50Hz

3P5W,380/220V 50Hz

Startup Power (kw)

28kw

24kw

18kw

15kw

Operation Power Consumption

10kw

8kw

6kw

4kw

Control System

PLC

PLC

PLC

PLC

Spray System



Transmission Methed

Air cylinder/step motor(option)

Spray Pressure

0.25Mpa--0.4Mpa

Flux flow

10--100ml/min

Exhaust Ducting Diameter

Φ200mm

Exhaust Capacity

25m3/min

Preheating System



Preheating Mode

 IR tube/Hot air is option

Control Mode

PID + SSR

Preheating Zone Number

4

3

2

1

Preheating Length

1800mm

1600mm

700mm

350mm

Preheating Temp.

(Room Temperature)-250 degree

Warm-up Time(min)

Approx.15min (setting 150 degree)

Conveyor System



PCB Width (L X W)(mm)

Min:80x60mm; Max:300x300mm

Min:80x60mm; Max:300x300mm

Min:80x60mm; Max:200x300mm

Min:80x60mm; Max:200x300mm

Conveyor Speed(mm/min)

0-2000

Conveyor Height (mm)

750+/-20

Finger

Double hook claw (Standard)

Conveyor width control

Manually

Conveyor Angle

4~7degree

Soldering System



Solder Pot style

Mechanical Motor drive

Solder Pot Material

 Full Titanium (Standard FT)

solder pot temperature

300 degree

solder pot capacity

Lead-free 400kg

Lead-free 300kg

Lead-free 200kg

Lead-free 100kg

Other



finger cleaning system

 brush
