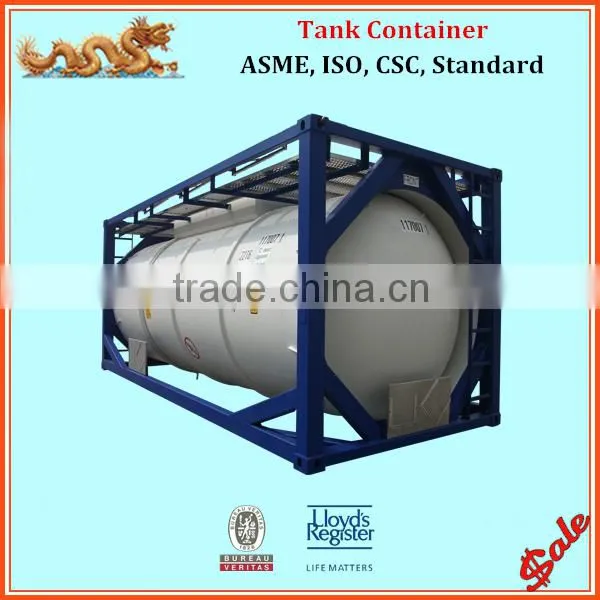

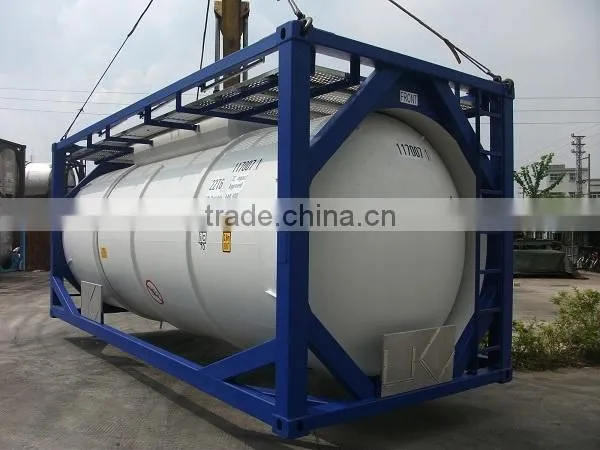

ASME standard 20ft T14 Rubber lined tank container
Rubber lined tank container:
Also known as liquid tank containers, the rubber lined tank container is used for the transportion of food, pharmaceuticals, chemicals and other liquid cargo and manufacturing. there is a tank fixed on the frame. when loading cargoes, it is filled from the top, when discharging, it can be unload from the top & the bottom.
- 20’ ISO full frame collar tank
- UN portable Tank Type T14 with butyl rubber lining
- For holding corrosive liquid, like HCL.
| Specification | 20ft ISO frame, UN portable tank | |
| Dimension | M | FT |
| Frame dimensions | 6.058 x 2.438 x 2.591 m | 20' x 8' x 8'6'' |
| Capacity | Liter | US Gallon |
| Nominal capacity | 21000 | 5,548 |
| Weight | KGS | LBS |
| Max Gross Weight | 36,000 | 79366 |
| Tare weight (approx) | 4,800 | 10,582 |
| Pressure | Bar | PSI |
| Working pressure | 4 | 58 |
| Test pressure | 6 | 87 |
| Temperature | ||
| Design temperature | -40°C to +65°C | -40°F to + 149°F |
| Material | ||
| Lining material | Butyl rubber |
|
| Frame material | GB/T 1591-Q345D | |
| Construction standard & approval | ||
| Vessel design code | ASME VIII Div 1 | |
| Standard | IMDG T14, ADR/RID, CSC, TC, TIR, ISO, UIC, US/UK DOT |
|
| Approvals | Lloyds or BV Construction Certificate. | |
Package: Non - package requirements for rubber lined tank container, SOC container
Shipping: deliver to most ports worldwide.
- Widely range of shipping containers: 4ft 5ft 6ft 7ft 8ft 9ft 10ft 20ft 40ft 45ft, 53ft etc.
- Reefer container: 8ft 10ft 20ft 40ft onshore & offshore reefer container.
- Special container type: open side, open top, flat rack, platform container, etc.
- Shipping container spare parts: corner castings, rubber gasket, door locking device, hinge set, rails, panels, etc.
- Tank container: LNG, LPG, offshore tank, chemical tank, milk tank container, etc.
- Our service: OEM service, SOC service, one trip (way) service, etc.
LongTeng Industrial Co., Ltd, established in 2005, is a professional Container & Parts manufacturer in China. After 10 years development, now we are a group company and have below 3 branches:
- LongTeng Industrial Co., Limited
- TianJin LongTeng Steel Structure Co., Limited
- Tianjin LongTeng International Co., Limited
Our factory -- rubber lined tank container:
Q: how about your product quality? any Approval?
Rubber lined tank container is made of high quality material, and has main Classification Society Approval, like BV, LR,
Q: What about the payment terms?
Our payment term is based on your order amount.
Usually we accept 40%T/T in advance, the balance before shipment.
Q: Small order whether you could accept?
Our MOQ is 1pc for milk tank container.
Q: What about delivery date?
This is based on your quantity & container tyep. For small quantity and standard container, we have in stock at all Main Chinese port, shipment date: 7-10 days. For large quantity or special type, have to reconfirm.
Q: if we have cargo in China, I want order one container to load them, how to operate it?
If you have cargo in China, you only pick our container up instead of shipping company's container, and then load your goods, and arranging clearance custom, and export it like normally do. That is very easy and convenient.
