20ft LPG T50 Tank Container
Material: Q345-D-GB/T1591 (frame work, plates, rolled section), Modified P460 NL 1 normalized (shell & heads)
Standard: IMDG, RID/ADR, ASME VII DIV2, CFR 48, USDOT (BYSP), TIR, UIC, CSC, TC, UKDFT, FRAType: Vertically Mounted & Horizontal Mounted
- Certificate: csc certificate like GL/LR/BV/ABS
- Design Temperature: 55°C (131°F)
- AmbientTemperature:-40°C----+55°C (-40°F to 131° F)
- Main Medium: LPG

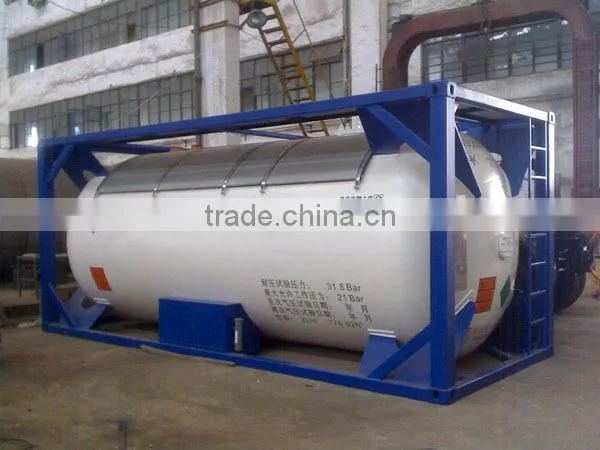

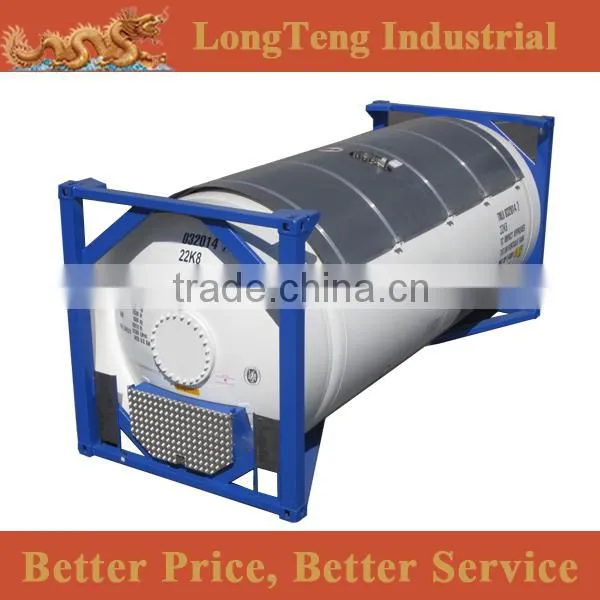

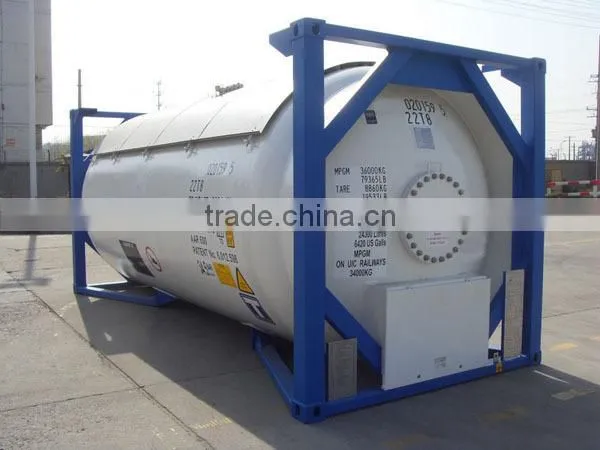

20ft LPG ISO Tank Container
Detail Display
LPG Tank Container Dimension
20ft LPG ISO Tank Container | |||
Dimension |
Outside Dimension |
6058x2438x2591mm |
20'x8'x8'6" |
Internal Diameter |
2377mm |
93.583 in |
|
Design Temperature |
55°C |
131°F |
|
Tare Weight |
9350 kg |
20613lbs |
|
MPGM |
36000 kg |
79365 lbs |
|
Capacity |
24100 |
6367 US GAL |
|
Pressure & Temperature |
Maximum Allowable Working Pressure |
22.0 Bar |
319.0 psig |
Hydrostatic Test Pressure |
30.0 bar |
435.0 psig |
|
External Design Pressure |
1.0 Bar |
14.5 psig |
|
Ambient Temperature Range |
-40°C---+55°C |
-40°F--+131°F |
|
Material |
Framework |
EN 10210 S355 J2H/Super form TM380 |
|
Corner Casting |
Casting Steel ISO standard 1161 |
||
Shell |
SA 612 Normalized |
||
Heads |
SA 612 Normalized |
||
Standard |
in accordance with IMDG CFR 49, RID/ADR ASME VIII DIV 1 |
||
Certificate |
LR/BV/ABS/GL csc certificate |
||
Packaging: non pakcaging requirement for T50 tank container.
Shipping: ship by bull ship or roll ship
- New ISO tank container with csc certificate
- DesignTank Container as per Your Request
- 30 days’ free store in our CY.
- a wide range of shipping container & container spare parts
- One-stop purchasing and sufficient stock
Q: Which Certificate do you offer?
A: our ISO tank container approvals of main classification societies like ABS, CCS, GL, BV and also
in accordance with IMDG, RID/ADR, ASME VII DIV2, CFR 48, USDOT (BYSP), TIR, UIC, CSC, TC, UKDFT, FRA
Q:Can a tank container be manufactured to my specifications?
A: we make a range of tanks designed for numerous applications. However, tanks can be manufactured and modified to meet individual requirements.
Q: What's your MOQ?
A: 1 piece for 20ft LPG ISO tank container T50.
Q: What's your payment terms?
A: We accept T/T, L/C, D/P, western union. L/C is only for large order.
