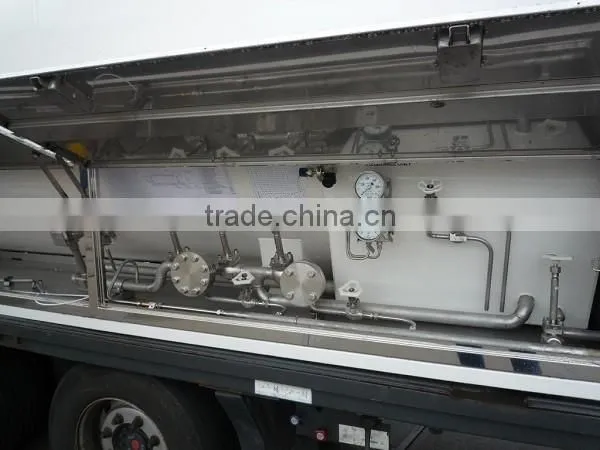

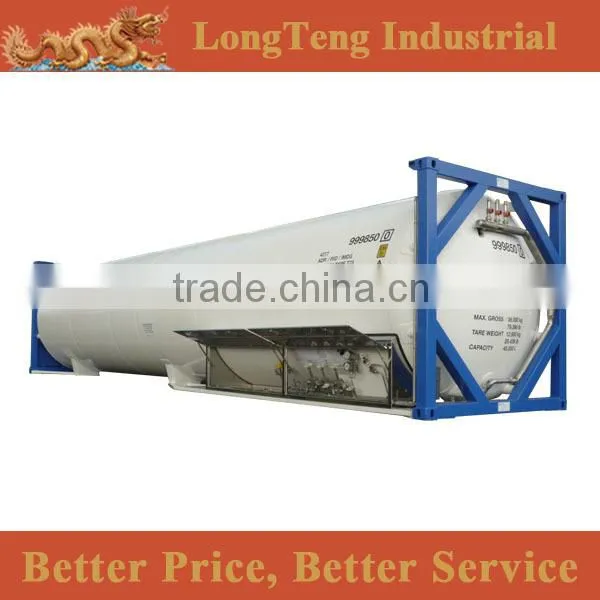

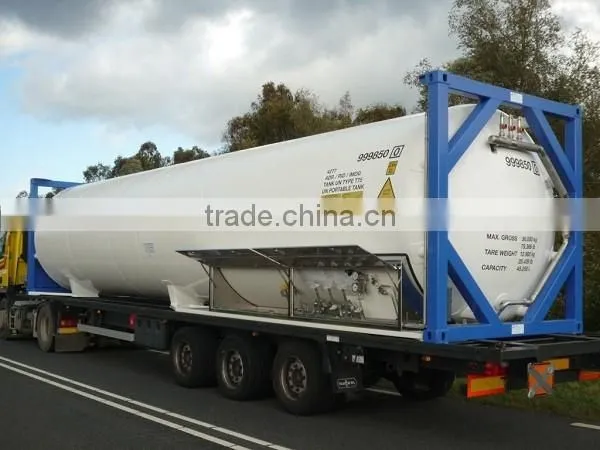

ASME standard T75 40ft cryogenic gas tank container for LNG and Ethylene
40ft lng tank container
- Material: Frame: Q345D vessel: stainless steel
- Capacity: 45000 liters
- Insulation: High vacuum multi-layers spiral wound insulation.
- T75 cryogenic tank container
- Approvals by Lloyd's Register,BV
- Holding times under perfect conditions: LNG: 85 days at 82% fill, 10 days at 98% fill
| Specification | 40ft ISO frame, T75 lng tank container | |
| Dimension | M | FT |
| Frame dimensions | 12.192 x 2.438 x 2.591 m | 40' x 8' x 8'6'' |
| Capacity | Liter | US Gallon |
| Nominal capacity | 45,000 | 11,888 |
| Weight | KGS | LBS |
| Max Gross Weight | 36,000 | 79,366 |
| Tare weight (approx) | 12,900 | 28,440 |
| Pressure | Bar | PSI |
| working pressure | 10 | 145 |
| Test pressure | 14.3 | 207 |
| Material | ||
| Vessel material | Stainless steel |
|
| Frame material | GB/T 1591-Q345D | |
| Construction standard & approval | ||
| Vessel design code | ASME VIII Div 1 | |
| Standard | IMDG T75, UN portable tank, ADR/RID, CSC, TIR |
|
| Approvals | Lloyds or BV Construction Certificate. | |
Package: Non - package requirements for 40ft LNG tank container, SOC container
Shipping: deliver to most ports worldwide.
- Widely range of shipping containers: 4ft 5ft 6ft 7ft 8ft 9ft 10ft 20ft 40ft 45ft, 53ft etc.
- Reefer container: 8ft 10ft 20ft 40ft onshore & offshore reefer container.
- Special container type: open side, open top, flat rack, platform container, etc.
- Shipping container spare parts: corner castings, rubber gasket, door locking device, hinge set, rails, panels, etc.
- Tank container: LNG, LPG, offshore tank, chemical tank, iso tank container price, etc.
- Our service: OEM service, SOC service, one trip (way) service, etc.
LongTeng Industrial Co., Ltd, established in 2005, is a professional Container & Parts manufacturer in China. After 11 years development, now we are a group company and have below 3 branches:
- LongTeng Industrial Co., Limited
- TianJin LongTeng Steel Structure Co., Limited
- Tianjin LongTeng International Co., Limited
Our factory -- LNG tank container
Q: how about your product quality? any Approval?
LNG tank container are made of high quality material, and has main Classification Society Approval, like BV, LR,
Q: What about the payment terms?
Our payment term is based on your order amount.
Usually we accept 40% T/T in advance, the balance is paid before shipment.
Q: Small order whether you could accept?
Our MOQ is 1pc for LNG tank container
Q: What about delivery date?
The LNG tank container need advanced technology and high quality material, so the production date need long time to manufacture and tested. will be about 60 ~ 90 days.
Q: if we have cargo in China, I want order one container to load them, how to operate it?
If you have cargo in China, you only pick our container up instead of shipping company's container, and then load your goods, and arranging clearance custom, and export it like normally do. That is very easy and convenient.
