Specifications
1.Spray Booth (Down Draft)2.Size:7050x5250x3600mm
3.Air velocity: 0.25m/s
4.Diesel Burner (Italy RIELLO)

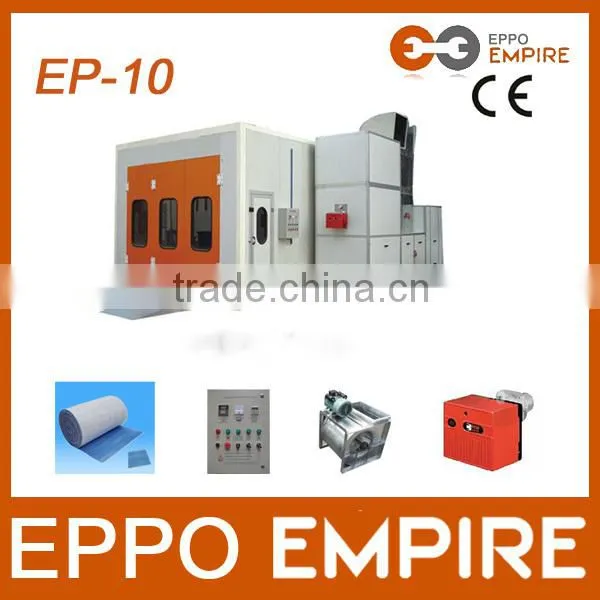

car paint booth EP-10
Dimensions: |
Length (mm) |
Width (mm) |
Height (mm) |
Booth Outside |
7,000 |
5,200 |
3,600 |
Booth Inside |
6,900 |
3,900 |
2,750 |
Entrance Door |
Equipped with Handle & Lock |
3,000 |
2,700 |
Personnel Door |
Equipped with Handle & Anti-Explosion Lock |
800 |
2,000 |
Features: |
Total Power 10.5 KW; 380v/3phase/50hz |
Noise < 80 db |
1. Walls & Ceiling |

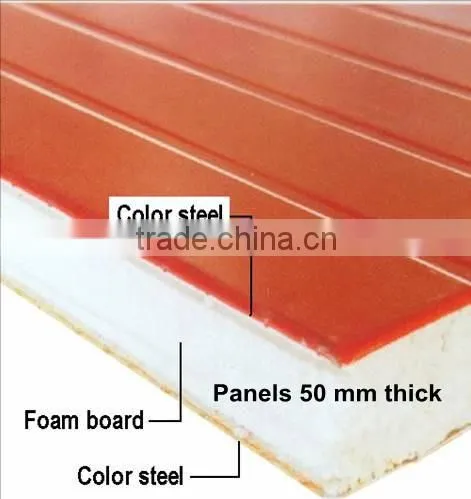

- Panels 50 mm thick, with foam in the middle and color steel on both sides |
|
2. Basement System |
- Metal Pedestal (Galvanized), with Filter Tray* 2rows & Ramps a couple - Grid Plates (Galvanized)* 2rows - Diamond Plates (Powder Coated or Galvanized)* 3rows |
|
3. Heating System |
- Diesel Burner (Italy RIELLO, G10)* 1unit - Heating Exchanger (Stainless Steel material)* 1unit - 8~15 minutes reaching the baking temperature 60~80 degree Celsius - Cabinet (rock-wool insulation) * 1unit; Air Ducts * 2pcs |
|

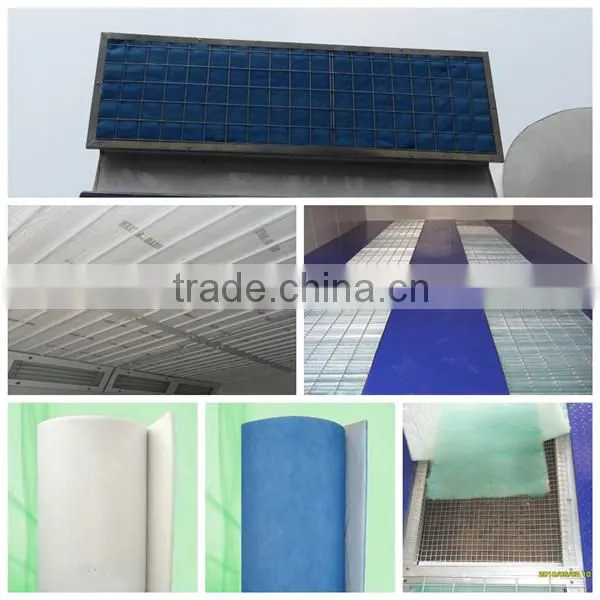

4. Filter System |
- Primary Filter* 1set, filtering rate > 83% - Air-Intake Filter* 1set, filtering rate > 97% - Air-Exhaust Filter* 1set, filtering rate > 70% |
|
5. Air System |
- Air-Intake Fans* 2units, Centrifugal Fans with 4 KW motor each - Air velocity 0.25 m/s - Cabinet for the fans* 1unit, and Air Ducts* 3pcs, and Air Damper (electric)* 1unit |
|
6. Illumination |
- Ceiling Lights * 32pcs, 36w each, with Light Fixtures, anti-explosion design - Side Lights * 32pcs, 36w each, with Light Fixtures, anti-explosion design |
|
7. Control Panel |
- *1unit, including Spray Switch, Baking Switch, Light Switch, Emergency Stop, etc. |
|
** Included |
- All Hardware, Fasteners, and Sealants |
|
EXHIBITION
1.standard container package for sea transportation
2.Packing detail: 20ft container, FCL
1.One year warranty, free for spare parts if you pay for shipping.
2.Service for ever.
3. Special design: can do all special design according your requirement
YANTAI EMPIRE INDUSTRY&TRADE CO.,LTD is a company making efforts to supply quality garage equipments including Frame Machine, Booth, Heater and Burner, lift, Tire Changer, Wheel Balancer,Wheel Aligner, Decoder, Key Programmer, Oil Drainer, Tools Cabinet,Air Compressor, Jack & Stand, Crane, Pressing Machine etc. Also we could supply parts and accessories for auto repairing shops, such as hydraulic cylinder for lifts, turning plate for wheel aligner, weights for wheel balancer etc.
Our products have been selling to worldwide countries as Canada, U.S, Colombia, U.K, Ireland, Sweden, Poland, Finland, Hungary, Norway, The Netherlands, Deutschland, Denmark,Bolivia,
Latvia, Slovenia, UAE, Saudi Arab, Malaysia, Mongolia ec.
From various customers we learnt various experiences in manufacturing applications, and businesses.We have been improved much of the products and are always will to continuously improve.
The buyer who likes us may ask:
Q:Who are you? Trade Company or manufacturer?
A: We are manufacturer and we have our own trade company.
Q: When the product can be delivered?
A: Commonly the lead time will be within 15 days after receiving 30% deposit or L/C,
subject to prior sales.
