High Density PE100 Butt Fusion Fittings
1.Raw material:PE100 or PE80
2.Color:black,yellow or as required
3.Size:please see the following table
4:Connecting way:butt fusion welding
5.Advantage:ODM.OEM
6.Pressure:PN4(SDR33),PN6(SDR21),PN8(SDR17),PN10(SDR13.6),
PN12.5(SDR13.6),PN16(SDR11),PN20(SDR9)
7.Product feature:light weight,high strengh, low resistance,
corrosion resistance,easy installation, long lifespan, low cost

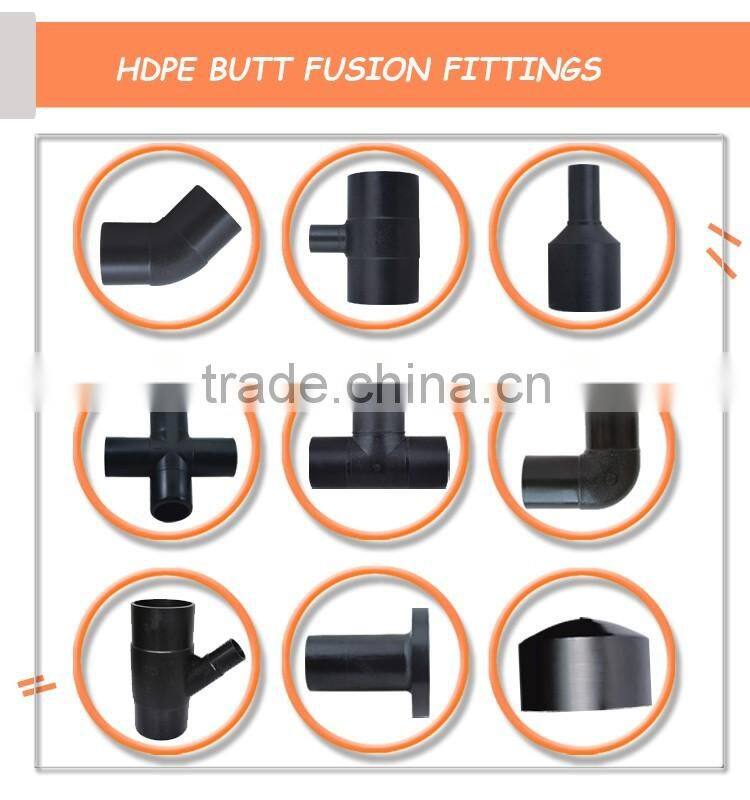

TYPE |
SIZE(MM) |
BF END CAP |
20~630 |

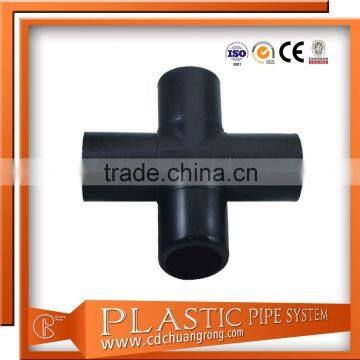

BF CROSS FITTING |
63~355 |

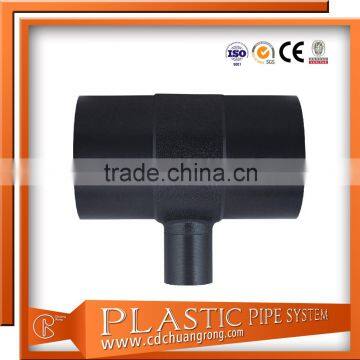

BF REDUCING TEE |
50*32*50~400*355*400 |
BF EQUAL TEE |
40-630mm |

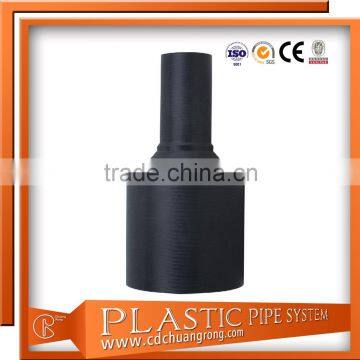

BF REDUCER |
63*25~800*710 |
BF ELBOW 90° |
20~630 |
BF ELBOW 45° |
50~630 |
BF STUB END |
20~1200 |
BF Y 45°TEE |
63~125mm |

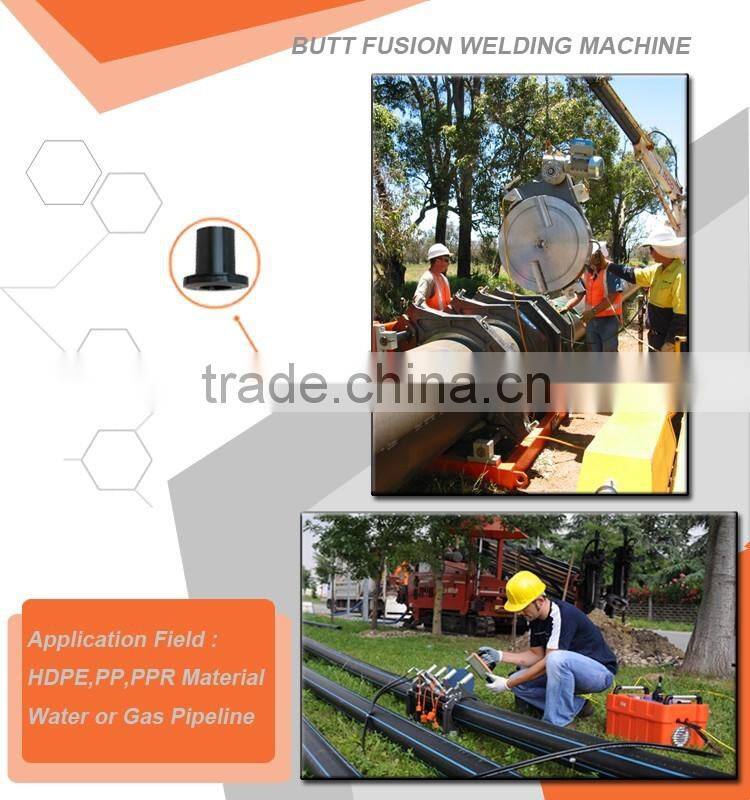

Applications:
1.Municipal water supply, gas supply and agriculture etc.
2.Commercial & Residential water supply
3.Industrial liquids transportation
4.Sewage treatment
5. Food and chemical industry
7. Replacement of cement pipes and steel pipes
8. Argillaceous silt, mud transportation
9. Garden green pipe networks
CHUANGRONG DN20-DN1200 PE Pipe Fittings Properties :
1.Specific Gravity, g/cm3, 20(C): 0.941-0.965
2.Longitudinal Reversion, % (110(C)): <=3
3.Oxidation Induciton Time, min (200(C)): >=20
4.Extension Rate at Break. %: >=350
5.Hydraulic Pressure Test:
1)20(C), Hoop Stress is 12.4 Mpa, 100h: No Failure.
2)80(C), Hoop Stress is 5.5Mpa, 165h: No Failure.
3)80(C), Hoop Stress is 5.0Mpa, 1000h: No Failure.

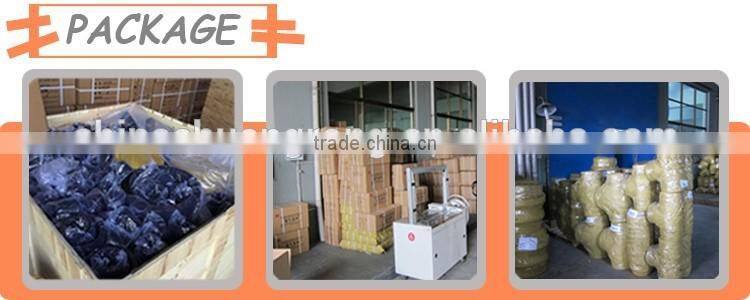

A Prefect Packing Will be Designed for You.
1.Wooden case 2.Carton 3.Plastic bags.
Inspection&Certification:
We can supply ISO9001-2008, BV ,SGS, CE etc certification.
All kinds of products are regularly conducted pressure-tight blastingtest,longitudinal shrinkage rate test,
quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.
CHUANGRONG is a leading professional supplier of plastic pipe system products since 2005.
Our products:
1.Plastic pipe,pipe fittings and valves (PE PP PVC),
2.Plastic pipe welding machine and tools 3.pipe repair clamp
Our aim is to provide customer with the best solutions of plastic pipe connection.
Thank you for your looking through.
