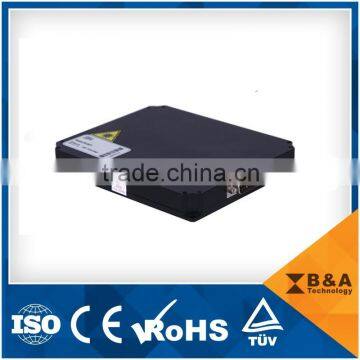

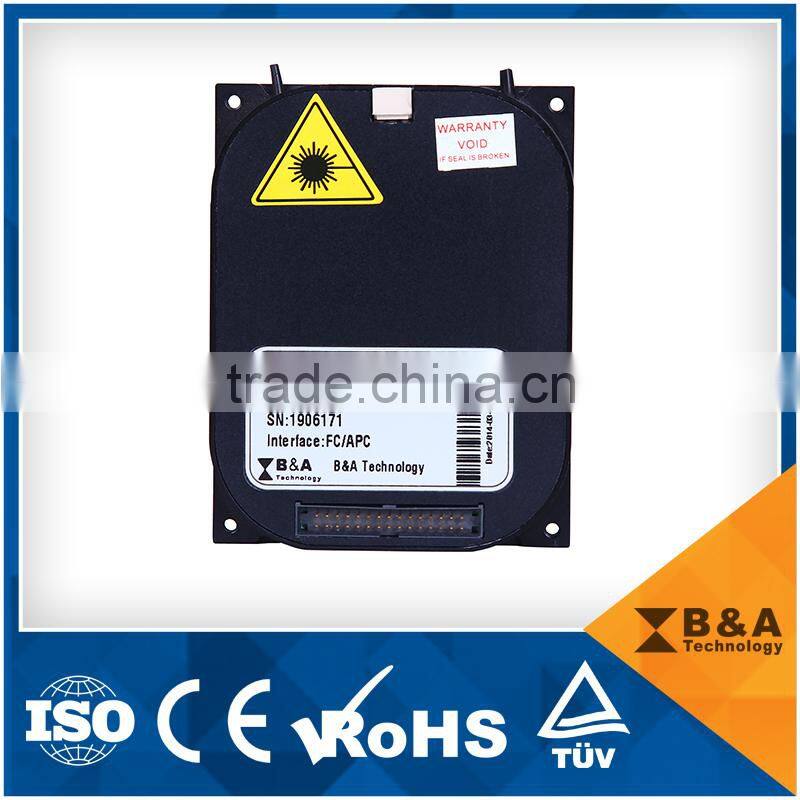

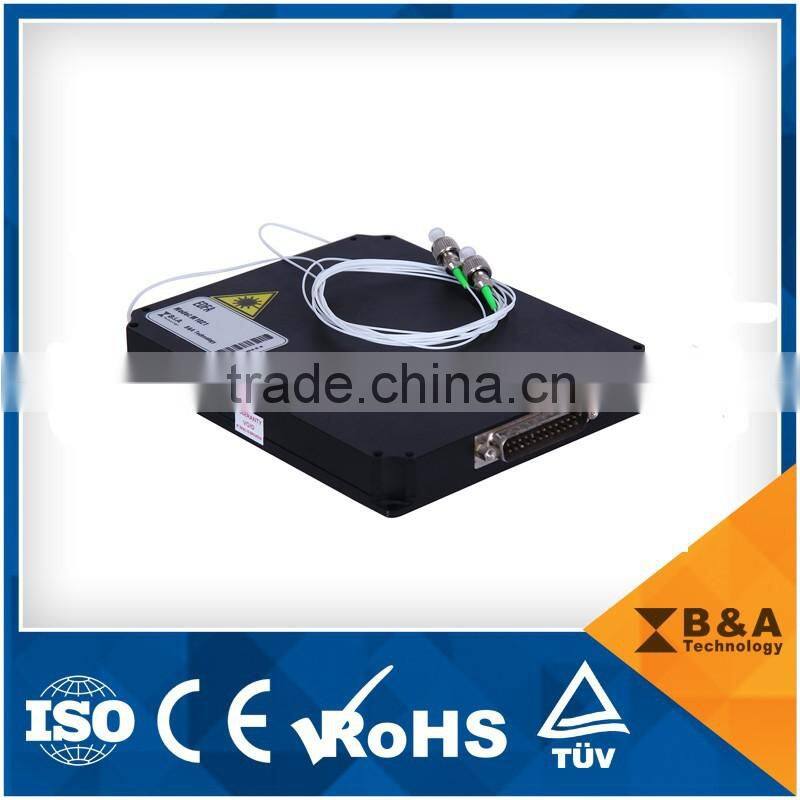

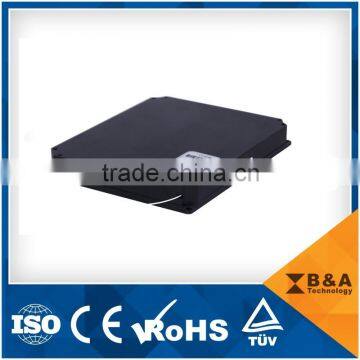

CATV EDFA Module
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
B&A
Model Number:
M1021
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EDFA Optical Amplifier ModuleNegotiableMOQ: 1 Unit -
Fiber Optic Amplifier EDFA ModuleNegotiableMOQ: 1 Unit
-
1550nm Output Power 13~24dBm EDFA ModuleNegotiableMOQ: 1 Unit
-
1550nm Fiber Optic EDFA Module for CATV SystemNegotiableMOQ: 1 Unit
-
Mini Fiber Optic Amplifier EDFA ModuleNegotiableMOQ: 1 Piece
Place of Origin
Shanghai, China
Brand Name
B&A
Model Number
M1021
Product Description
CATV EDFA Module
Optical Characteristics
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Wavelength |
λc |
1530 |
1550 |
1562 |
nm |
Output power(1) |
Po |
13 |
------ |
24 |
dBm |
Input power |
Pi |
-3 |
------ |
+10 |
dBm |
Gain |
G |
------ |
20 |
------ |
dB |
Noise Figure(2) |
NF |
------ |
4.5 |
----- |
dB |
Output power stability |
ΔPo |
----- |
±0.05 |
±0.1 |
dB |
Return Loss |
RL |
------- |
------- |
-45 |
dB |
PDG |
PDG |
------ |
------- |
0.3 |
dB |
PMD |
PMD |
------ |
------- |
0.5 |
ps |
Electric Characteristics
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Power Supply |
Vps |
3.0/4.5 |
3.2/5.0 |
3.5/5.5 |
VAC |
Consumption |
P |
----- |
---- |
20 |
W |
Environmental Characteristics
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Operating temperature |
Tw |
-5 |
----- |
60 |
℃ |
Storage temperature |
Ts |
-40 |
----- |
80 |
℃ |
Humidity |
------ |
10 |
------ |
85 |
% |
Mechanical Dimension
M1021:150*125*19(mm)
