TC-650 carton box windows patching machine
- 9999 Set / Sets per Month
- port of ningbo
- N Fold Hand Paper Towel Dispenser Packaging Machinery Manufacturer
- Hygiene Three Fold Hand Paper Towel Making Machine
- High Speed Laminating Z Folding Emboss Kitchen Paper Towel Machine
- Embossed Brand Name Z Fold Paper Hand Towel Making Machinery
- Hygiene N Folding Brand Name Towel Hand Paper Machine
- Health Care Laminating N Fold Hand Towel Paper Machinery
Product Details
Condition: | New | Product Type: | Other, packaging machine | Processing Type: | Other, window patching |
Place of Origin: | Zhejiang, China | Brand Name: | ZIHONG | Model Number: | TC-650 |
Voltage: | 380V | Power(W): | 2.2kw | Dimension(L*W*H): | 4500*1200*1600mm |
Weight: | 2000kg | Certification: | CE | Warranty: | One Year, 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

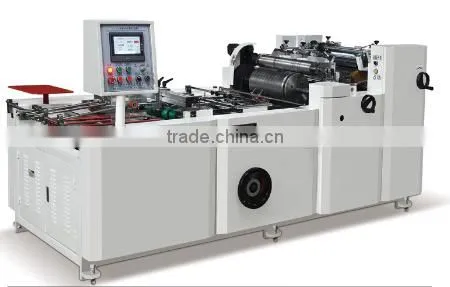

TC-650 carton box windows patching machine
Product Description
Window Patching Machine is widely used in the window patching to the liquor box, gift box. napkin box, cosmetic box, toy box, etc. It can be used for window film cut, creasing, gluing and patching of card.
1)The paper feeder parts is controlled by the servo motor, the paper pile make the intermittent movement in the process of the paper feeding, the belts operate long life, process the paper products to the conveying parts steady and orderly.

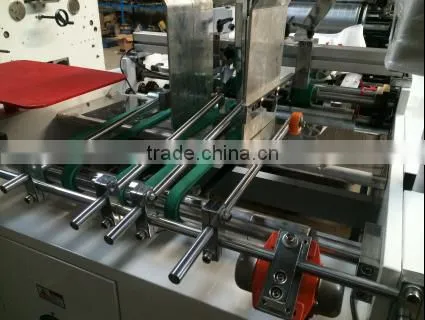

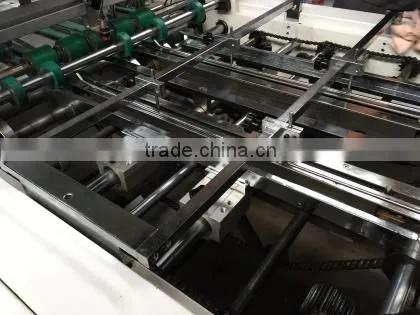

2)The paper conveying parts installed the four conveying chains with the four pushing blocks, it can be adjusted according to the paper shape.
3)The gluing parts adopt the adjustable parts gluing structure, it is convenient for adjustable according to the paper requirement and the gluing position, save the gluing quantity, it is easy for pulling out the gluing parts, convenient for washing. The gluing roller stopped the gluing when stopped the machine.

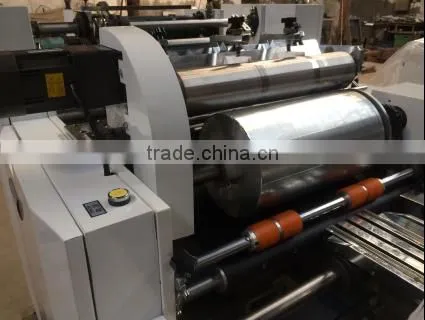

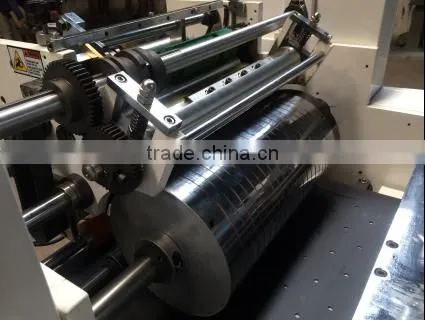

4)The cutting parts includes two blades. The upper roller is the cutting film roller with the two blade, finishing the cutting of the film. If customer need angular cutting and scoring option, we will add unit for this function. But the max speed is 5000-6000 pcs/hour.
What Configuration of our machine?
Brand | Name | Model |
OMRON | PLC | CP1E-N30S1DT-D |
KINCO | Touch screen | MT4414T |
OMRON | Battery | CP1W-BAT01 |
OMRON | Encoder | E6B2-CWZ6C 2000P/R |
OMRON | Proximity Switch | E2B-M12KS02-WP-C1 |
Yasukawa | 0.75KWServomotor | SGDV-5R5A01A |
INVT | 400WServomotor | SV-DB100-0R4-2-1R |
INVT | 5MServo sets of lines | 37006-00228 |
OMRON | Photoelectric switch | E3Z-D61 |
Leuze | Photoelectric switch | RT318 K/N |
Eaton | Breaker | E6-40/3/C |
Eaton | Breaker | E6-25/2/C |
Eaton | Breaker | E6-10/1/C |
Eaton | Breaker | XTCG018C00DT |
Eaton | Push button | A22-LCLED220-G |
Eaton | Push button | A22-E.STOP |
Eaton | Push button | A22-BE6 |
Eaton | Push button | A22-EK10 |
Eaton | Push button | A22-03T |
OMRON | Intermediate relay | MY2N-J DC24 |
OMRON | Base | PYF08A |
OMRON | Switching Power Supply | S8JC-Z10024C |
What Technical of our machine?
Model | TC-650 |
Applocable Paper grams | 200-1000g/m ² |
Working Speed | 12000 pcs/h |
Paper Size | 200*300-630*650mm (7.87*11.81-24.81*25.59inch) |
Window Size | 80*30-300*260mm (3.14*1.18-11.81*10.23 inch) |
Film Thickness | 0.05-0.25mm (0.0019-0.0098inch) |
Main Motor Power | 2.2kw |
Air Pump Power | 2.2kw |
Weight | 2000kw |
Machine size(L*W*H) | 4500*1200*1600 |
Sample show
Our Process Sequence

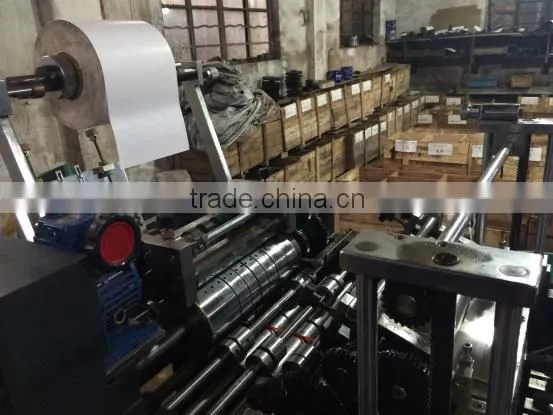

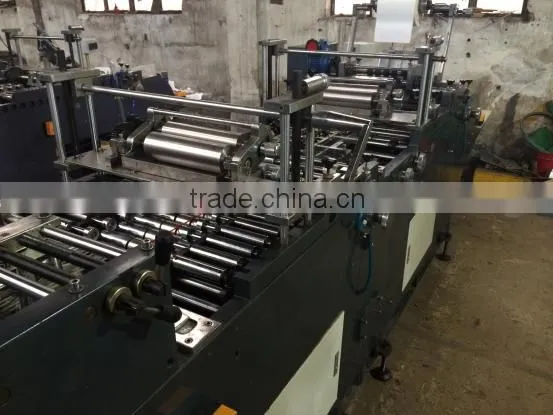

Picture in stock
Trade Terms:
- Payment:30% by T/T for deposit. The balance of 70% should be paid by T/T before shipment.
- Delivery Time: 30 days
- Package Informations:
Our service
- One year guarantee time.
- Present a set of wearing parts in wooden case before delivering the machine for free.
- If parts (except wearing parts) are broken within guarantee time (it is not caused by human factor), they will be changed for free.
The client should pay for the cost following:
1. Visa fee
2. Air ticket
3. Diet
4. Accommodation
5. Labor fee:50 USD/day (within guarantee time)
100 USD/day (without guarantee time)
NOTE:ALL OF THE COST SHOULD SEND TO US BEFORE SENDING OUT ENGINEER/PARTS.
