ZH-1450AC wholesale bow tie packaging box new machinery corrugated box making line machine price paper box making machine china
Introduction
ZH-1450AC is a multi function model,suitable for card board,EBA flute corrugated board.This model has correction device and two fold device.Can make electrical adjusting . Has UV destroying device and dust removing device for better gluing effect.
Characters
1.Driving by synchronous belt,ensure smooth and accurate running
2.Inverter driving,stable and power saving
3.Use tooth bar adjust(for higher configuration use electric adjust),easy operate
4.Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled
suction belt),to keep the feeding stable.
5.Special three plate prefolding as optional
6.Two upper glue device and two lower glue device ,for different kind gluing.
7.Automatic counting and kicking ,quantity can preset.
8.Conveyer pressure adjustable according to the box to ensure best quality
Technical Parmeters
Model |
ZH-1450AC |
Suitable material |
Card board,E flute corrugated board, Flat mouth box |
Feeding method |
Automatic continuous feeding |
Max mechanical speed |
260m/min |
| Overall dimension |
15000*2350*1650mm |
| Weight |
10T |
| Power consumption |
18.5KW |

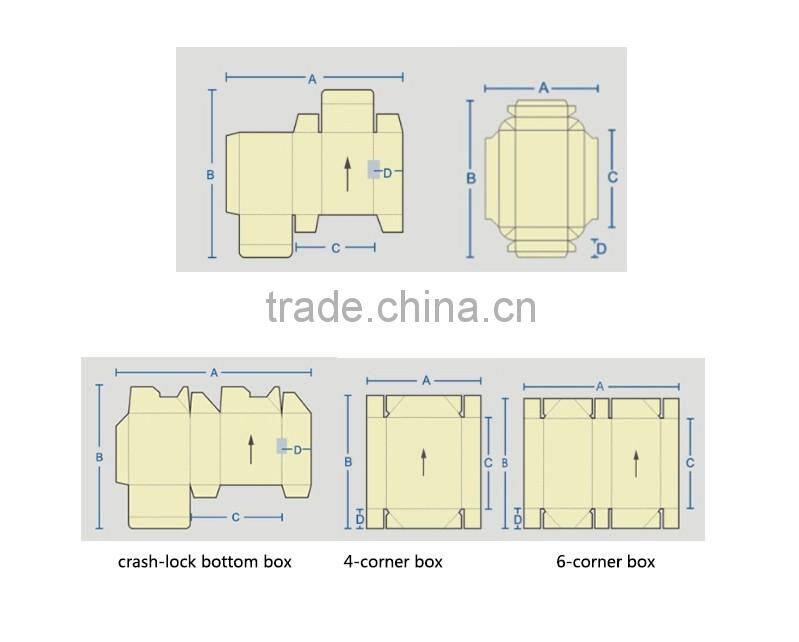

| ZH-1450PC/AC | ||||||
| straightline box | double sides box | crash-lock bottom box | 4-corner box | 6-corner box | ||
| A | MAX | 1500 | 1100 | 1450 | 1300 | 1400 |
| MIN | 300 | 350 | 350 | 400 | 400 | |
| B | MAX | 1500 | 1300 | 1400 | 1100 | 1100 |
| MIN | 80 | 200 | 150 | 250 | 250 | |
| C | MAX | 730 | 1200 | 720 | 1000 | 1000 |
| MIN | 140 | 150 | 170 | 200 | 200 | |
| D | MAX | 350 | 250 | 350 | 300 | 300 |
| MIN | 20 | 10 | 30 | 30 | 30 | |
Machine Configuration:
1)Main motor:TECO Taiwan
2)Inverter:Siemens
3)Timing belt and pulley:Optibelt German
4)Bearing:NSK
5)Main axis:Taiwan chrome plated steel bar
6)Wall thickness:20mm tempered
7)Feeding belt:Habasit Switcherland
8)Transfer belt:Habasit Japan
9)Plain belt:NITTA Japan
10)Low voltage apparatus:Omron/Fuji
11)Fasten bolts:Level 12.9 Taiwan

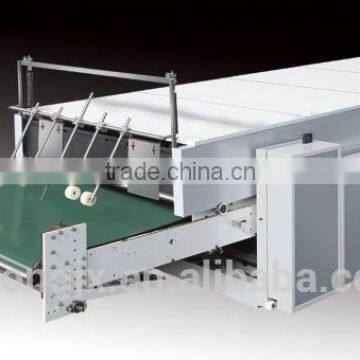

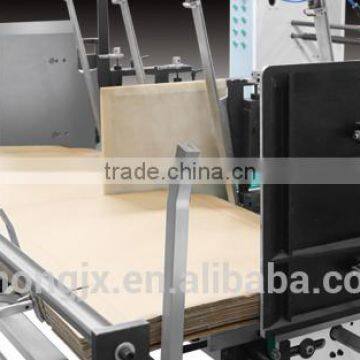

Feeder Section:
Equipped with vibrating motor.
With independent transmission,low noise,with front adjustable wheels,max working capacity can be achieved.
Feeding knives and left and right registers fixing bar are controlled up and down by pneumatic system easily.
Feeding knifes are equipped with pnematic mechanism for smoother feeding.

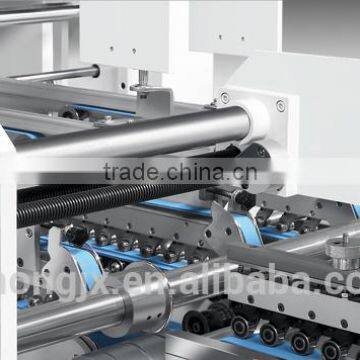

Paper Alignment System:
Automatic alignment system to correct the paper feeding,avoiding the paper going to sides.
UV destroying device and dust remove device for better gluing effect.

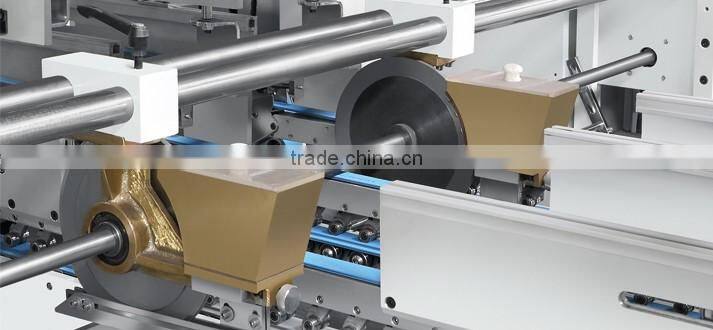

Bottom Lock Section
Big-volume design,when the machine is running at high speed,the glue will not go out or leaking .Optional
bottle is good for long time operation.
Lock-bottom assembly mechanism with high elastic hookers is of deal design,fast and easy operation.

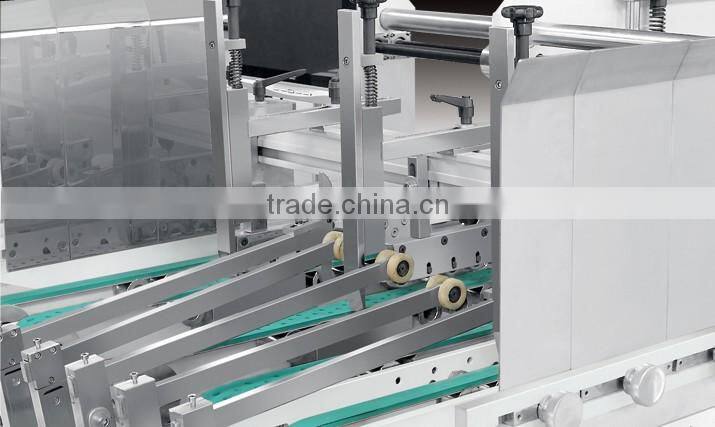

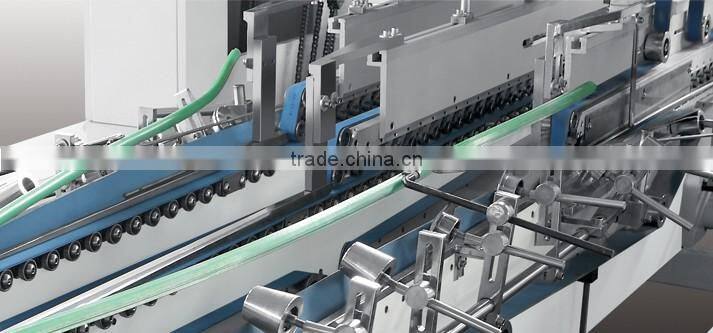

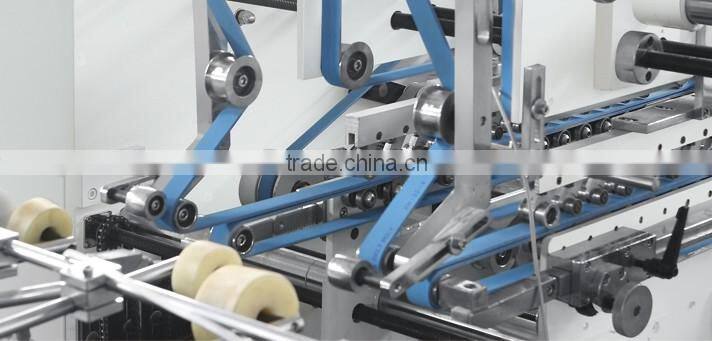

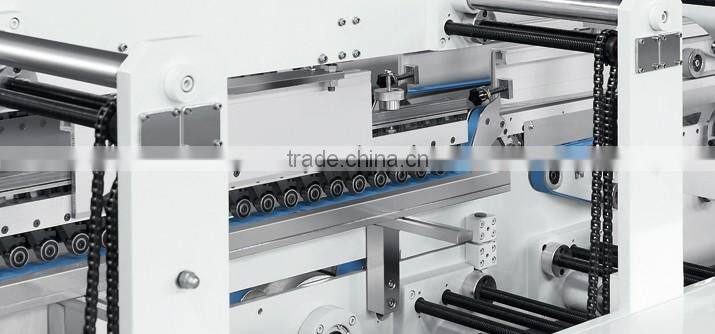

Folding Section
Equipped with speed variator for belts,ensure the folded boxes parallel and in good order
Fast,convenient adjustment and operation can fold boxes perfectly
The middle up and down transmission module can fold boxes synchronously or alternately
Trombone Section
Pressure can be adjusted according to the paper thickness.For flute A,B corrugated board,overlapping and jogger devices are equipped to ensure box gluing well.
After kicker is set up,whatever speed the machine runs ,the kicker can automatically follow,no need to reset it.

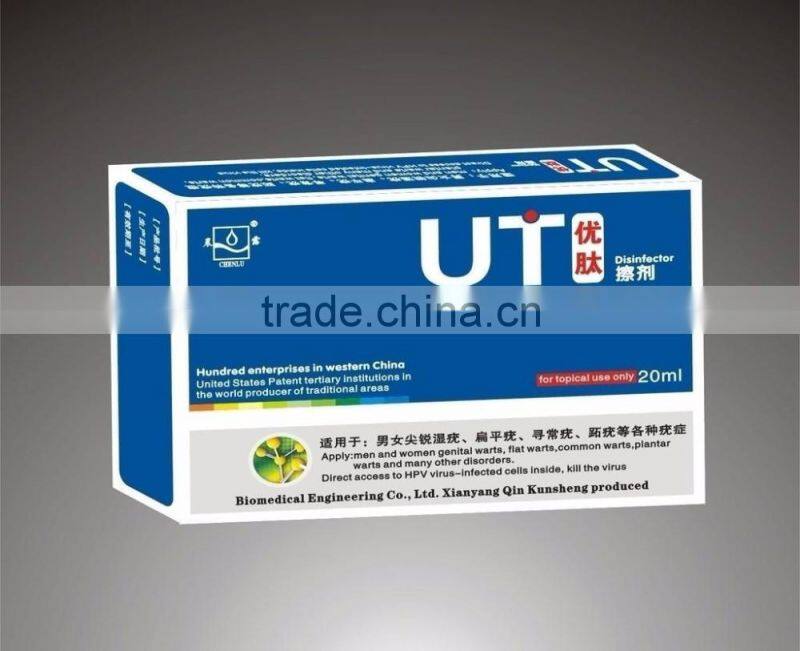

Cardboard box sample
About Factory
Warranty Service:
Machines are new (or unused) and the guarantee period will be given thirteen months from shipment date. During
this period, the seller will offer free maintenance and free spare parts that caused by the machine’s quality,
but the buyer must pay the courier cost. Parts damaged because of mishandling and consumable parts are not
covered by any warranty.
