Home > Products > 4 6 corner folding gluing machine > ZH-1050PC corrugated paper folding gluing mPChine for making fruit carton case for 4 6 corner box

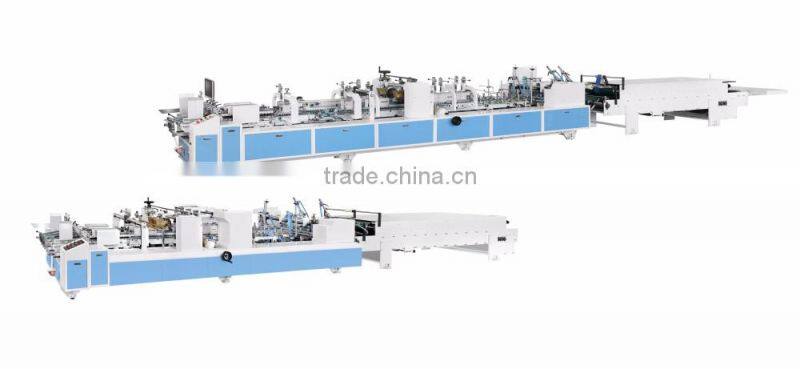

ZH-1050PC corrugated paper folding gluing mPChine for making fruit carton case for 4 6 corner box
- 9999 Set / Sets per Month
- Ningbo port logistics
- T/T
- Non-woven PUR Hot Melt Laminating Machine for Fabric/film/garment/sofa/mattress/underwear
- Automatic PUR Hot Melt Laminating Machine for medical fabric laminating machine
- PUR hot melt Laminating Machine for automotive interior parts lamination
- PUR hot melt laminating machine for Nonwoven/Film/foam/Fabric/EVA/PU/PP
- Automatic Hot Melt Coating Machine for medical fabric laminating machine
- Fabric/film/non-woven Hot Melt Coating Machine for garment/sofa/mattress/underwear
Product Details
Condition: | New | Application: | Apparel, Food, Other, Apparel, Food, Machinery & Hardware | Packaging Type: | Cartons |
Packaging Material: | Metal, Wood | Automatic Grade: | Automatic | Driven Type: | Mechanical |
Voltage: | 380V | Power: | 15.5kw | Place of Origin: | Zhejiang, China |
Brand Name: | ZIHONG | Model Number: | ZH-1050PC | Dimension(L*W*H): | 15500*1900*1600 |
Weight: | 8.5T | Certification: | CE ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Machine Characters
1.Driving by synchronous belt,ensure smooth and accurate running
2.Inverter driving,stable and power saving
3.Use tooth bar adjust(for higher configuration use electric adjust),easy operate
4.Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled suction
belt),to keep the feeding stable.
5.Special three plate prefolding as optional
6.Two upper glue device and two lower glue device ,for different kind gluing.
7.Automatic counting and kicking ,quantity can preset.
8.Conveyer pressure adjustable according to the box to ensure best quality
Feeder Section:
Equipped with vibrating motor.
With independent transmission,low noise,with front adjustable wheels,max working capacity can be achieved.
Feeding knives and left and right registers fixing bar are controlled up and down by pneumatic system easily.
Feeding knifes are equipped with pnematic mechanism for smoother feeding.
Paper Alignment System:
Automatic alignment system to correct the paper feeding,avoding the paper going to sides.
UV destroying deivce and dust remove device for better gluing effect.
Configuration
1)Main motor:TECO Taiwan
2)Inverter:Siemens
3)Timing belt and pulley:Optibelt German
4)Bearing:NSK
5)Main axis:Taiwan chorme plated steel bar
6)Wall thickness:20mm tempered
7)Feeding belt:Habasit Switcherland
8)Transfer belt:NITTA Japan
9)Plain belt:NITTA Japan
10)Low voltage apparatus:Omron/Fuji
Optional Configuration
- High frequency Plasma
- Yaskawa servo system(for 4/6 corner box)
- HHS glue sprary system (for 4/6 corner box)
About Factory
Warranty Service:
Machines are new (or unused) and the guarantee period will be given thirteen months from shipment date. During
this period, the seller will offer free maintenance and free spare parts that caused by the machine’s quality,
but the buyer must pay the courier cost. Parts damaged because of mishandling and consumable parts are not
covered by any warranty.
