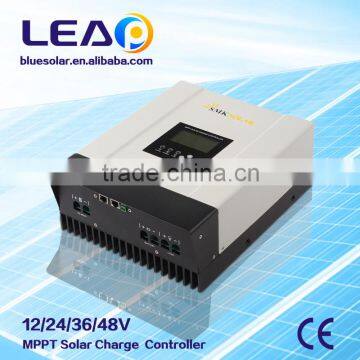

Name: 50A 12V/24V/48V Auto MPPT Solar Charge Controller
Brand: LEAP/SMK
SKU: 105967991
Availability: InStock

ALL CATEGORIES

50A 12V/24V/48V Auto MPPT Solar Charge Controller

Send Inquiry to This Supplier

Mrs. Daisy Cen

Sales Manager

Zhejiang Photovoltaic Technology Co., Ltd.

Ningbo, Zhejiang, China

Message

0/5000

* Email

Model	SMK-SCF-50A	SMK-SCF-60A
Solar System Voltage	12V/24V/48V Auto work
Electrical
PV Operating Voltage	18~150Vdc@12V 35~150Vdc@24V 60~150Vdc@48V
MPPT voltage range
Max. PV input power	12V 700W	12V 900W
	24V 1400W	24V 1800W
	48V 2900W	48V 3400W
Rated input current	50A	60A
Self consumption	3W
Conversion Efficiency	97.6%
Protection	Over load, short circuit, over voltage,reverse protection
Battery charging
Battery Type	Sealed Gel AGM Flooded
Charge algorithm	3 stage: Bulk, Absorption, Float
Bulk charge voltage	Sealed: 14.4V AGM 14.2V Gel:14.2V Flooded:14.6V User defined:10-15V
Float charge voltage	Sealed/Gel/AGM:13.8V Flooded:13.7V User defined:10-15V
Equalize charge voltage	Sealed 14.6V AGM:14.8V Flooded:14.9V
Low voltage reconnect voltage	12.5V
Temperature compensation	5mV/℃/2V with BTS
Communication
Communication Port	RS485(Standard) Ethernet RS232 Optional with On line monitoring system
Physical
Net weight	3kg
Gross weight	4kg
Dimension	28018089MM
Cooling	Fan cooling
Enclosure	IP20
Environment
Ambient operating temperature	-25℃~60℃
Storage Temperature	-40℃~80℃
Humidity	100% non-condensing
Warranty	Two years
Technical data for 12V system at 25℃, twice in 24V system rate and quaduple in 48V system rate
