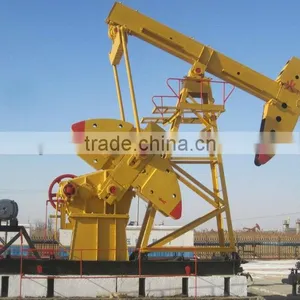

API Conventional Beam Pumping Unit, Beam Jack Pump

API Conventional Beam Pumping Unit, Beam Jack Pump thumbnail-1
API Conventional Beam Pumping Unit, Beam Jack Pump photo-1
US$ 1 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Sanhe
Model Number:
CYJ6-1.4-13HB
Contact Supplier Request Quote Chat Now
Shandong Sanhe Industrial Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Sanhe
Model Number CYJ6-1.4-13HB
Theory Axial Flow Pump
Structure Other
Usage Oil
Power Electric
Standard or Nonstandard Standard
Fuel Diesel
Pressure High Pressure
Application Other, Oil Recovery

Specifications

1. API 11E Standard
2. Heavy capacity
3. Good strength
4. Energy-saving
5. Convenient Maintenance



API Conventional Beam Pumping Unit



1. The structure is simple and reliable and it works smoothly with lower noise, simple to install and maintain.
2. Walking beam is a box or welded H steel beam with high strength, good rigidity and heavy capacity.

3. Gear reducer uses herringbone involutes or double circular-arc gears with high bearing capacity and long working life.



4. Horse head with swinging device moving side or upwards is flexible and convenient for well workover.

5. Central bearing and equalizer bearing feature heavy duty and reliable seal by adopting medium and wide series roller bearings.

6. Self-aligning bearing is used on equalizer to reduce mounting error and operating vibration.

7. Internal expansion or external contracting brake of safety device is easy, quick and effective for operating.



Specifications:





Type

APISpec.11E



Rated suspension point load



Reducer torque



Stroke



Stroke Frequency



Motor Power



Machine quality

CYJ5-1.8-13HB

114-109-74

50

13

1.8 1.5 1.2

6 9 12

15

9.5

CYJ6-1.4-13HB

114-133-54

60

13

1.4 1.2 1.0

6 9 12

15

11.2

CYJ6-1.6-13HB

114-143-54

60

13

1.6 1.4 1.1

6 9 12

15

11.5

CYJ8-1.6-13HB

114-173-64

80

13

1.6 1.4 1.1

6 9 12

18.5

12.4

CYJ6-1.8-13HB

114-143-74

60

13

1,8 1.6 1.4

6 9 12

15

12.4

CYJ5-2.1-13HB

114-119-86

50

13

2.1 1.8 1.4

6 9 12

15

12.4

CYJ8-1.6-18HB

160-173-64

80

18

1.6 1.4 1.1

6 9 12

18.5

12.7

CYJ6-1.8-18HB

160-143-74

60

18

1.8 1.6 1.4

6 9 12

15

12.7

CYJ8-1.8-18HB

160-173-74

80

18

1.8 1.6 1.4

6 9 12

18.5

12.7

CYJ9-1.8-18HB

160-200-74

90

18

1.8 1.6 1.4

6 9 12

18.5

14.6

CYJ8-2.1-18HB

160-173-86

80

18

2.1 1.8 1.6

6 9 12

22

14.6.

CYJ8-1.8-26HB

228-173-74

80

26

1.8 1.6 1.4

6 9 12

18.5

14.6

CYJ9-1.8-26HB

228-220-74

90

26

1.8 1.6 1.4

6 9 12

18.5

14.6

CYJ10-2.1-26HB

228-213-86

100

26

2.1 1.8 1.6

6 9 12

22

17.9

CYJ11-2.1-26HB

228-246-86

110

26

2.1 1.8 1.6

6 9 12

22

17.9

CYJ6-2.5-26HB

228-133-100

60

26

2.5 2.1 1.8

6 9 12

18.5

13.8

CYJ8-2.5-26HB

228-173-100

80

26

2.5 2.1 1.8

6 9 12

30

15.5

CYJ10-2.5-26HB

228-213-100

100

26

2.5 2.1 1.8

6 9 12

30

16.4

CYJ10-3-26HB

228-213-120

100

26

3.0 2.5 2.1

6 9 12

30

17.9

CYJ10-2.1-37HB

320-213-86

100

37

2.1 1.8 1.6

6 9 12

30

17.9

CYJ12-2.5-37HB

320-256-100

120

37

2.5 2.1 1.6

6 9 12

37

18.5

CYJ10-3-37HB

320-213-120

100

37

3.0 2.5 2.1

6 9 12

30

18.1

CYJ12-3-37HB

320-256-120

120

37

3.0 2.5 2.1

6 9 12

37

19.5

CYJ10-3-53HB

456-213-120

100

53

3.0 2.5 2.1

6 9 12

45

21.0

CYJ14-3-53HB

456-305-120

140

53

3.0 2.5 2.1

6 9 12

55

24.5

CYJ12-3-53HB

456-256-120

120

53

3.0 2.5 2.1

6 9 12

45

23.0

CYJ12-3.6-53HB

456-256-144

120

53

3.6 3.1 2.7

6 9 12

55

24.0

CYJ14-4.2-53HB

456-305-168

140

53

4.2 3.6 3.1

6 9 12

55

26.6

CYJ14-3.6-73HB

640-305-144

140

73

3.6 3.1 2.7

6 9 12
