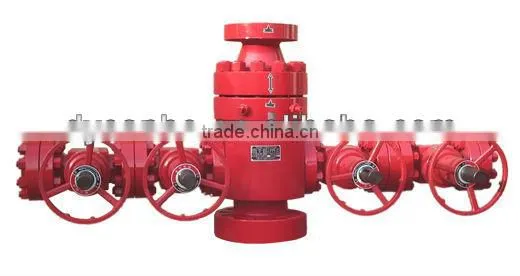

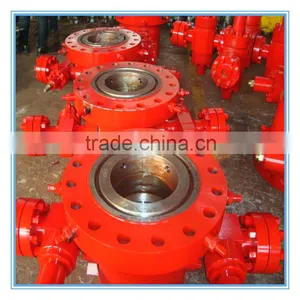

Oilfield Tubing Head API 6A Specs
US$ 1 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Sanhe
Type:
Other, Tubing head
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wellhead Assembly & Christmas Tree API 6AUS$ 1 - 50,000MOQ: 1 Set -
API TQ Hydraulic Casing Power TongUS$ 1 - 10,000MOQ: 1 Set
-
API High Quality Mud ValveUS$ 1 - 1,000MOQ: 10 Sets
-
Drilling Pipe Hydraulic Power TongUS$ 1 - 100MOQ: 1 Set
-
API 16A Single Ram and Double-ram BOPUS$ 1 - 20,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
Sanhe
Type
Other, Tubing head
Machine Type
Other
Certification
API
Material
Other, 4130
Processing Type
Forging
Use
Well Drilling
Specifications
Tubing Head API 6A SpecsWorking pressure: 2000psi-20000psi;
Working medium: petrol, natural gas, mud, gas containing H2S &CO2

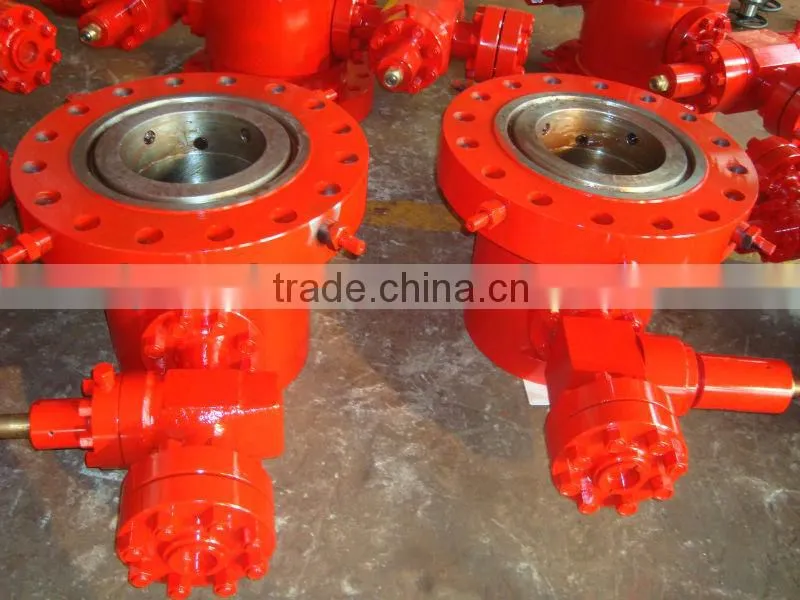

Oilfield Tubing Head API 6A Specs
Basic parameters
Working pressure: 2000psi-20000psi;
Working medium: petrol, natural gas, mud, gas containing H2S &CO2;
Working temperature:-46°C~121°C(LU class);
Material class: AA, BB, CC, DD, EE, FF;
Specification class: PSL 1~4;
Performance class: PR1~2
| Top flange | Top flange | Top flange | Top flange |
| 11"×2000psi (279.4mm×14MPa) | 11"×2000psi (279.4mm×14MPa) | 11"×5000psi (279.4mm×35MPa) | 13-5/8"×5000psi (346.1mm×35MPa) |
| 11"×2000psi (279.4mm×14MPa) | 13-5/8"×2000psi (346.1mm×14MPa) | 11"×10000psi (279.4mm×70MPa) | 13-5/8"×5000psi (346.1mm×35MPa) |
| 11"×3000psi (279.4mm×21MPa) | 11"×3000psi (279.4mm×21MPa) | 11"×15000psi (279.4mm×105MPa) | 13-5/8"×5000psi (346.1mm×35MPa) |
| 11"×3000psi (279.4mm×21MPa) | 13-5/8"×2000psi (346.1mm×14MPa) | 13-5/8"×5000psi (346.1mm×35MPa) | 21-1/14"×2000psi (539.8mm×14MPa) |
| 11"×3000psi (279.4mm×21MPa) | 13-5/8"×3000psi (346.1mm×21MPa) | 13-5/8"×10000psi (346.1mm×70MPa) | 13-5/8"×5000psi (346.1mm×35MPa) |
| 11"×5000psi (279.4mm×35MPa) | 13-5/8"×3000psi (346.1mm×21MPa) | 13-5/8"×15000psi (346.1mm×105MPa) | 13-5/8"×5000psi (346.1mm×35MPa) |
| Casing Program | 20 " X13 3/8 " X9 5/8 " X 7 " or 5 1/2 " |
| Flanged Outlet | PFF35/80:R35 |
| PFF70/65:BX153 | |
| Load Capacity | ≤ 5000KN |
| Hanger Specification | 4 ", 4 1/2 ", 5 ", 5 1/2 ", 7 " |
| Working Pressure | 35Mpa~70Mpa |
| Performance Requirement Grade | PR1 |
| Product Specification Grade | PSL1-3 |
| Temperature | P·U (-29°C~121°C) |
| Material Class | AA~FF |
