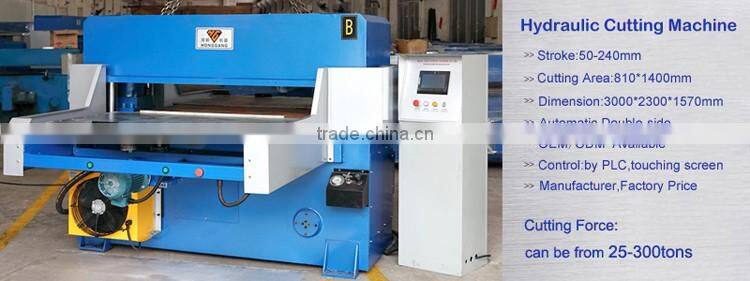

hydraulic automatic pvc sponge flooring press cutting machine
- 120 Set / Sets per Month
- guangzhou shenzhen
- T/T Credit Card
Product Details
| Condition: | New | Type: | Hydraulic Cutting Machine | Application: | sponge,foam,plastic,eva,non-metallic |
| Place of Origin: | Guangdong, China | Brand Name: | HONGGANG | Model Number: | HG-80T |
| Rated Power: | 7.5kw | No-Load Rotational Speed: | 100% | Saw Blade Diameter: | 810mm |
| Max. Cutting Depth: | 240mm | Dimensions: | 3000*2300*1570mm | Voltage: | 220v/380v/415v |
| Power(W): | 7.5kw | Certification: | CE Certificate | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
hydraulic automatic pvc sponge flooring press cutting machine
Watch on youtube:
Hydraulic automatic blister die cutting machine with stacker cutting video:
/watch?v=r5rzdvhnwrk
Hydraulic automatic die cutting machine working for blister cutting video:
/watch?v=x8CaSikc-AU&list=PLZTnvjIksKDjwaGTtHZAijzeVp801xacm&index=7
Fully hydraulic automatic Roller Feeding die cutting machine for leather&sponge-foam cutting video:
/watch?v=6vBJXRQvBqQ&list=PLZTnvjIksKDgEDr0iUBsBT_sHfQD6g-aG&index=1
More cutting machine video on our youtube page:
/channel/UCO-wTQeY0Hox4c4Gako8vAQ/videos
What Specification of our cutting press machine?
The working principle of the automatic hydraulic cutting machine is down press to the mould,to cut material by dies / moulds.
suitable to die cut all non-metal soft /half-soft materials.From manual to full automatic type,serving for leather,fabric,EVA/EPE foam,blister packaging,rubber,sponge,automotive/plane etc.
Fully capacity in offering professional cutting solutions/feeding system as demands.

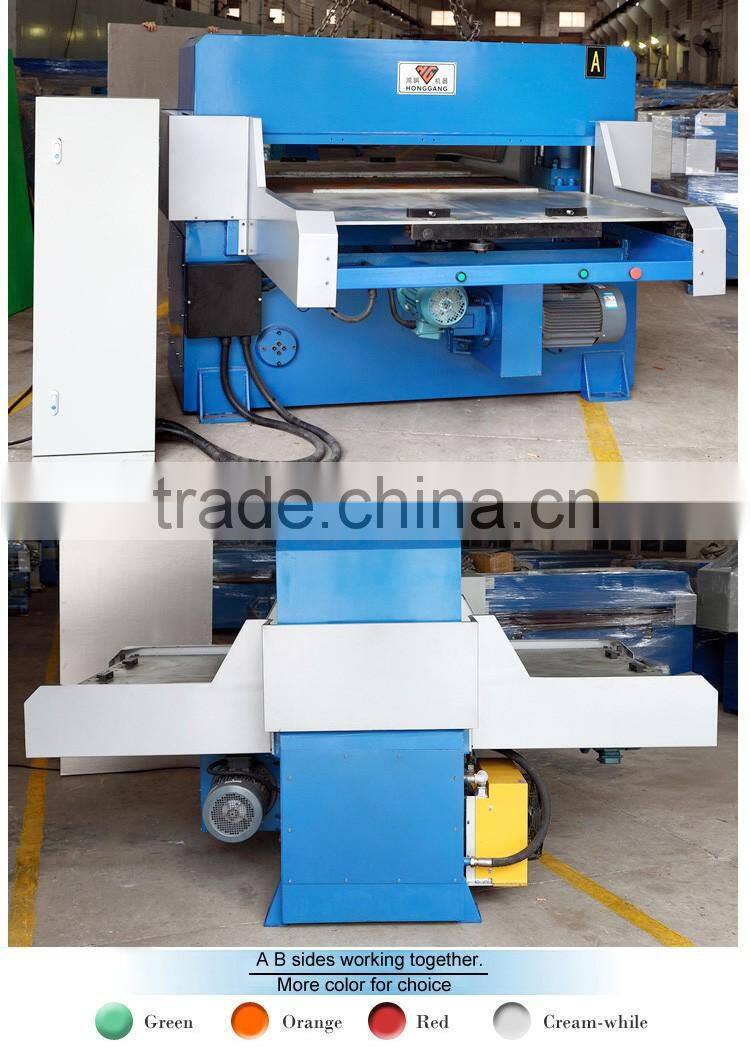

HG-Double-side Automotive Cutting Machine

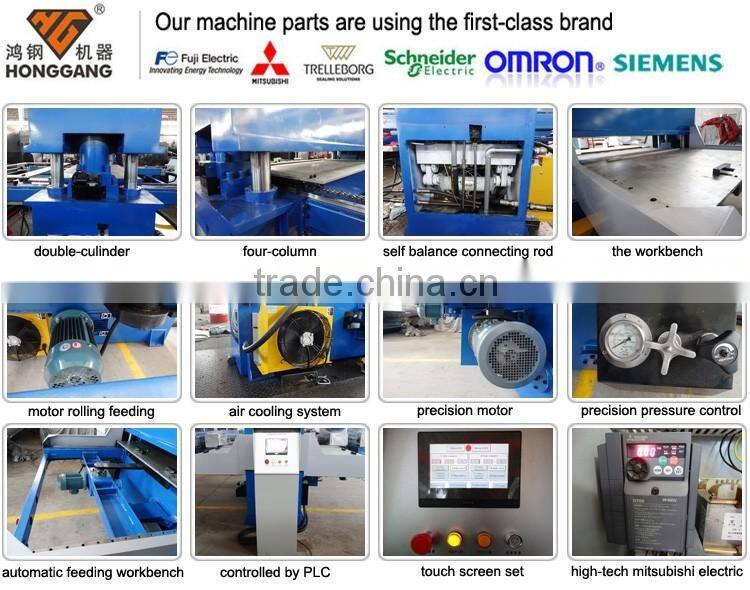

1. Features and Advantages
1. By computer,Electrical box,PLC control---more simple,fast and precision.
2. TWO-cylinders,four-columns,self-balancing connecting rod ----which can maintain equal pressure of each position.
3. Quite down but slow cut, more accurate,+ _ 0.01mm.
4. Hydraulic system, Central automatic lubrication systems can ensure precision and durability of the machine.
5. Feeding: Single or double auto feeding beds for choosing,more economical and 2 or 3 times improving producting capacity.
6. With micro motion system for installed Double dies.
2. Technical Parameters
| Model. No | HG-B60T | HG-B80T | HG-B100T | HG-B120T | HG-B150T | HG-B200T |
| Cutting force | 60tons | 80tons | 100tons | 120tons | 150tons | 200tons |
Dimension (L*W*H) | 3000*2300*1570 mm | 3000*2300*1570 mm | 3000*2300*1570 mm | 3000*2300*1570 mm | 3000*2300*1570 mm | 3000*2300*1570 mm |
| Stroke | 50-240mm | 50-240mm | 50-240mm | 50-240mm | 50-240mm | 50-240mm |
| Area of Work Table | 810*1400mm | 810*1400mm | 810*1400mm | 810*1400mm | 810*1400mm | 810*1400mm |
| Main Motor Power | 5.5KW | 7.5KW | 7.5KW | 11KW | 11KW | 11.5KW |
Net Weight | 4500KG | 5000KG | 5500KG | 6300KG | 7000KG |
7500KG |

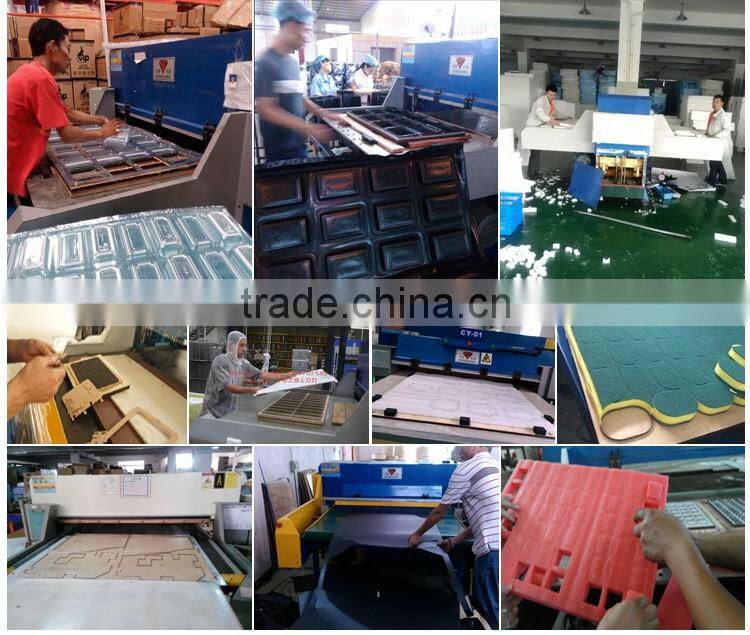

What Working of our cutting press machine?
3. the cutting press machine working show press machine
4. the cutting-dies & PP board
We can according to your material,requirements,design the mould for you.
What Application of our cutting press machine?
The hydraulic die cutting machine is suitable to die cut all non-metal soft /half-soft materials, especially use for die cutting disposable blister or foam packaging,paper products,cardboard,EPE foam packaging,automotive/plane interiors etc.large materials sheets.
5. The Hydraulic Cutting Machine Manufacturing Process:
Trade Terms:
Trade term:FOB,CIF,EXW
Payment terms:T/T,Westem Union,PayPal,Escow,MoneyGram.
Payment Condition:30% deposit in advance. 70% balance before delivery.
Delivery time:5-15days working days after deposit.
Packing:Wooden case with plate.
Shipment:By Sea.
1. We are a factory, and the price is favorable.
2. We have strict QC system.
3. We offer a free after-sales warranty for 1 years;life-long maintenance service.
4. Our engineers are available to service machinery overseas.
5. Our machines have been sold to over 40 countries.
Company show
1)What's warranty of hydraulic cutting machine?
12 months Warranty
Life-long maintenance service for press cutting machine
2)What's your after-sales service?
Engineer available to serve machines over seas;
Email and calling service in working hour; 24 hours door to door in domestic.
3)Can we test the our material by your machine free?
Yes, please contact us to send your matrial.
4)How to confirm how much ton pressure is fine?
Always 1m knife line need about 5 ton pressure.
please send your drawing or product photo, we can help you confirm.
5)Can you make dies & PP boards?
Yes, just send your drawing or material.
PP board will come with machine to you.
6)Are you a factory or trading company?
We are a factory and manufacturer
Don't know how many ton you need?
Please contact us!
Don't know how the machine working?
Please contact us to see the video!
How to Contact Us?
If you are not sure if your material can be cut by this plastic cutting press machine,we want to know the product information:
| Material: | |
| Max. material width: | |
| Max. material thickness: | |
| Max.cutting length: | |
Send your Inquiry Details in the Below, Click "Send" !
we will reply within 24h!
