summarize for machines:
the whole plant of making machine include the mould,spinning machine,mixer ,overhead crane,tension machine,button head machine,stell cutting machine,boiler,touch welding machine,concrete feeding machine,ring making machine.
this pole machine can also make concrete fence for yeard,just change the mould,can make the 2meter ,3meter concrete fence.we are the biggest mould and spinning machine in china.
we are special making the mould and spinning machine but also can offer others machine to you,we can install all them and give training to you.
mould can make Top diameter: 150mm-230mm
bottom dia:390mm -500mm
Taper: 1:75/by buyer
Advantage: high quality, easy operation
Pre-stressed concrete pole mould is used for electronic concrete pole making. Its mainly manufacture technology is longitudinal tension by steel wires. Then it can squeeze out the excess water in the concrete under the centrifugal force. Thus, it can greatly improve the concrete density and strength.
In order to form concrete more quickly to meet the design strength of more than 70%, steam curing can be carried out so as to shorten the mould-releasing cycle.
Our factory produces two categories of Pre-stressed concrete pole steel moulds, DMZ&DMD. The Pre-stressed Electric Poles by this series equipment comply with the China Standard JC/T364-2001.
our make out first spinning machine in china,and up now have the most advanced techology on it,most of factory in china copy our old technology.
Features:
1. Welding technology, which enhances the smooth finish of the mould wall, and eliminates the uneven traces of rivet holes. So the concrete poles appearance will be improved significantly.
2. The cylinder is changed to U-type longitudinal stiffeners which can greatly increase the stiffness and flexural strength of the steel mould,
3. Install the slot with rubber sealing strip, in order to prevent leakage to ensure quality.
Working Principle:
1. The steel mould should work together with pole spinning machine. The steel mould should be placed on the spinning machine smoothly.
2. Put the mixed slurry into the mould and rotate in different directions under the motor driven.
3. In this process, the redundant water in the concrete is released by the force of centrifugal, and the concrete is dense and high strength. And then, the pole forms around the inner wall of the pole mould.
history for us:
our factory since from 1980,is the first company in china make the concrete poles mould and spinning machine.have three factory in china and become leading company of poles industry now ,have agent in malaysia,indonesia,vietnam,thailand.and we start to come into africa in 2005,have agent in ethiopia,kenya.we get almost 70% market share in kenya and 90% share market in et.we have been get ISO9001:2000,CE,get good cooperation with BV,SGS.we warmly you can visit us in china.
put up granty crane in kenya

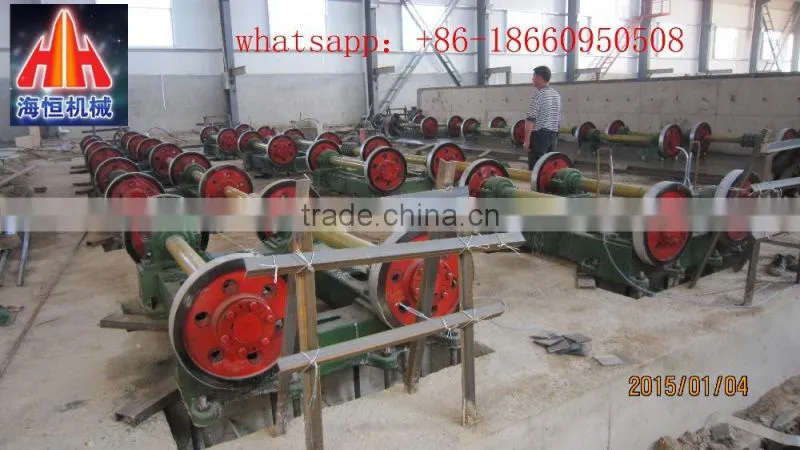

install spinning machines
we have been built 6 factory in kenya,such as
betty,jungle,compact,line,western.....have much experience in africa market.warmly welcome visit us to china.
