Precision Optical Level
- Xingang of Tianjin China
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Tianjin, China | Brand Name | LT | |
| Model Number | DSZ |
Four sets in one carton
Carton Size: 300*350*400mm
Gross Weight: 12kgs
Product Description
Precision Optical Level
CE ISO ROHS Certificate
3-Years extended warranty
This instrument is mainly suitable for high precision survey of engineering including construction project, mines, road, bridge, etc. It possesses convenient operation, clear image, water proof facility, type X air or magnetic damping and compensation mechanism, and precision of compensator. It is speedy and reliable
as well.
Model | DSZ-20 | DSZ-22 | DSZ-24 | DSZ-26 | DSZ-28 | DSZ-32 |
Magnification | 20X | 22X | 24X | 36X | 28X | 32X |
Image | Erect | Erect | Erect | Erect | Erect | Erect |
Objective Aperture | 36mm | 36mm | 36mm | 36mm | 36mm | 36mm |
Field of View | 1°20' | 1°20' | 1°20' | 1°20’ | 1°20' | 1°20' |
Minimum Focusing Distance | 1m | 1m | 1m | 1m | 1m | 1m |
Stadia Ratio | 100 | 100 | 100 | 100 | 100 | 100 |
Setting Accuracy | 0.5’’ | 0.5’’ | 0.5’’ | 0.5’’ | 0.5’’ | 0.5’’ |
Compensating Range | ±15' | ±15' | ±15' | ±15' | ±15' | ±15' |
Standard Deviation for 1Km Double Run Levelling | ±3.0mm | ±3.0mm | ±3.0mm | ±2.5mm |
±2.5mm |
±2.5mm |
Circular Level Sensitivity | 8’/12mm | 8’/12mm | 8’/12mm | 8’/12mm | 8’/12mm | 8’/12mm |
Horizontal Circle Graduating | 1° or 1gon | 1° or 1gon | 1° or 1gon | 1° or 1gon | 1° or 1gon | 1° or 1gon |
Net Weight | 1.4kg | 1.4kg | 1.4kg | 1.4kg | 1.4kg | 1.4kg |
Product Picture

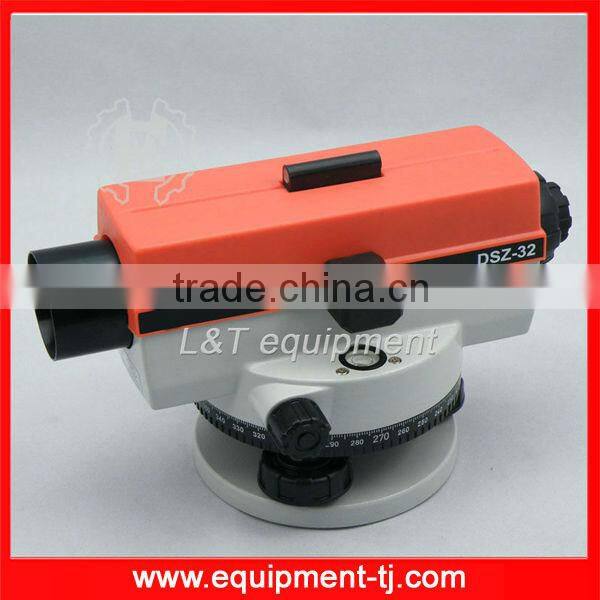

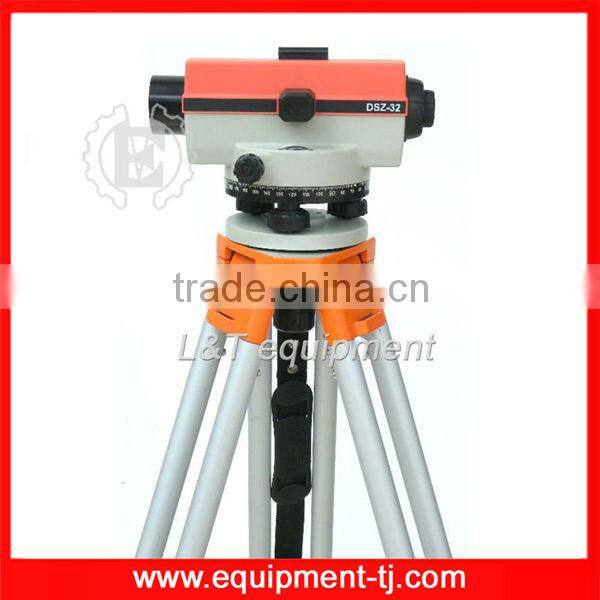

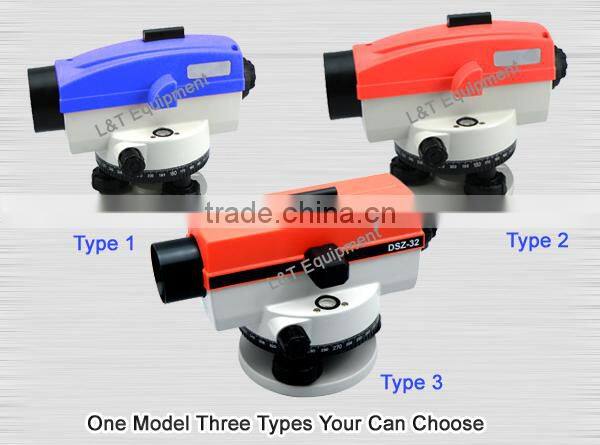

Precision Optical Level
