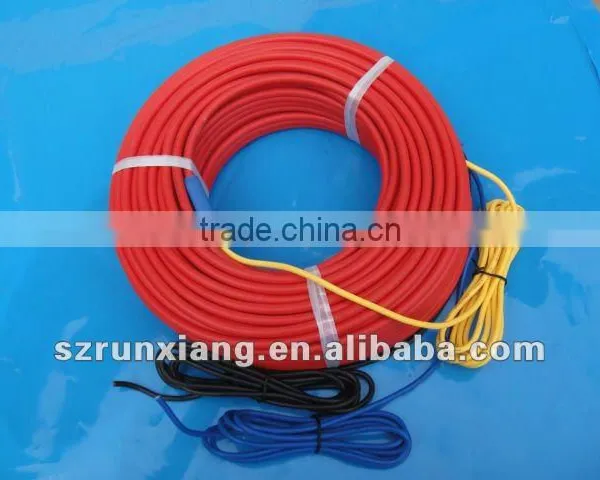

1 core 220v Selfregulated linear underground heating tracing Cable

Specifications

Temperature Uniform, Easy installation & maintenance, Energy save
Anti-explosion :No.CNEx05.1101X CJEx07.124U CNEx06.0205X

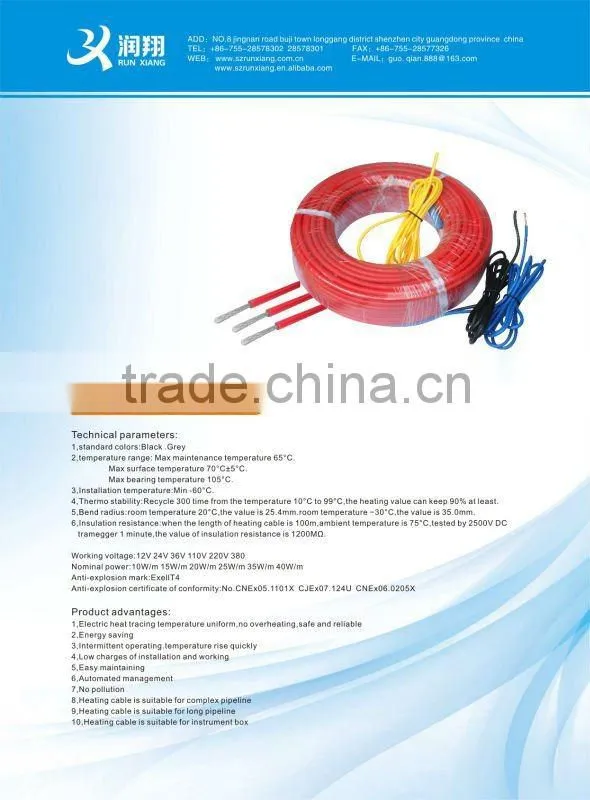

Technical parameters:

1,standard colors:Black .Grey

2,temperature range: Max maintenance temperature 65°C.

                 Max surface temperature 70°C±5°C.

                 Max bearing temperature 105°C.

3,Installation temperature:Min -60°C.

4,Thermo stability:Recycle 300 time from the temperature 10°C to 99°C,the heating value can keep 90% at least.

5,Bend radius:room temperature 20°C,the value is 25.4mm.room temperature −30°C,the value is 35.0mm.

6,Insulation resistance:when the length of heating cable is 100m,ambient temperature is 75°C,tested by 2500V DC tramegger 1 minute,the value of insulation resistance is 1200MΩ.



Working voltage:12V 24V 36V 110V 220V 380

Nominal power:10W/m 15W/m 20W/m 25W/m 35W/m 40W/m

Anti-explosion mark:ExellT4

Anti-explosion certificate of conformity:No.CNEx05.1101X  CJEx07.124U  CNEx06.0205X



Product advantages:

1,Electric heat tracing temperature uniform,no overheating,safe and reliable

2,Energy saving

3,Intermittent operating:temperature rise quickly

4,Low charges of installation and working

5,Easy maintenance

6,Automated management

7,No pollution

8,Heating cable is suitable for complex pipeline

9,Heating cable is suitable for long pipeline

10,Heating cable is suitable for instrument box
