floor water proof silicone heating cable

Specifications

1,Energy saving
2,Low charges of installation and working
3,Easy maintaining
4,Automated management
5,No pollution



pipe freeze water proof  silicone heating cable

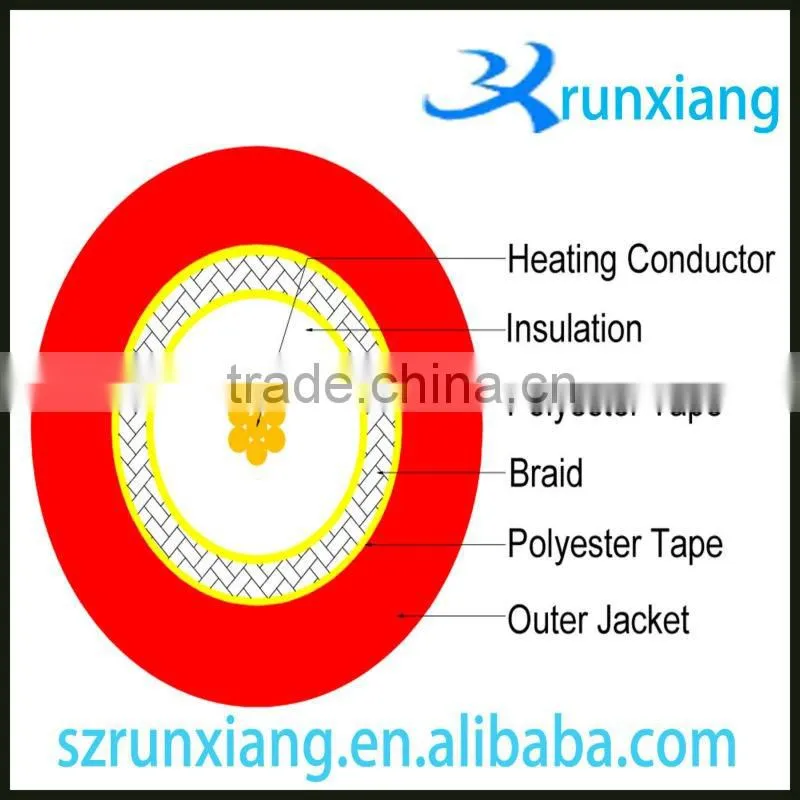

the cross section of item





HEATING CABLE SELF-REGULATING

Technical parameters

1,temperature range: Max maintenance temperature 65°C.

                                     Max surface temperature 70°C±5°C.

                                       Max bearing temperature 105°C.

2,Installation temperature:Min -60°C.

3,Thermo stability:Recycle 300 time from the temperature 10°C to 99°C,the heating value can keep 90% at least.

4,Bend radius:room temperature 20°C,the value is 25.4mm.room temperature −30°C,the value is 35.0mm.

5,Insulation resistance:when the length of heating cable is 100m,ambient temperature is 75°C,tested by 2500V DC tramegger 1 minute,the value of insulation resistance is 1200MΩ.

SPECIFICATION

Product Type	Rated power (W/ROOT)	Standard length (M/ROOT)	Nominal resistance (Ω/ROOT)	Resistance per meter (Ω/M)
RXRL/1R300/18	300	16.67	161.33	9.86
RXRL/1R500/18	500	27.78	96.8	3.485
RXRL/1R550/18	550	30.56	88	2.88
RXRL/1R700/18	700	38.89	69.14	1.778
RXRL/1R800/18	800	44.44	60.5	1.361
RXRL/1R1000/18	1000	55.56	48.4	0.871
RXRL/1R1100/18	1100	61.11	44	0.72
RXRL/1R1200/18	1200	66.67	40.33	0.605
RXRL/1R1300/18	1300	72.22	37.27	0.516

the specificatin of the item :

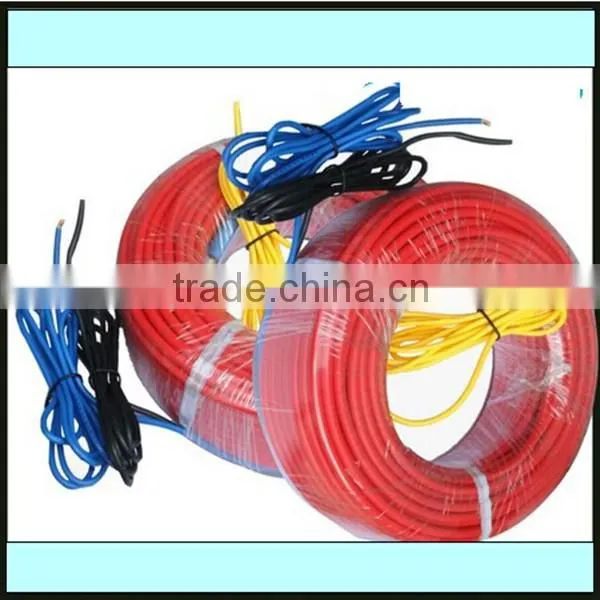

PICTUER
