Electric Floor Heating Cable 220V

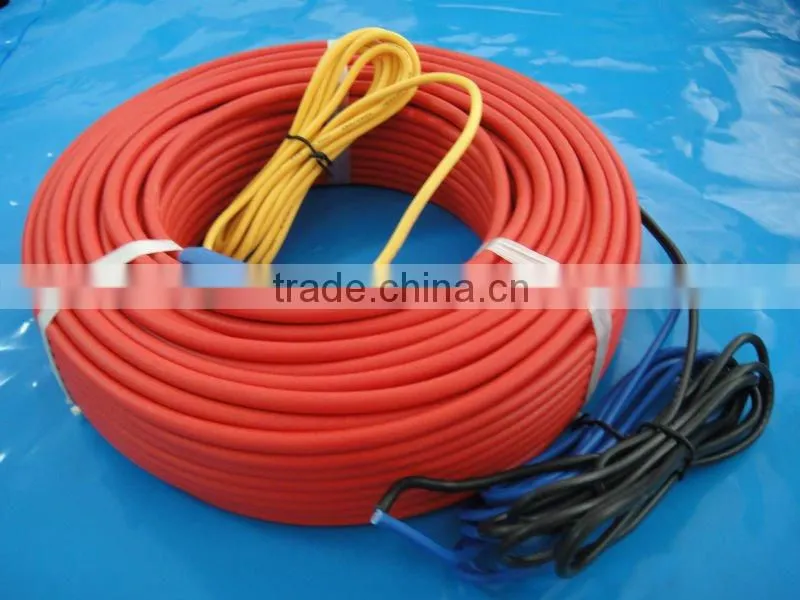

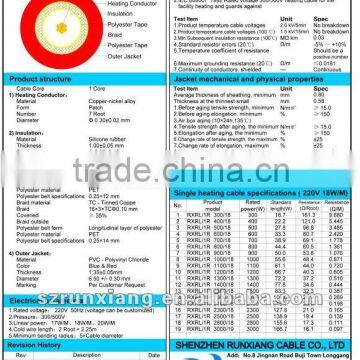

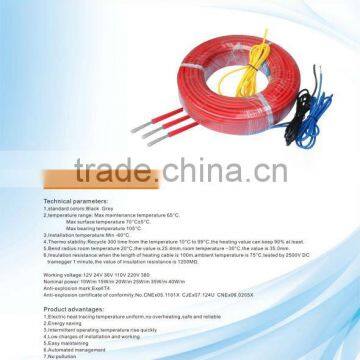

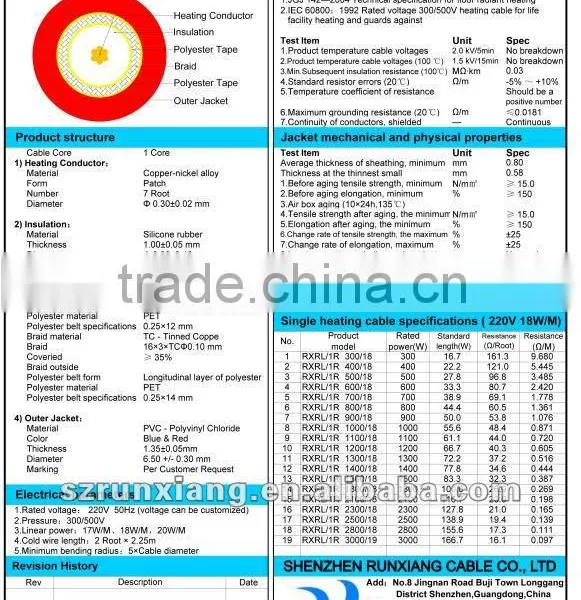

Specifications

Electric Floor Heating Cable 220V
1.Rated voltage: 220V 50Hz
2.Pressure:300/500V
3.Linear powe:18W/M,

Electric Floor  Heating Cable 220V

Electrical Performance



Reference Standard:



1.JGJ 142—2004 Technical specification for floor radiant heating



2.IEC 60800:1992 Rated voltage 300/500V heating cable for life



facility heating and guards against



 Test Item                                                                     Unit         Spec

1.Product temperature cable voltages          2.0 kV/5min    No breakdown

2.Product temperature cable voltages (100 °C)   1.5 kV/15min    No breakdown

3.Min.Subsequent insulation resistance (100°C)       MΩ·km       0.03

4.Standard resistor errors (20°C)                         Ω/m        -5% ~ +10%

5.Temperature coefficient of resistance                              Should be a

                                                                                                       positive number

6.Maximum grounding resistance (20°C)         Ω/m          ≤0.0181

7.Continuity of conductors, shielded                    —          Continuous

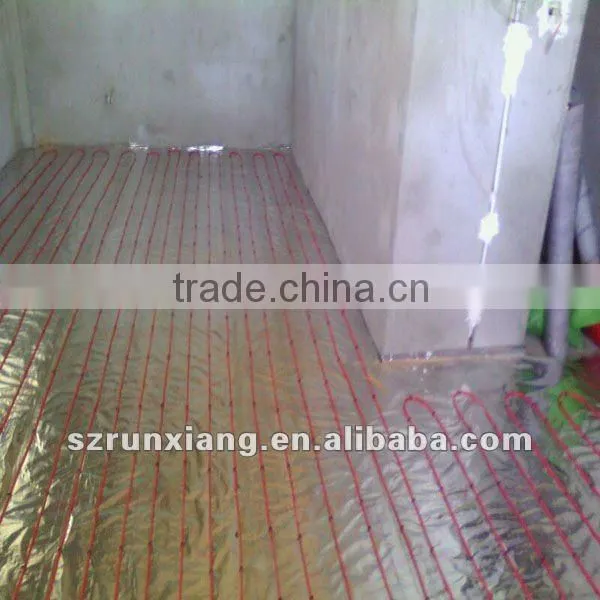

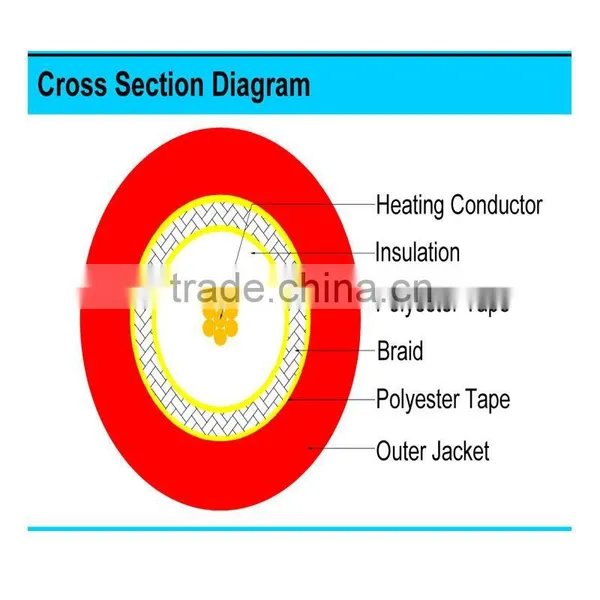

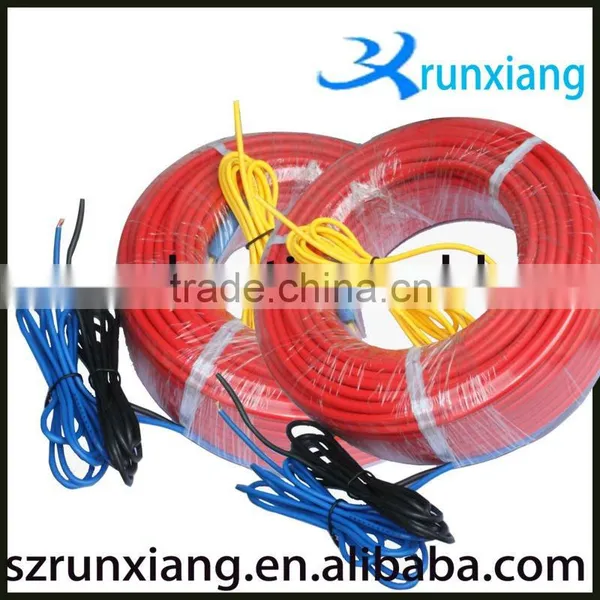

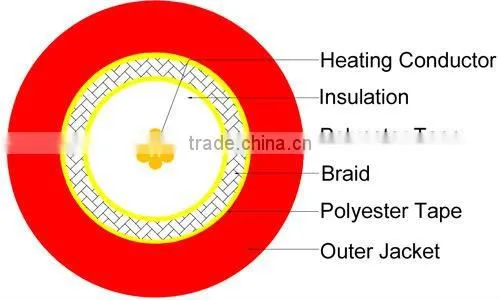

Product structure



Heating Conductor		Shield
Material	Copper-nickel alloy	Outside insulation
Form	Patch	Polyester belt form	Longitudinal layer of polyester
Number	7 Root	Polyester material	PET
Diameter	Φ 0.30±0.02 mm	Polyester belt specifications	0.25×12 mm
Cable Core	1 Core	Braid material	TC - Tinned Copper
Insulation		Braid	16×3×TCΦ0.10 mm
Material	Silicone rubber	Covered	≥ 35%
Thickness	1.00±0.05 mm	Braid outside
Diameter	Φ 3.00±0.10 mm	Polyester belt form	Longitudinal layer of polyester
Number and color	1 Root:Transparent Color	Polyester material	PET
Marking	Per Customer Request	Polyester belt specifications	0.25×14 mm
Outer Jacket
Material	PVC - Polyvinyl Chloride	Thickness	1.35±0.05mm
Color	Blue & Red	Diameter	6.50 +/- 0.30 mm







Single heating cable specifications ( 220V 18W/M)



Product Type	Rated power (W/ROOT)	Standard length (M/ROOT)	Nominal resistance (Ω/ROOT)
RXRL/1R300/18	300	16.67	161.33
RXRL/1R500/18	500	27.78	96.8
RXRL/1R800/18	800	44.44	60.5
RXRL/1R1000/18	1000	55.56	48.4
RXRL/1R1500/18	1500	83.33	32.27
RXRL/1R1800/18	1800	100	26.89
RXRL/1R2300/18	2300	127.78	21.04
RXRL/1R2500/18	2500	138.89	19.36
RXRL/1R3000/18	3000	166.67	16013



Remarks: according to customer requirements
