self-supporting FRP strength member FTTH outdoor fiber optic cable GJYXFCH
ftth outerdoor steel strength member
GJYXKFCV-NON-METALLIC STRENGTHENED , LSZH JACKET ,SELF-SUPPORTING BUTTERFLY INTRODUCTION OF FIBER OPTIC CABLE

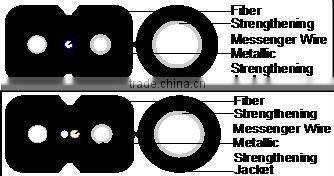

A SECTION DRAWING

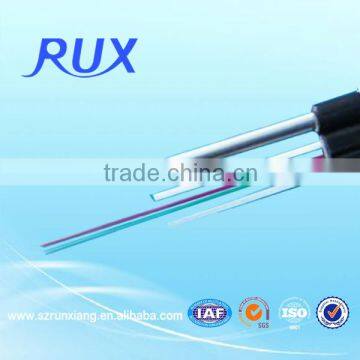

FIBER PICTURE
Fiber Mechanics Characteristics
Tensile force | Flatting force | ||||
Short-time (construction) | Long-time (run) | Units | Short-time (construction) | Long-time (run) | Units |
≤ 600 | ≤ 300 | N | ≤ 2200 | ≤ 1000 | N/100mm |
Minimum bend radius | Temperature range (°C) | ||||
Static (working) | Dynamic (installation) | Units | Storage | Installation | Operating |
≥ 30 | ≥ 60 | mm | -20°C~+70°C | -5°C~+40°C | -40°C~+60°C |
Product Structure
1)Singlemode fiber parameters
Fiber Type:ITU-T G657A
Fiber specification:62.5/125/245 μm
Number of fibers:1 Root
Core diameter:62.5 ±2.5 μm
Core Non-Circularity: ≤1.0%
Core Concentricity Error ≤0.5 μm
Coating diameter:245 ±10 μm
Color code:1C.Blue
2)Non-Metallic Strengthening
Total number of root:2 Root
Material:KFRP
Diameter:0.50mm
3)Strengthening Messenger wire
Total number of root:1 Root
Material:phosphating steel wire
Diameter:1.20 ±0.05mm
Thickness:0.45 ±0.02mm
4)Outer Jacket
Material:PVC-Polyvinyl Chioride
Color:Black&White
Diameter:2.0*5.1 ±0.20mm
Marking:Per customer request
5)Other Characteristics
1.cable net weight:1c 22.0kg/km
2c 22.0kg/km
2.Product Length:500m/plywood drum
1000m/plywood drum
2000mplywood drum

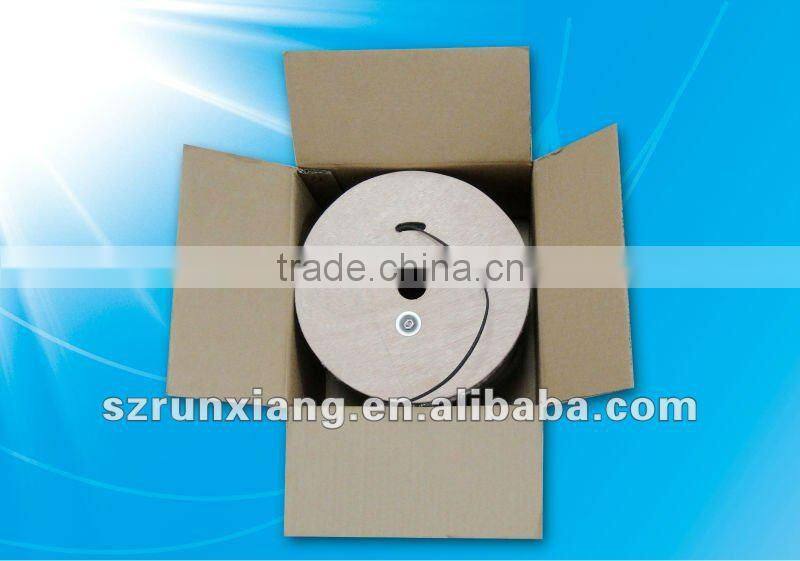

The cables will be shipped on wooden drums.
Inner packing: rolled by wooden Drum
Out packing: one drum in a carton box
1.We are professional manufacture of optical fiber cables in China.
2.OEM is accepted.
3.The cable size and material are customized,and your own logo or design are welcome.
4.We'll reply you in 12 hours after you send enquiry to us
We have the ISO9000 ISO9002 and Sira certification
Company Profile

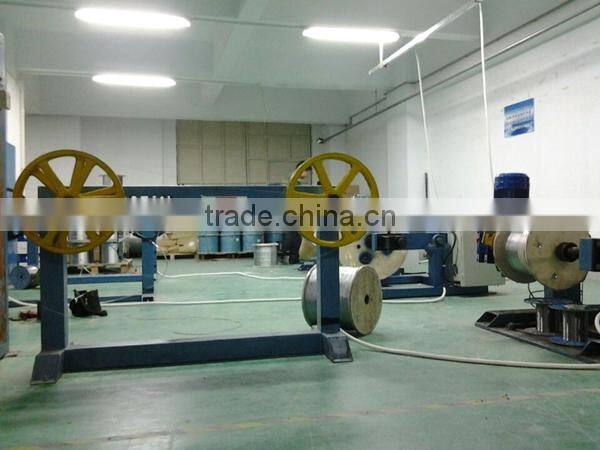

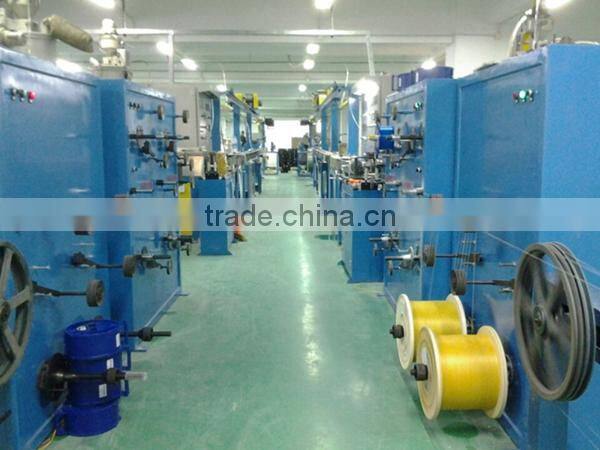

Production Workshop
