Home > Products > Communication cable > cat3 cable pvc sheathed
cat3 cable pvc sheathed
- 100000 Meter / Meters per Month
- SHENZHEN
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | szrunxiang | Model Number: | RX-CAT3 LAN CABLE |
Type: | Cat 3 |
Product Description
Specifications
1.25 pairs utp solid cable2.HDPE insulation
3.PVC jacket
4.OEM
5.BC solid copper

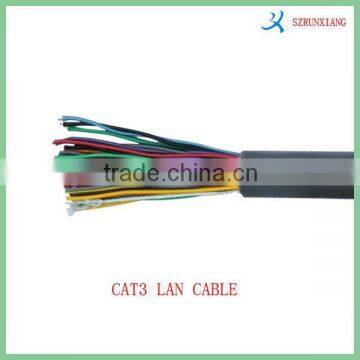

CAT 3 UTP LAN CABLE
APPLICATIONS
Telephony voice wiring
10 Base-T
100Base-T4
Token Ring
100VG-AnyLAN
INDUSTRIAL STANDARD
UL444
IEC 322-1
TIA/EIA-568-B.2
ISO/IEC11801,EN50173
PRODUCT DESCRIPTION
Bandwidth up to 16MHz
Flammability grade availability on CMX,CM,CMG&CMR
LSZH Sheath ,Polyethylene Sheath available
Suitable for horizontal (2,4 pairs)and vertical (25,50&100 pairs)
SPECIFICATION
ELECTRICAL | MACHANICAL | |||||
TEST ITEMS | UNITS | SPEC | TEST OBJECT | SHEATH | ||
DC Resistance 20°C | Conductor | Ω/100m | ≤9.5 | Test Material | PVC | |
Before Tensile Strength(Mpa) | ≥13.5 | |||||
Aging Elongation(%) | ≥150 | |||||
Unbalance | % | ≤2.5 | Aging Condition(°C×hrs) | 100×168 | ||
Before Tensile Strength(Mpa) | ≥12.5 | |||||
Aging Elongation(%) | ≥125 | |||||
Dielectric Strength between Pairs | kv/min | ≥1.0 | Cold Bend(-20±°C×4hrs) | No crack | ||
Insulation Resistance | MΩ·km | ≥5000 | Operating Temperature Range | -20°C To +75°C | ||
Capacitance | nF/100m | ≤6.6 | Min.Bending Radius(Install) | 8×D | ||
Unbalance Capacitance | pF/100m | ≤330 | ||||
Characteristic impedance(1 to 100MHz) | Ω | 100±15 | ||||
Short or Open of the loop | — | None | ||||
Shield | — | — | ||||
Other Characteristics | Length | Net Weight | ||||
Pully Box | Plywood | 141kg/km | ||||
305 | 500 | 1000 | 2000 |
