Lan Cable cat 3 utp indoor 2 pairs

Name: Lan Cable cat 3 utp indoor 2 pairs
Brand: szrunxiang
Price: Negotiable

FOB Price

Negotiable / Kilometer

100 Kilometers(Min.Order)

Product Details

Place of Origin:

Guangdong, China

Brand Name:

szrunxiang

Model Number:

RX-L3.1N-UTP

1. SUPPLY 10000 KILOMETER
2. CONDUCTION METERIAL IS BARE COPPER
3. ISO9001:2000
4. ISO9001:2000
5. OEM

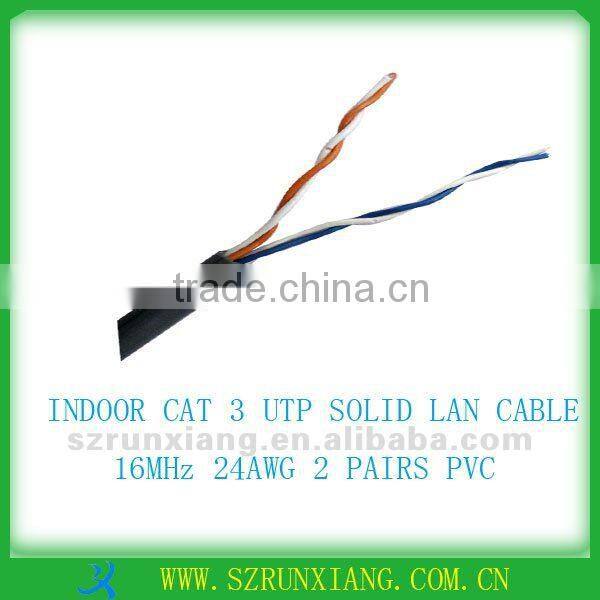

INDOOR CAT 3 UTP SOLIDE LAN CABLE 16MHz 24AWG 2 PAIRS PVC

PART NO.RX-L3.IN-UTP2-24-PVC

PRODUCTION DETAILS

ELECTRICAL				MACHANICAL
TEST ITEMS		UNITS	SPEC	TEST OBJECT		SHEATH
DC Resistance 20°C	Conductor	Ω/100m	≤9.5	Test Material		PVC
				Before Tensile Strength(Mpa)		≥13.5
				Aging Elongation(%)		≥150
	Unbalance	%	≤2.5	Aging Condition(°C×hrs)		100×168
				Before Tensile Strength(Mpa)		≥12.5
				Aging Elongation(%)		≥125
Dielectric Strength between Pairs		kv/min	≥1.0	Cold Bend(-20±°C×4hrs)		No crack
Insulation Resistance		MΩ·km	≥5000	Operating Temperature Range		-20°C To +75°C
Capacitance		nF/100m	≤6.6	Min.Bending Radius(Install)		8×D
Unbalance Capacitance		pF/100m	≤330	Pair Color Code Chart
Characteristic impedance(1 to 100MHz)		Ω	100±15	Pair No.		Color
Short or Open of the loop		—	None	1		a White b Blue
Shield		—	—	2		a White b Orange
Other Characteristics		Length				Net Weight
		Pully Box		Plywood		16kg/km
		305	500	1000	2000

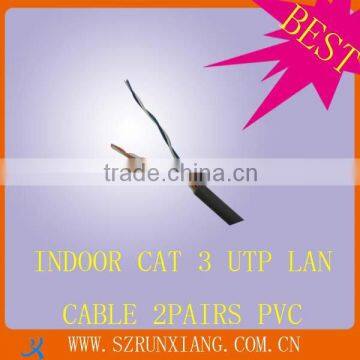

PICTURE SHOW
