cat3 cable 24AWG

FOB Price

Negotiable / Meter

1000 Meters(Min. Order)

Port SHENZHEN
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	szrunxiang
Model Number	RX-CAT3 LAN CABLE		Type	Cat 3

Product Description

Specifications

1.25 pairs utp solid cable
2.HDPE insulation
3.PVC jacket
4.OEM
5.BC solid copper

CAT 3 UTP LAN CABLE

APPLICATIONS

Telephony voice wiring

10 Base-T

100Base-T4

Token Ring

100VG-AnyLAN

INDUSTRIAL STANDARD

UL444

IEC 322-1

TIA/EIA-568-B.2

ISO/IEC11801,EN50173

PRODUCT DESCRIPTION

Bandwidth up to 16MHz

Flammability grade availability on CMX,CM,CMG&CMR

LSZH Sheath ,Polyethylene Sheath available

Suitable for horizontal (2,4 pairs)and vertical (25,50&100 pairs)

SPECIFICATION

ELECTRICAL				MACHANICAL
TEST ITEMS		UNITS	SPEC	TEST OBJECT		SHEATH
DC Resistance 20°C	Conductor	Ω/100m	≤9.5	Test Material		PVC
				Before Tensile Strength(Mpa)		≥13.5
				Aging Elongation(%)		≥150
	Unbalance	%	≤2.5	Aging Condition(°C×hrs)		100×168
				Before Tensile Strength(Mpa)		≥12.5
				Aging Elongation(%)		≥125
Dielectric Strength between Pairs		kv/min	≥1.0	Cold Bend(-20±°C×4hrs)		No crack
Insulation Resistance		MΩ·km	≥5000	Operating Temperature Range		-20°C To +75°C
Capacitance		nF/100m	≤6.6	Min.Bending Radius(Install)		8×D
Unbalance Capacitance		pF/100m	≤330
Characteristic impedance(1 to 100MHz)		Ω	100±15
Short or Open of the loop		—	None
Shield		—	—
Other Characteristics		Length				Net Weight
		Pully Box		Plywood		141kg/km
		305	500	1000	2000

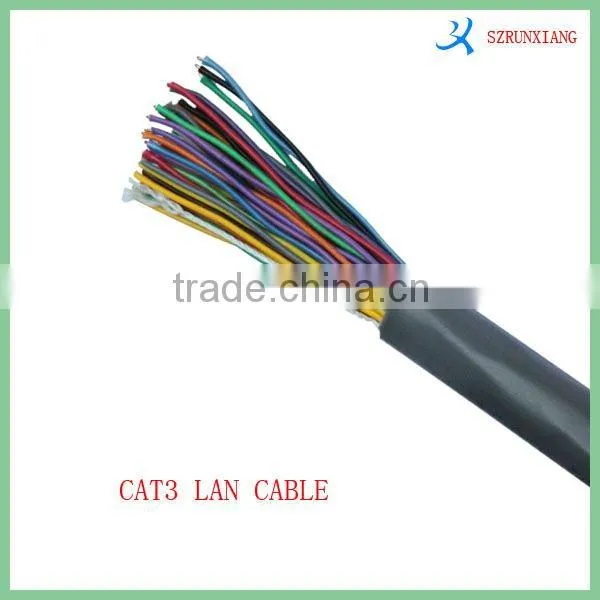

CAT3 LAN CABLE
