Hot Communication Cable Utp 4pr 24awg Cat 5e Cable
Specifications
cat 5e cable1.utp 4pr 24awg cat 5e cable
2.fast delivery
3.high standrad ISO 9001-2000
4.OEM is ok
Hot communication cable utp 4pr 24awg cat 5e cable
The cross section of cat 5e
| the instrution of the cable | ||||||||
| pairs : | 2 pair | thickness of ouer jacktet | 0.7+/-0.05mm | |||||
| pairs : | 2 pair | Min thickness | 0.6mm | |||||
| conductor material | BC-bare copper | outer diameter | Φ 5.20-Φ 2.40/±0.30 mm | |||||
| outer jacket material | LDPE | wire gage | 24AWG | |||||
| color of jacket | black | zinc-coated wire | Φ 0.90mm(Φ 0.30mm×7) | |||||
| test item | unit | standard | test item | jacket | ||||
| the single conductor DC resistance | Ω/100m | ≤9.5 | test material | LDPE | ||||
| wire of DC resistance unbalance | % | ≤2.5 | use temperature rate | -40°Cto+60°C | ||||
| the conductor dielectric intensity | kv/min | ≤1.0 | the cable weight | 26 kg /km | ||||
| the insulation DC resistance | MΩ·km | ≥5000 | ||||||
| the working capacitance | nF/100m | ≤5.6 | OEM is ok | |||||
| the insulation wire do not mix the wire and the cores mixed wire | — | cores mixed wire wire break | ||||||
Our Service
1.We are professional manufacture of optical fiber cables in China.
2.OEM is accepted.
3.The cable size and material are customized,and your own logo or design are welcome.
4.We'll reply you in 12 hours after you send enquiry to us
Certification

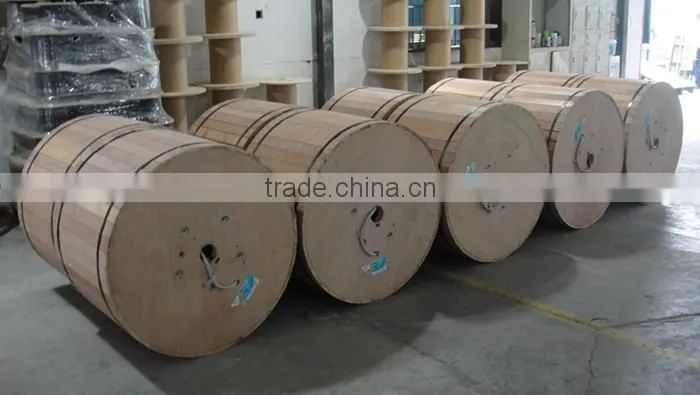

Factory
