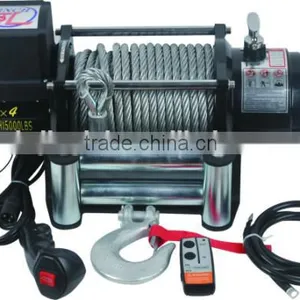

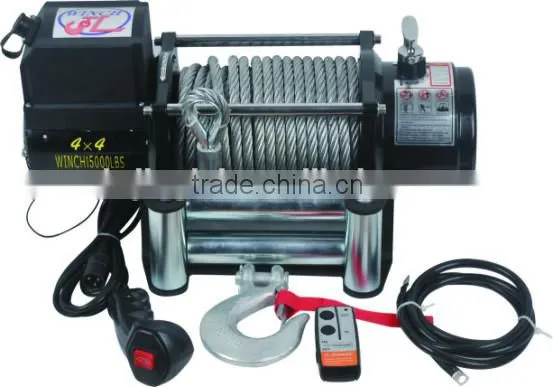

Help Center15000LBS Heavy Duty Truck Winch
Related Products
-
CE Approved Winch 10000LBS / ROSH Approved Winch/ 4WD WinchUS$ 160 - 180MOQ: 5 Units -
12500LBS Auto WinchUS$ 150 - 200MOQ: 10 Units
-
16500LBS Heavy Duty Electric WinchUS$ 240 - 280MOQ: 5 Units
-
12000lbs Electric Auto Winch / Double Way Brake Model Winch / Silence WinchUS$ 150 - 200MOQ: 5 Pieces
-
Winch Quick Mounting System / Winch Mounting Frame / Electric Winch Mounting FrameUS$ 10 - 30MOQ: 50 Pieces
heavy duty truck winch ;
1. 12v or 24V DC ;
2. Water proof ;
3. Low noise, (with Patent brake; Patent No: 201410553072.9 ) ;
4. continuous working time: above 2 hours
5. Double-way brake model(with 2 choices for installation on auto);
6. 3 years warranty.
Product Description:
Specification
Single line rated pull |
15000lbs (5909kgs) |
Motor |
6.0hp/4.5kw, series wound |
Control |
Remote switch |
Extra wireless remote switch |
Optional |
Gear train |
3 stage planetary |
Gear reduction ratio |
358.4:1 |
Braking |
Automatic load-holding brake |
Drum size |
Diameter 3.5’’ (88mm) x length 8.7’’(221.6mm) |
Cable |
11mm x 26m |
Remote control switch |
Included |
Battery |
Recommended:650 CCA |
Net weight |
52kgs |
Overall dimension(Length x width x height ) |
555 x 196 x 249 mm |
Mounting bolt pattern |
10’’ x 4.5’’ (254x114.3mm) |
Pull , speed , amps
Line pull lbs (kgs) |
Line speed ft./min (m/min) |
Current A |
0 |
23.9(7.28) |
68 |
2000(909) |
12.2(3.7) |
100 |
4000(1818) |
9.3(2.8) |
155 |
6000(2727) |
7.4(2.25) |
185 |
8000(3636) |
6.0(1.83) |
235 |
10000(4545) |
5.1(1.55) |
275 |
12000(5454) |
4.4(1.34) |
330 |
15000(6818) |
3.3(1.0) |
435 |
Line pull and rope capacity in layer
Layer |
Rated line pull lbs (kgs) |
Total rope on drum ft(M) |
1 |
15000(6818) |
20.4(6.22) |
2 |
13780(6263) |
42.44(12.94) |
3 |
11200(5091) |
66.74(20.35) |
4 |
9390(4268) |
85.28(26.0) |
