Product Description:

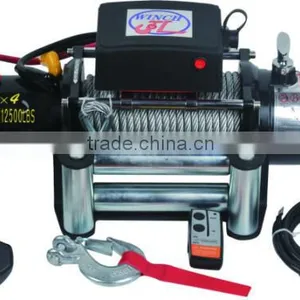

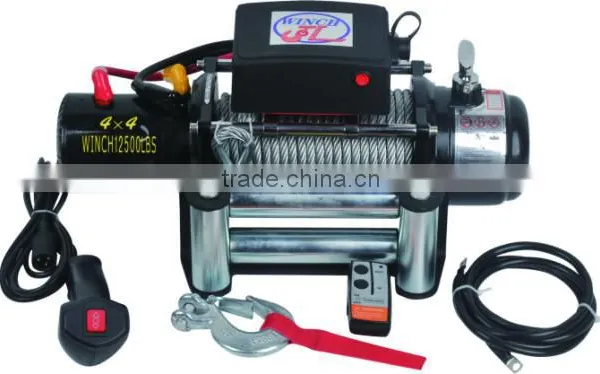

JL-12500 LBS auto winch
1. 12v or 24V DC ;
2. Water proof ;
3. Low noise (with patent brake system; Patent No: 201410553072.9 ) ;
4. continuous working time: above 2 hours
5. Double-way brake model(with 2 choices for installation on Auto);
6. 3 years warranty.
Specification
Single line rated pull |
12500lbs (5681kgs) |
Motor |
6.0hp/4.5kw, series wound |
Control |
Remote switch |
Extra wireless remote switch |
Optional |
Gear train |
3 stage planetary |
Gear reduction ratio |
194:1 |
Braking |
Automatic load-holding brake |
Drum size |
Diameter 2.5’’ (63.5mm) x length 9.6’’(224mm) |
Cable |
3/8’’ (9.5mm) x 85’(26m) |
Remote control switch |
Included |
Battery |
Recommended:650 CCA |
Net weight |
40.5kgs |
Overall dimension(Length x width x height ) |
20.8’’ x 6.3’’x 8.6’’ (530x160x218mm) |
Mounting bolt pattern |
10’’ x 4.5’’ (254x114.3mm) |
Pull , speed , amps
Line pull lbs (kgs) |
Line speed ft./min (m/min) |
Current A |
0 |
21.3(6.5) |
65 |
2000(909) |
11.5(3.5) |
126 |
4000(1818) |
9.4(2.85) |
175 |
6000(2727) |
7.9(2.4) |
230 |
8000(3636) |
6.5(2.0) |
280 |
10000(4545) |
5.8(1.75) |
355 |
12500(5681) |
4.26(1.3) |
397 |
Line pull and rope capacity in layer
Layer |
Rated line pull lbs (kgs) |
Total rope on drum ft(M) |
1 |
12500(5681) |
17(4.8) |
2 |
9210(4178) |
41(12.0) |
3 |
8030(3642) |
71(21.0) |
4 |
6894(3127) |
85(26.0) |
