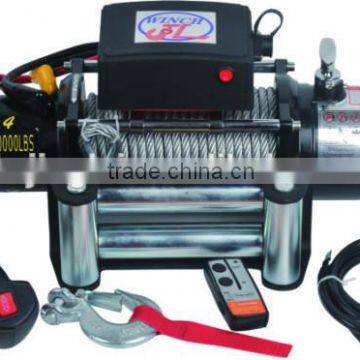

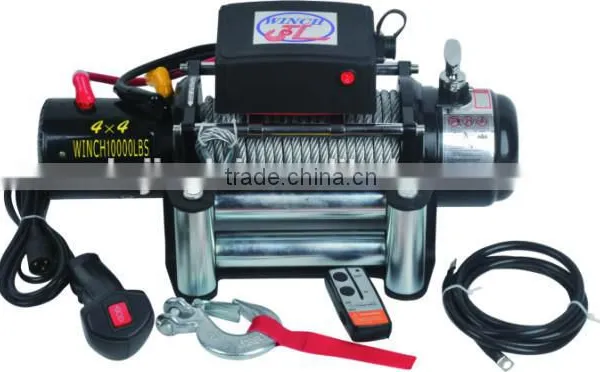

10000lbs winch:
1. 12v or 24V DC ;
2. Water proof ;
3. Low noise(silence with patent ; Patent No: 201410553072.9 );
4. continuous working time: above 2 hours;
5. Double-way brake model(with 2 choices for installation on auto);
6. 3 years warranty & long life time.
Product Description:
JL-10000 LBS
Specification
Single line rated pull |
10000lbs (4536kgs) |
Motor |
6.0hp/4.5kw, series wound |
Control |
Remote switch |
Extra wireless remote switch |
Optional |
Gear train |
3 stage planetary |
Gear reduction ratio |
196:1 |
Braking |
Automatic load-holding brake |
Drum size |
Diameter 2.5’’ (63.5mm) x length 9.6’’(224mm) |
Cable |
3/8’’ (9.2mm) x 85’(26m) |
Remote control switch |
Included |
Battery |
Recommended:650 CCA |
Net weight |
40kgs |
Overall dimension(Length x width x height ) |
20.8’’ x 6.3’’x 9.6’’ (529x160x245mm) |
Mounting bolt pattern |
10’’ x 4.5’’ (254x114.3mm) |
Pull , speed , amps
Line pull lbs (kgs) |
Line speed ft./min (m/min) |
Current A |
0 |
22.0(6.8) |
80 |
4000 (1814) |
11.5(3.5) |
170 |
6000(2722) |
9.2(2.8) |
210 |
8000(3629) |
7.8 (2.4) |
260 |
10000(4536) |
6.5(2.0) |
320 |
Line pull and rope capacity in layer
Layer |
Rated line pull lbs (kgs) |
Total rope on drum ft(M) |
1 |
10000(4536) |
17(4.8) |
2 |
7990 (3634) |
41(12.0) |
3 |
6650(3016) |
71(21.0) |
4 |
5700(2585) |
85(26.0) |
CE approved winch
1. winches for 4x4;
2. 12v DC ;
3. water proof ;
4. Low noise;
5. 3 years warranty.
6. with wireless control switch, easy installation.
7. Nylon wire (optional).
