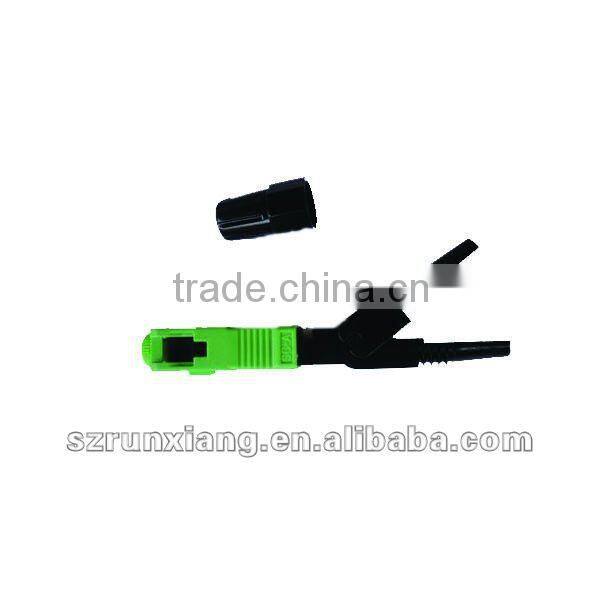

Plastic Single Mode Simplex SC-APC Fiber Optical Cable Fast Connector
Specifications
1.easy to operate ,save the timeuce ftth cost
3.no need special assembling tool
Δ
plastic SC-APC fiber optical fast connector
feature
1. easy to operate can save time
2.high return loss
3.easy to assembling with mechanical splice and no polishing
4. high stablity ,low inser tion loss ,high return
welcome to contact to us ,we can meet your requirement !
the detail information of the product
DATA SHEET
ITEM | Technical Parameters |
Applicable for | Drop cable.Indoor cable |
Optical fiber diameter | 125μm ( 657A & 657B ) |
Tight buffer diameter | 250μm |
Fiber mode | Single mode |
Operation time | About 100s(no fiber cut) |
Insert loss | ≤ 0.3dB(1310nm & 1550nm) |
Return loss | ≤ -50dB |
Fastening strength of naked fiber | >5 N |
Fastening strength of naked fiber holder | >10 N |
Tensile strength | >50 N |
Using temperature | -40~+75°C |
On-line tensile strength (20 N) | Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
Mechanical durability (500 times) | Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
Drop-off test (drop-off height 4m, once per direction, totally 3 times) | Δ IL ≤ 0.5dB Δ RL ≤ 5dB |

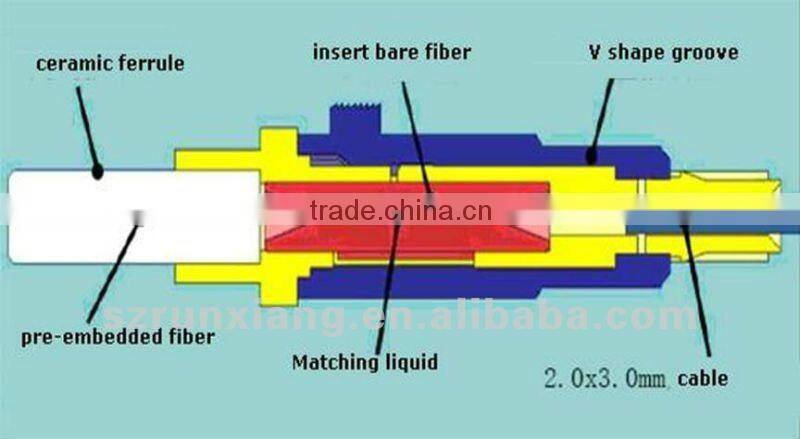

the use way of the ftth fiber cable fast connector :
