Automative CNC LASER Scaning Spot Welders for 18650 Battery Welding
Automatic Laser Welder
This machine uses double-lamp ceramic reflecting cavity imported from the Britain, featuring high
power, programmable pulse and intelligent system management. The Z-axis of the work bench can
move upwards and downwards to focus and is controlled by industrial PC. Standard separate X/Y
2D automatic moving work bench is configured. Rotary clamp (Ø80mm or Ø125mm) is also
optional. The monitor system uses microscope, red light and CCD. External cooling system is also
equipped.2-4axis Linkage CNC Control system.with video teaching program,easy to operation.
Feature
1.Ceramic converging cavity is imported from the Britain. It is corrosion resistant and high
temperature resistant, and has 8-10 years service life.
2.High production efficiency and high welding speed, realizing automatic mass production on the
production line.
3.The laser head can be adjusted for 360°.
4.The size of the light spots can be adjusted.
5.The work bench can bet moved in two dimensions.
Application
Suitable for welding of kettle, vacuum cup, stainless steel bowl, sensor, tungsten wire, high power
diode (triode), aluminum alloy, laptop shell, mobile phone battery, door handle, mould, electric
apparatus fittings, filter, nozzle, stainless steel products, golf head, zinc alloy artworks weld point,
straight line, circle, square or any plane graphs drawn by TUTOCAD.
Technical parameter
| Model | SW-ALW200 | SW-ALW300 | SW-ALW400 |
| Laser wavelength | 1064nm | ||
| Rated laser output power | 200W | 300W | 400W |
| Adjusting range of light spot | 0.1-3.0mm | ||
| Pulse width | ≤20ms | ||
| Pulse frequency | ≤100Hz | ≤100Hz | ≤100Hz |
| Sighting positioning method | Red light, CCD monitor system (optional) | ||
| NC system of the work bench | PLC or PC | ||
| Stroke of the work bench | 200*200mm to 1200*1200mm | ||
| Positioning precision | 0.02mm | ||
| Repeating positioning precision | ±0.01mm | ||
| Work bench bearing | ≤200kg | ||
| Power supply | 380V/3-phase/50Hz/60A | ||
| Cooling method | Water cooling | ||
| Master unit dimensions (L*W*H) | 1600mm*800mm*1500mm | ||

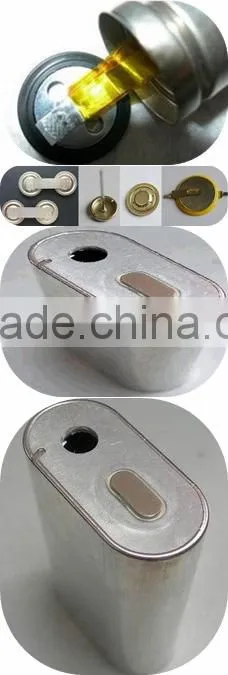

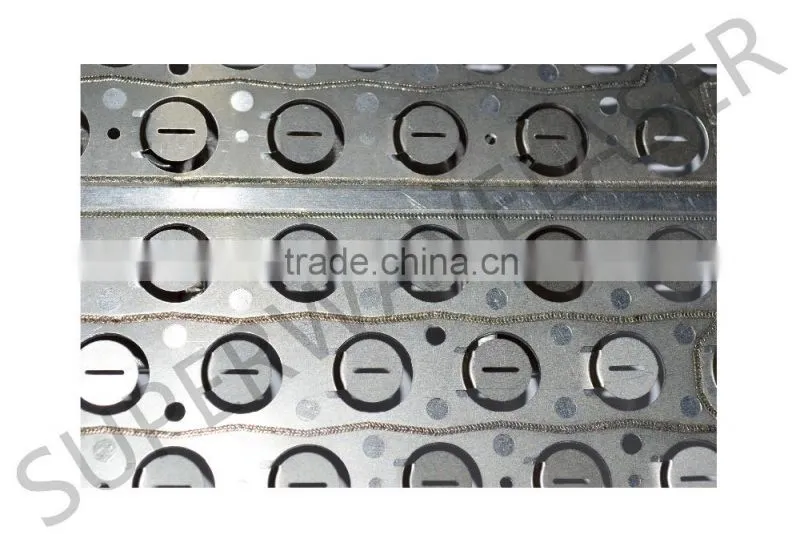

Machine and Sample
Cetificate
FAQ
1.ARE ALL INCOTERMS CAN SUPPORT?
YES,WE WILL DO OUR BEST TO MEET CUSTOMER'S NEED
2.HOW LONG THE WARRENTY IS
NORMAL IS ONE YEAR, EXTENDED WARRENTY IS DISCUSSIBLE
3.HOW TO OPERATE THE MACHINE
THERE ARE OPERATION INSTRUCTION AND VIDEO INTERPRETATION
ANY QUESTION WE WILL PROVIDE A SATISFACTORY REPLY
