Specifications
Mould Laser Welding Machines1.High single-pulse energy.
2.Welding firmly.
3.Factory price.
4.CE, ISO9001.
Top Precision Automatic Mould Laser Welding Machines
Features
1. Small heat-affected zone.
2. No deformation of the precision tools.
3. Non-contact welding and large welding depth to welding flexibly and firmly.
4. No stomata and sand hole, melting fully, without leaving traces of repair.
5. Be able to continuous work 24 hours.
Applications
The materials that can be welded are extensive, including cold work alloy steel,hot work alloy steel,normal alloy steels,stainless steel,carbon steel,nickel tool steel,high grade steel,steel alloy,high tenacity aluminum alloy,etc.
Parameters
| model | SW-LMW200 | SW-LMW300 | SW-LMW400 |
| Max. Output Power | 200W | 300W | 400W |
| Laser Wave Length | 1064nm | 1064nm | 1064nm |
| Pulse Peak Power | 80J | 120J | 140J |
| Laser Welding depth | 0.1~2.0mm | 0.1~2.5mm | 0.1~3.0mm |
| Pulse Width | ≤20ms | ≤20ms | ≤20ms |
| Pulse Frequency | ≤50HZ | ≤100HZ | ≤100HZ |
| Focus Diameter | 0.1~2.0mm | 0.1~2.0mm | 0.1~2.0mm |
| Observing System | Microscope/CCD | Microscope/CCD | Microscope/CCD |
| Power Supply | 220v±10%/50Hz | AC380V, 3Phase/50Hz | AC380V, 3Phase/50Hz |
| 3-axis stroke of workbench |
X:200mm; Y:100mm; Z:200mm (More optinal) |
X:200mm; Y:100mm; Z:200mm (More optinal) |
X:200mm; Y:100mm; Z:200mm (More optinal) |
| Workbench Loading ability | ≤200KG | ≤200KG | ≤200KG |
| Control System | Microchip CPU | Microchip CPU | Microchip CPU |
| cooling system | External water cooling (Internal cooling optional) | ||

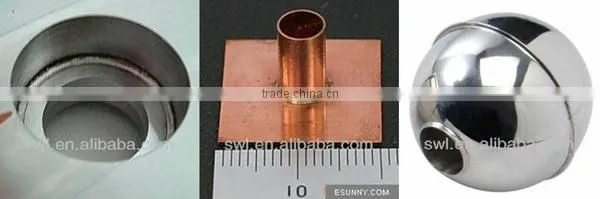

Details and samples
Accessories
Company shows
Fairs and customers
Quality Control
Certificate (CE, ISO9001)
....
