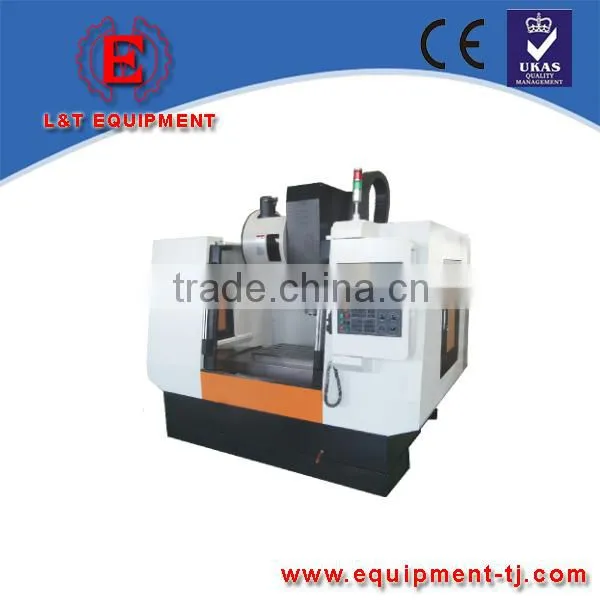

VMC850L Linear Vertical Machine Center
- 20 Set / Sets per Month
- Tianjin/Qingdao China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition | New | Place of Origin | Tianjin, China | |
Brand Name | ME | Model Number | VMC850L | |
Type | Vertical | CNC or Not | CNC | |
Voltage | CUSTOMIZED | Power(W) | 7.5/11 | |
Dimension(L*W*H) | 2700x2300x2600mm | Weight | 5500kg | |
Certification | CE, ISO | Warranty | 18 MONTHS | |
After-sales Service Provided | Engineers available to service machinery overseas |
WOODEN CASES
Product Description
VMC850L Linear Vertical Machine Center
Precision linear guide-way for X/Y/Z axis, high speed of rapid moving and high efficient cutting;
Optional rectangular sliding guide-way for Z axis, better anti-vibrating and stable in cutting;
Swing-arm ATC can realize rapid tool change and suitable for the high-efficient machining;
Imported TAIWAN original high speed high precision spindle;
Whole machining be equipped with imported P4 bearing.
Specification | ||||
Model | VMC850 | VMC1055 | ||
TRAVEL | X/Y/Z Axis travel(mm) | 800/500/500 | 1000/550/600 | |
Distance from spindle nose to worktable(mm) | 106-655 | 150-750 | ||
Distance from spindle center to column(mm) | 550 | 620 | ||
WORKTABLE | T slot(width x No. x space)(mm) | 18x3x150 | 18x5x80 | |
Worktable size(L.mm x W.mm) | 500x1050 | 550x1150 | ||
Max. loading on worktable(kg) | 800 | 800 | ||
SPINDLE | Motor power(kw) | 7.5/11 | 7.5/11 | |
Spindle speed(r.p.m.) | 60-8000 | 60-8000 | ||
Spindle taper | BT40 | BT40 | ||
Spindle bearing | P4 | P4 | ||
FEEDING | 3 axes fast moving speed | m/min)(X&Y) | 18 | 18 |
(M.min)(Z) | 15 | 15 | ||
Cutting feeding rate(mm) | 1-5000 | 1-5000 | ||
X/Y axis ball screw(diameter x space)(mm) | 40x10 | 40x10 | ||
Z axis ball screw(diameter x space)(mm) | 40x10 | 40x10 | ||
Min.set and moving unit(mm) | 0.001 | 0.001 | ||
ATC | ATC type | Manipulator | Manipulator | |
Time of tools automatic changing(near)(s) | 3 | 3 | ||
ATC capacity | 24 | 24 | ||
Max.diameter of tool(near)(mm) x Weight(kg) x length(mm) | 80x7x300 | 80x7x300 | ||
3-AXIS ACCURACY | Position accuracy(300mm) | ±0.005 | ±0.005 | |
Repeated postion accuracy(300mm) | ±0.003 | ±0.003 | ||
OTHER | Machine weight(kg) | 5500 | 6000 | |
Air pressure(kg/cm2) | 6 | 6 | ||
Porwer of cutting coolant pump(W) | 370 | 370 | ||
Porwer capacity(KVA) | 15 | 15 | ||
Overall size(L x W x H)(mm) | 2700x2300x2600 | 2900x2300x2600 | ||
CNC controller system | FANUC, Mitsubishi, Siemens828D, GSK218M | |||
Description and specification given in this catalogue are subject to modification without notice |
