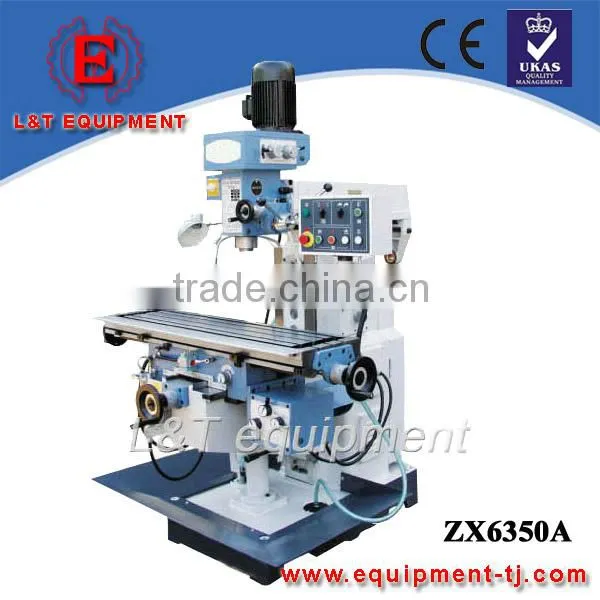

Fresadora ZX6350A H/Vertical Milling Machine
We Manufacture. Stock. Distribute

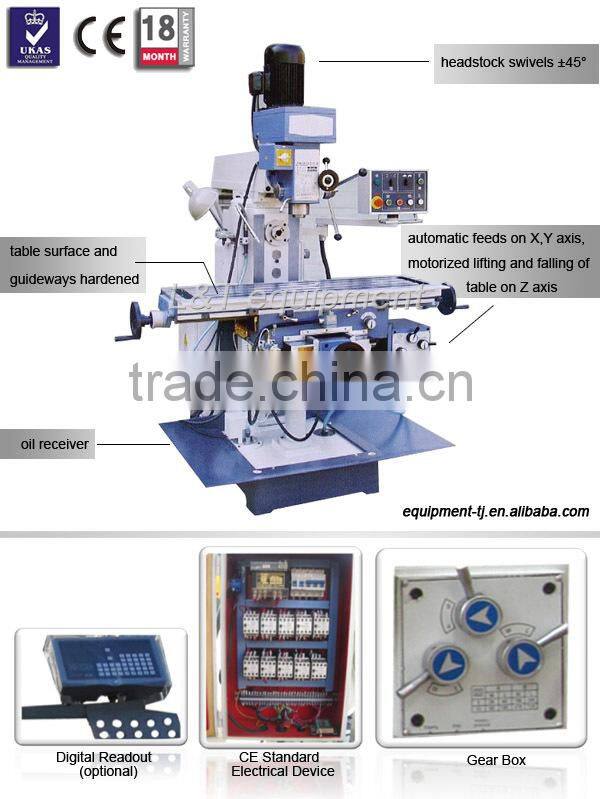

Rectangular Table Guideways With High Stability
Hardened And Ground Table Surface
Automatic Feeds on X,Y Axis, Motorized Lifting and Falling of Table on Z Axis
Headstock Swivels ±45°
1. Specifications
Specifications |
ZX6350A Fresadora Universal |
X6332A Milling Machine |
Max. Drilling Dia. (mm) |
50 |
50 |
Max. End Milling Width |
120 |
120 |
Max. Vertical Milling Dia. |
25 |
25 |
Max. Tapping Dia. |
M16 |
M16 |
Distance between Spindle nose and table surface |
100-500 |
100-500 |
Spindle Speed Range |
115-1750(V)/40-1300(H) |
115-1750(V)/40-1300(H) |
Spindle Travel |
120 |
120 |
Table Size (mm) |
1250*320 |
1270*320 |
Table Travel (X.Y.Z) (mm) |
600*320*330 |
720*320*350 |
Overall Dimension (mm) |
1660*1340*2200 |
1760*1340*2200 |
Main Motor Power (KW) |
1.5(V) 2.2(H) |
1.5(V) 2.2(H) |
N.W./G.W.(Kg) |
1500/1600 |
1650/1750 |
2. Accessories
* You can also choose optional accessories, please contact our sales for details.
3. Application Area
