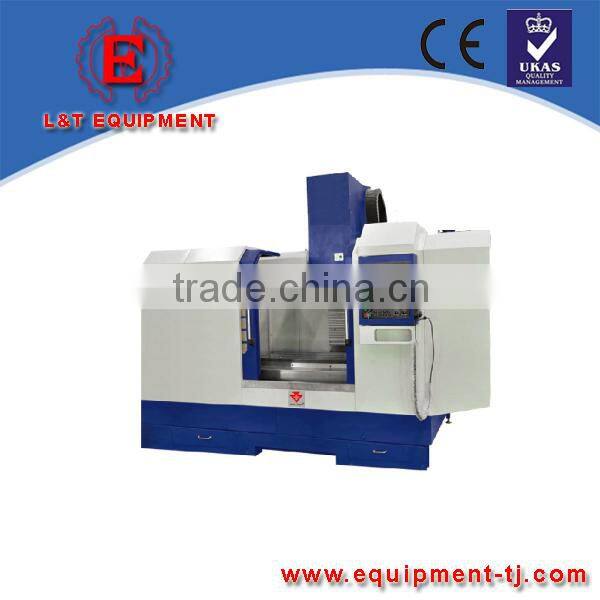

VMC 1060 Box Way Vertical Machine Center

L&T Mechanical & Electrical Equipment Co., Ltd.

5Yrs

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Tianjin, China

Brand Name:

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin/Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Tianjin, China

Brand Name ME

Model Number VMC1060

Type Vertical

CNC or Not CNC

Voltage CUSTOMIZED

Power(W) 11/15

Dimension(L*W*H) 3400x2750x2800mm

Weight 7500 kg

Certification CE, ISO

Warranty 18 MONTHS

After-sales Service Provided Engineers available to service machinery overseas

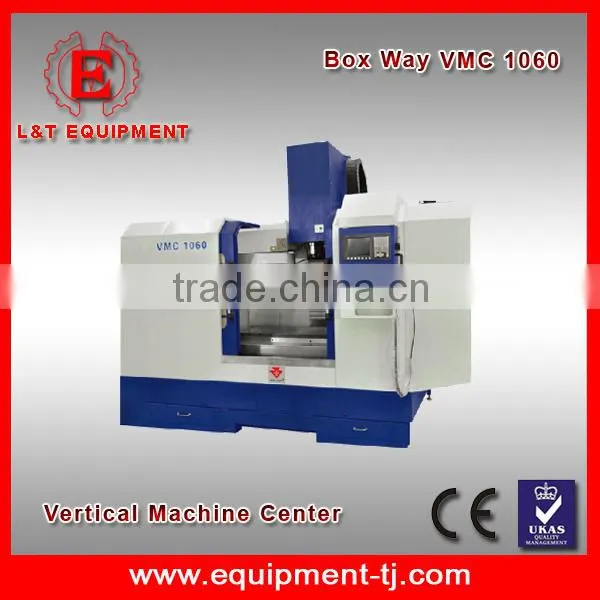

VMC 1060 Box way Vertical Machine Center

Features

Use strong rigid casting steel X/Y/Z axes are supplied with rectangular guide ways, medium frequency quenching and precisely grinding.

Guide-ways are with plastic sticker, and be precisely scrapped.

Original high speed and high precision TAIWAN spindle.

Whole machine be equipped with pump of large flow and high lift pump to insure cooling under high-speed cutting.

Specification
	Model		VMC1060
TRAVEL	X/Y/Z Axis travel(mm)		1000/600/600
	Distance from spindle nose to worktable(mm)		180-780
	Distance from spindle center to column(mm)		600
WORKTABLE	T slot(width x No. x space)(mm)		18x5x120
	Worktable size(L.mm x W.mm)		600x1300
	Max. loading on worktable(kg)		800
SPINDLE	Motor power(kw)		11/15
	Spindle speed(r.p.m.)		60-8000
	Spindle taper		BT50
	Spindle bearing		P4
FEEDING	3 axes fast moving speed	m/min)(X&Y)	18
		(M.min)(Z)	15
	Cutting feeding rate(mm)		1-5000
	X/Y axis ball screw(diameter x space)(mm)		40x10
	Z axis ball screw(diameter x space)(mm)		40x10
	Min.set and moving unit(mm)		0.001
ATC	ATC type		Manipulator
	Time of tools automatic changing(near)(s)		3
	ATC capacity		24
	Max.diameter of tool(near)(mm) x Weight(kg) x length(mm)		80x7x300
3-AXIS ACCURACY	Position accuracy(300mm)		±0.005
	Repeated postion accuracy(300mm)		±0.003
OTHER	Machine weight(kg)		7500
	Air pressure(kg/cm²)		6
	Porwer of cutting coolant pump(W)		370
	Porwer capacity(KVA)		20
	Overall size(L x W x H)(mm)		3400x2750x2800
	CNC controller system		FANUC, Mitsubishi, Siemens828D, GSK218M
