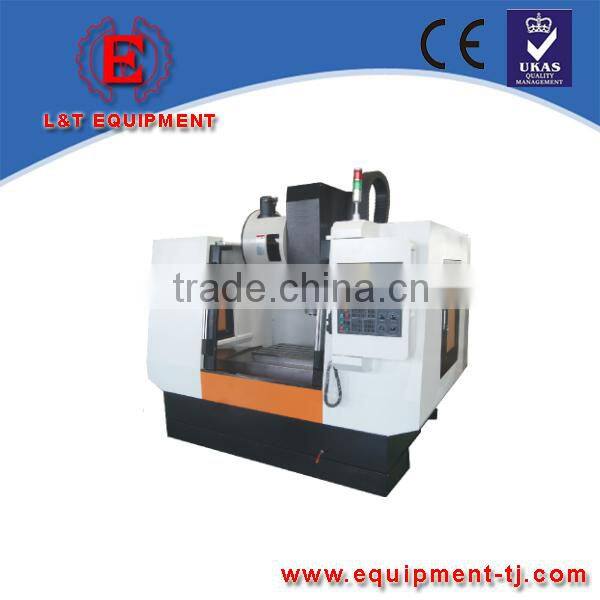

VMC850L CNC Linear Vertical Machine Center

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Tianjin, China

Brand Name:

L&T Mechanical & Electrical Equipment Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin/Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Tianjin, China

Brand Name ME

Model Number VMC850L

Type Vertical

CNC or Not CNC

Voltage CUSTOMIZED

Power(W) 7.5/11

Dimension(L*W*H) 2700x2300x2600mm

Weight 5500kg

Certification CE, ISO

Warranty 18 MONTHS

After-sales Service Provided Engineers available to service machinery overseas

VMC850L CNC Linear Vertical Machine Center

Precision linear guide-way for X/Y/Z axis, high speed of rapid moving and high efficient cutting;

Optional rectangular sliding guide-way for Z axis, better anti-vibrating and stable in cutting;

Swing-arm ATC can realize rapid tool change and suitable for the high-efficient machining;

Imported TAIWAN original high speed high precision spindle;

Whole machining be equipped with imported P4 bearing.

Specification
	Model		VMC850	VMC1055
TRAVEL	X/Y/Z Axis travel(mm)		800/500/500	1000/550/600
	Distance from spindle nose to worktable(mm)		106-655	150-750
	Distance from spindle center to column(mm)		550	620
WORKTABLE	T slot(width x No. x space)(mm)		18x3x150	18x5x80
	Worktable size(L.mm x W.mm)		500x1050	550x1150
	Max. loading on worktable(kg)		800	800
SPINDLE	Motor power(kw)		7.5/11	7.5/11
	Spindle speed(r.p.m.)		60-8000	60-8000
	Spindle taper		BT40	BT40
	Spindle bearing		P4	P4
FEEDING	3 axes fast moving speed	m/min)(X&Y)	18	18
		(M.min)(Z)	15	15
	Cutting feeding rate(mm)		1-5000	1-5000
	X/Y axis ball screw(diameter x space)(mm)		40x10	40x10
	Z axis ball screw(diameter x space)(mm)		40x10	40x10
	Min.set and moving unit(mm)		0.001	0.001
ATC	ATC type		Manipulator	Manipulator
	Time of tools automatic changing(near)(s)		3	3
	ATC capacity		24	24
	Max.diameter of tool(near)(mm) x Weight(kg) x length(mm)		80x7x300	80x7x300
3-AXIS ACCURACY	Position accuracy(300mm)		±0.005	±0.005
	Repeated postion accuracy(300mm)		±0.003	±0.003
OTHER	Machine weight(kg)		5500	6000
	Air pressure(kg/cm²)		6	6
	Porwer of cutting coolant pump(W)		370	370
	Porwer capacity(KVA)		15	15
	Overall size(L x W x H)(mm)		2700x2300x2600	2900x2300x2600
	CNC controller system		FANUC, Mitsubishi, Siemens828D, GSK218M
Description and specification given in this catalogue are subject to modification without notice
