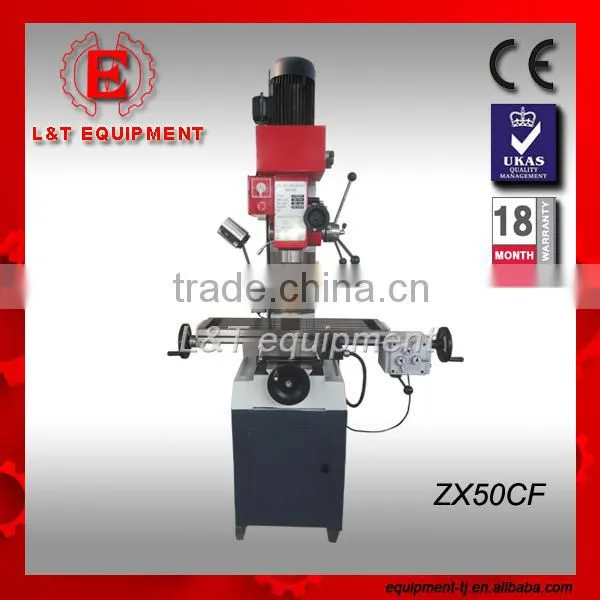

ZX50CF Competitive Price Bore Drilling Machine
We Manufacture. Stock. Distribute
1.Main Feature

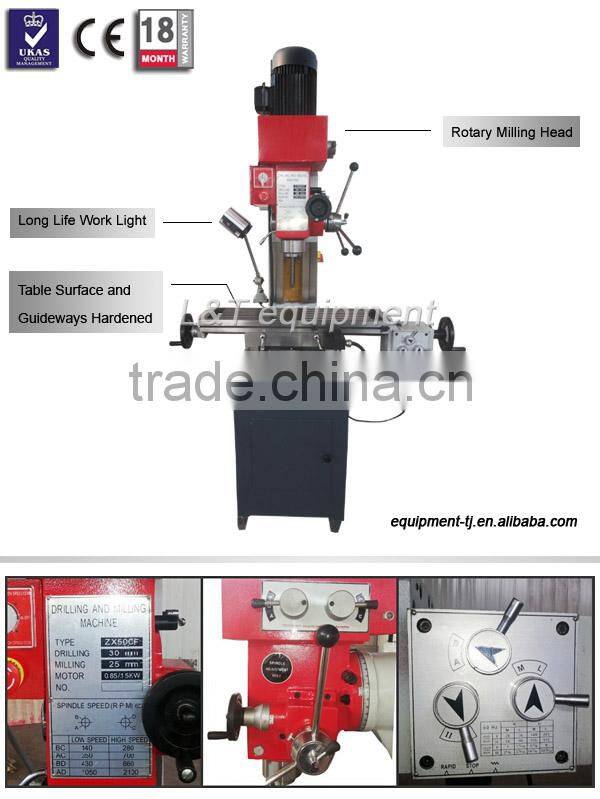

Belt-Drive Milling Head
Dovetail Table Guideways Withstand Larger Overturning Moment
Work Table Surface and Guideways Hardened by Supersonic Frequency Quenching (Depth 2-4MM)
Work Table and Guideways Made by HT200-250 High Strength Cast Iron
Rotary Head
Digital Readout (optional)
Actuator (optional)
Oil Receiver (optional)
CE ISO Certificated
18 Months Warranty
Professional Design, Easy Operation
Good helper for your machining and maintanance work in your workshops
2. Specifications
Specifications | ZX50CF Milling Machine | ZX50F Milling Machine |
Max. Drilling Dia. (mm) | 50 | 50 |
Max. Horizontal Milling Dia. | 100 | 100 |
Max. Vertical Milling Dia. | 25 | 25 |
Max. Boring Dia. | 120 | 120 |
Max. Tapping Dia. | M16 | M16 |
Spindle Taper | ISO30, MT4 | ISO30, MT4 |
Spindle Speeds Range | 115-1750(8) | 230-1825(8) |
Spindle Travel | 120 | 120 |
Table Size (mm) | 800*240 | 800*240 |
Table Travel (mm) | 400*230*380 | 400*230*380 |
Main Motor Power (KW) | 0.85/1.5 | 0.85/1.5 |
N.W./G.W.(Kg) | 500/600 | 500/600 |
3.Standard Packing List
| No. | Description | Specification | Qty |
| 1 | Milling Machine ZX50CF | 1 | |
| 2 | Drilling Chuck | 16 | 1 |
| 3 | Hexagon Spanner | 5 | 1 |
| 4 | Wedge Shifter | 1 | |
| 5 | Reduction Sleeve | 1 | |
| 6 | Draw Bar | 1 | |
| 7 | Spindle Bar | 1 | |
| 8 | Wrench | S21-24 | 1 |
| 9 | Machine Vice | 160 | 1 |
| 10 | Milling Chuck | 1 | |
| 11 | Operation Manual | 1 | |
| 12 | Quality Certificate | 1 | |
| 13 | Packing list | 1 |
* You can also choose optional accessories, please contact our sales for details.
4. More Sample Picture

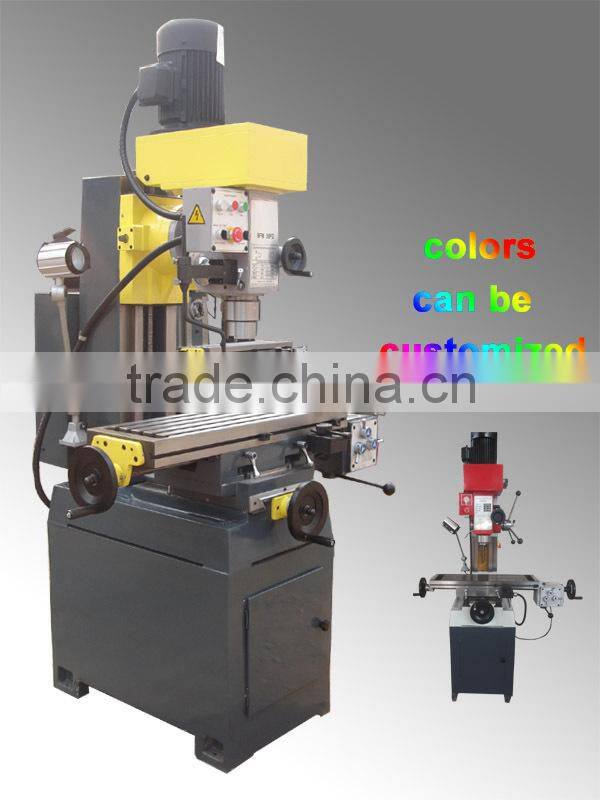

Manual Milling Machine
5. Aceessories

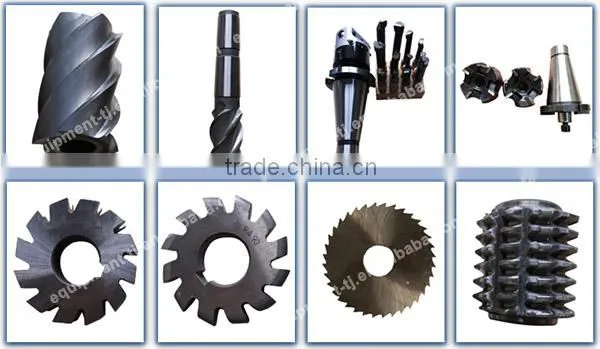

6. Optional Cutters
7. Product Usage
milling machine

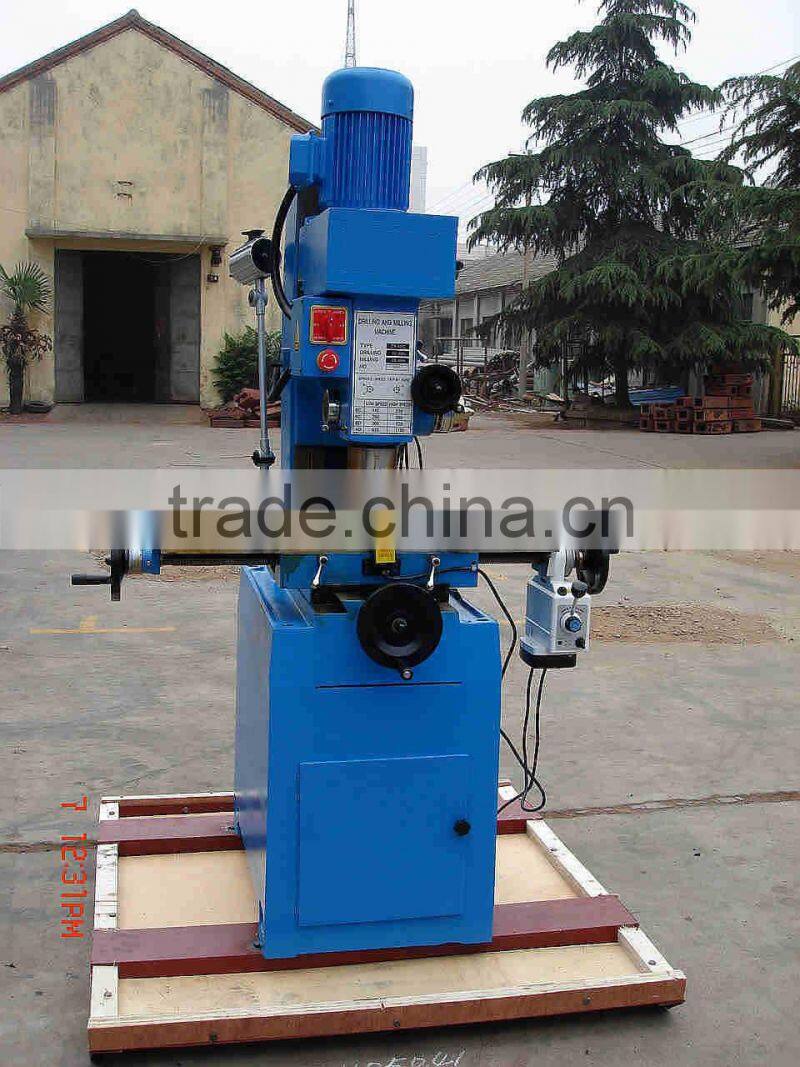

Wooden cases/ Pallets
Manual Milling Machine
Other Hot Sale Model Choices
Click Here Click Here Click Here Click Here

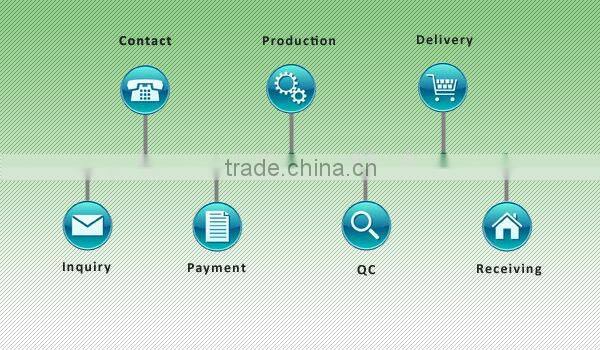

Transaction Steps
