Home > Products > Machine Tools > ZX50C High Precision Mini Dro Milling Machine
ZX50C High Precision Mini Dro Milling Machine
- 50 Unit / Units per Month
- Xingang of Tianjin Port China
- T/T D/P D/A Credit Card
Product Details
Condition: | New | Place of Origin: | Tianjin, China | Brand Name: | ME |
Model Number: | ZX50C | Type: | Vertical | CNC or Not: | Normal |
Voltage: | 220V/240V/380V; 50-60Hz | Power(W): | 1500 /(850/1500) | Dimension(L*W*H): | 400*230*380mm |
Weight: | N.W./G.W.: 460/470KG | Certification: | CE,ISO9001:2008 | Warranty: | 18 Months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Wooden Cases/Pallets
Product Description

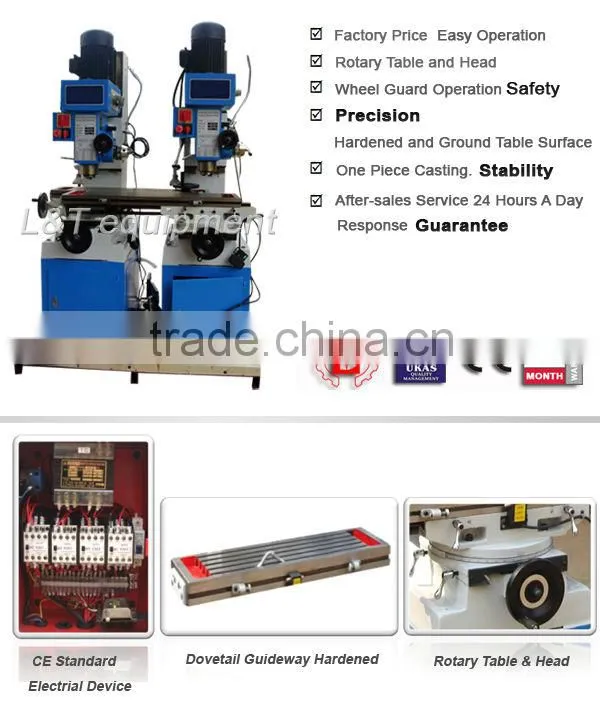

ZX50C High Precision Mini Dro Milling Machine
We Manufacture. Stock. Distribute
Hot Sale Easy Operation
Rotary Table and Head
CE Iso Certificated
18 Months Warranty
Good helper for your machining and maintanance work in your workshops
Specifications | ZX50A milling machine | ZX50C milling machine |
Max. Drilling Dia. (mm) | 50 | 50 |
Max. Horizontal Milling Dia. | 100 | 100 |
Max. Vertical Milling Dia. | 32 | 32 |
Max. Boring Dia. | 100 | 100 |
Spindle Taper | MT4,R8 | MT4,R8 |
Spindle Speeds Range | (5 step) 270-2400 | (5 step) 115-1750 |
Spindle Travel | 120 | 120 |
Table Size (mm) | 800*240 | 800*240 |
Table Travel (mm) | 400*230*380 | 400*230*380 |
Main Motor Power (KW) | 1.5 | 1.5 |
N.W./G.W.(Kg) | 460/540 | 470/550 |
ZX50A&ZX50C Milling Machine Standard Packing List
No. | Description | Specification | Qty |
1 | ZX50A/ZX50C Milling Machine |
| 1 |
2 | Drilling Chuck | 16 | 1 |
3 | Hexagon Spanner | 5 | 1 |
4 | Wedge Shifter |
| 1 |
5 | Reduction Sleeve |
| 1 |
6 | Draw Bar |
| 1 |
7 | Spindle Bar |
| 1 |
8 | Wrench | S21-24 | 1 |
9 | Machine Vice | 160 | 1 |
10 | Milling Chuck |
| 1 |
11 | Operation Manual |
| 1 |
12 | Quality Certificate |
| 1 |
13 | Packing list |
| 1 |
L&T
* You can also choose optional accessories, please contact our sales for details.
L&T

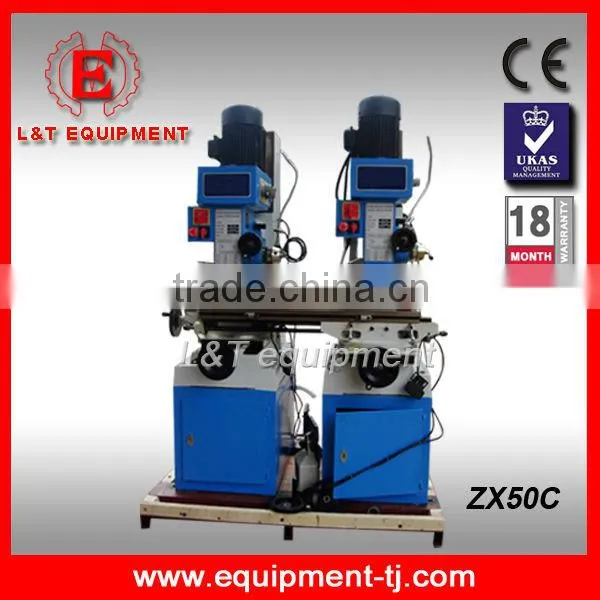

Product Picture
Accessories
Optional Cutter
Applications
Wooden Cases / Pallets
&T
Other Hot Sale Model Choice
L&T
Click here Click here Click here Click here
Best Selling Markets
Transaction Steps
ZX50C High Precision Mini Dro Milling Machine
Company Profile
Our company is a major import and export enterprise located in the port city Tianjin, China. Awarded multiple contracts by the World Bank and the Asian Development Bank, we have provided products worthy of billions of dollars to domestic and overseas partners on an annual basis since 1994. Our corporate mission is to promote our business by continually exceeding our customers' expectations for service and reliability.
Our company currently exports more than 400 categories of products to more than 100 countries worldwide. Our main export products are machine tools and accessories, valves, engineering machinery, universal machinery, agricultural machinery, electric motors, water-submersible pumps, diesel generating sets, conveyor pulleys, hydraulic cylinders, survey equipment, and so on.
With the rapid development of the Chinese market in recent years, internal demand for foreign products has expanded exponentially. To serve this demand, our company now imports an extensive range of products, including heavy forging equipment, paint sprayers, industrial lubricants, industrial liquid soap, laboratory apparatuses, flexible bus bars, fire extinguishing facilities, and power generator sets.
We are continually looking for reseller partners to distribute our products and supplier partners to expand our product base. Please contact us if you have a need. We look forward to serving you.
ISO9001:2008 certified.
