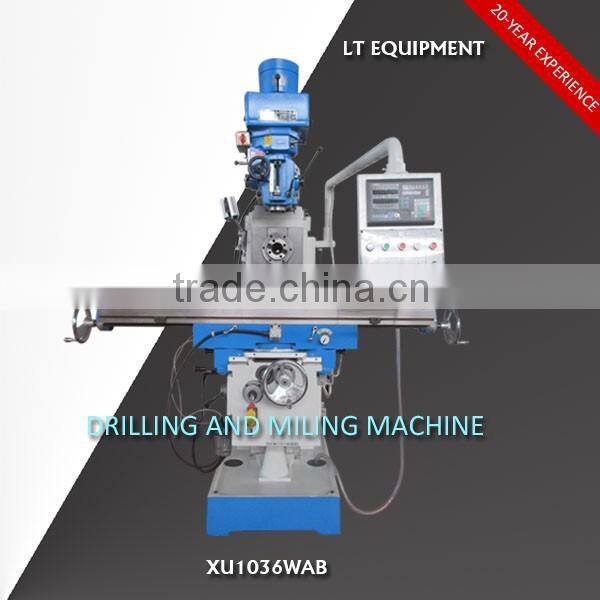

XU1036WA Drilling Milling Machine
We Manufacture. Stock. Distribute
1.Main Feature
Vertical milling spindle automatic feed
X/Y/Z axis mechanical feed
Vertical milling head rotate 45 °for right side and left side
working table rotate 45 °for right side and left side
CE ISO Certificated
18 Months warranty
Professional design, Easy operation
Good helper for your machining and maintanance work in your workshops

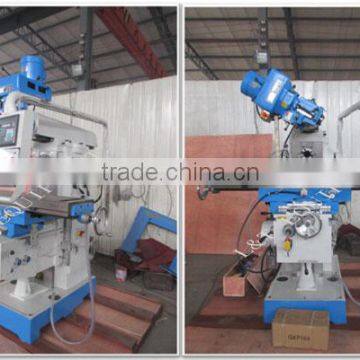

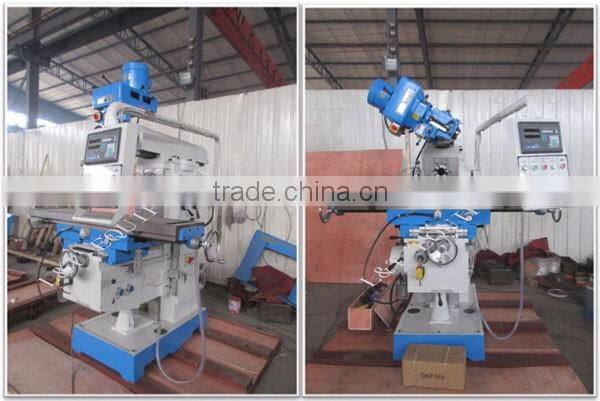

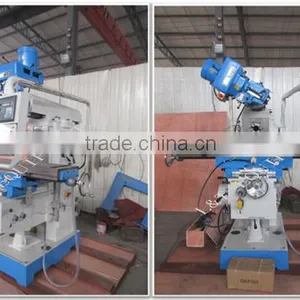

2. Sample Picture
3. Specifications
|
XU1036WA |
Spindle taper |
ISO40(V) ISO50(H) |
Distance from spindle to table |
135-585mm |
Distance from horizontal spindle to table |
0-380mm |
Distance from spindle to column |
200-700mm |
Spindle speeds |
(16steps))75-4660r.p.m(V) (12steps))30-1800r.p.m(H) |
Spindle travel |
127mm |
Feeding of quill |
(3steps)0.04 0.08 0.15 |
Max drilling capacity of auto-feeding |
15mm |
Max rotaions angle of table |
45degrees |
Head movement(left/right) |
45degrees |
Table size |
1600x360 mm |
Table travel(horizontal/cross/vertical) |
1000x390x450mm |
Feeding range of longitudinal cross travel |
(8steps)30-630mm/min |
X-axis rapid feed speed |
2000mm/min |
Z-axis rapid feed speed |
(8steps))18-300mm/min /630max |
Z-axis motor power |
1500W |
Max weight of workpiece |
450kg |
T-slot number /width/distance |
3/18mm/70mm |
Horse power for main motor |
5HP(V)4.0KW (H) |
X axis driving motor |
1500W |
Overall dimension |
2180X1950X2380 |
N.W./G.W. |
2500/2680KG |
4.Standard Packing List
Item |
Name |
Model |
Q’TY |
XU1036WA | |||
1 |
Drilling and milling machine |
|
1 |
2 |
Drill chuck |
16 |
1 |
3 |
Milling chuck |
|
1 |
4 |
Reduction sleeve |
|
2 |
5 |
Machine vice |
200 |
1 |
6 |
Wrench |
S21-24.27-30 |
1 |
7 |
Inner hexagonal spanner |
5.10 |
1 |
8 |
Cam lock |
|
2 |
9 |
Wedge shifter |
|
1 |
10 |
Spindle arbor(only MT4) |
|
1 |
11 |
Horizontal drilling bolt |
|
2 |
12 |
Operation manual |
|
1 |
13 |
Certificate of inspection |
|
1 |
14 |
Packing list |
|
1 |
* You can also choose optional accessories, please contact our sales for details.
5. Optional Cutters
milling machine
Wooden cases/ Pallets
Manual Milling Machine
