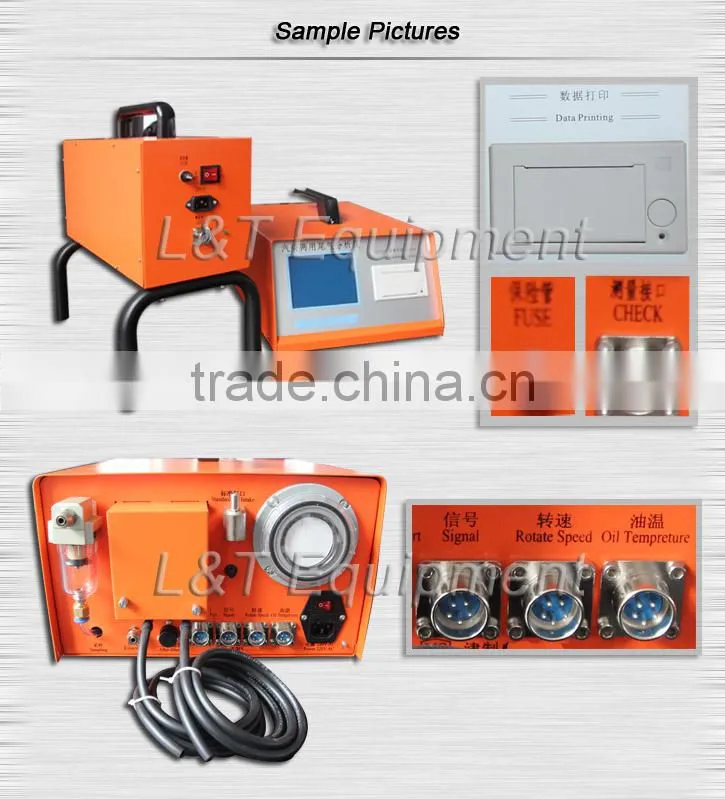

Whole Sale Checkout YQ Portable Exhaust Gas Analyzer Motors Automotive Tools
Main Functional :
Used to measure the concentration of HC, Co, Co2, O2, NOX in the Automobile Exhaust Gas
Used to measure opacity and light absorption coefficient, easy to operate
Free acceleration experiments and adopts the transient measurement function, and automatic: General and Two-speed idle
Full English Menu Operation, LCD (Liquid Crystal) screen display
Automatic calculation and show the air-fuel ratio
Equipped with functions of plate number and time display
Can store and search 500 groups of date, built-in printer
Measurable with liquefied Petroleum Gas (LPG), Compressed Natural Gad (CNG), and gasoline and other alternative fuel vehicles
Main Technical Feature:
| Instrument Precision | ||||
| Measurement Range | Zero Point Floating | Resolution | Indicated Error | |
| CO | 0-10% | ±0.06% | 0.01% | ±5% |
| CO2 | 0-20% | ±0.5% | 0.10% | ±5% |
| HC | 0-10000ppm | ±30ppm | 1ppm | ±5% |
| O2 | 0-25% | ±0.5% | 0.01% | ±5% |
| NO | 0-5000ppm | ±30ppm | 1ppm | ±5% |
| N | 0-99.9% | ±2.0% | 0.10% | ±2.0% |
| K | 0-16.00m-1 | 0.01m-1 | ||
| Petrol Temperature | 0-150°C | 0.1°C | ±2°C | |
| Engine Speed | 0-10000rpm | 1rpm | ±1% | |
| Other Sepcifications | |
| Response Times: | CO, HC, CO2≤ 10S |
| NO, O2≤ 15S | |
| Length of Optical Channels: | 215mm |
| Power: | 120VAC / 60Hz / 1 PH (can be customized) |
| Preheating Time: | Gas Test: 10min Smoke Test: 15min |
| Display Method: | LCD large screen display |
| Method of Sampling: | Double sampling probe, respectively for petrol and diesel exhaust emissions sampling |
| Gross Weight: | Control Unit : 6Kg Test Unit: 7.5Kg |
| Packing Size: | Control Unit : 620*495*325mm |
| Test Unit: 515*340*320mm | |
| Packing List | |
| 1. Petrol and Diesel Exhaust Testing and Fault Diagnosis System main body | 1 |
| 2. Test Unit | 1 |
| 3. Test Unit’s Interface Connection | 1 |
| 4. Standerd Gas | 2 |
| 5. Optical Filter | 1 |
| 6. Emission Analyzer Sampling Probe | 1 |
| 7. Smoke Meter Sampling Probe | 1 |
| 8. User’s Guide | 1 |
| 9. Special Filter | 1 |
| 10. 220V Power Line | 1 |
| 11. Prepositive Filter | 1 |
| 12. Front Filter | 8 |
| 13. Tail Pipe(1m) | 2 |
| 14. Printer Paper | 1 |
| 15. Specialized Spanner | 1 |
| 16. Network Tie-In | 1 |
| 17. Pump Cover | 2 |
| 18. Filter Element for Oil-water Separator | 2 |
| 19. Measurement Unit Bracket | 1 |
| 20. Installation Screw | M16*16 8pc |
| 21. Test Unit Brush | 1 |
| 22. Fuse | 2 |
