portable laser welding machine

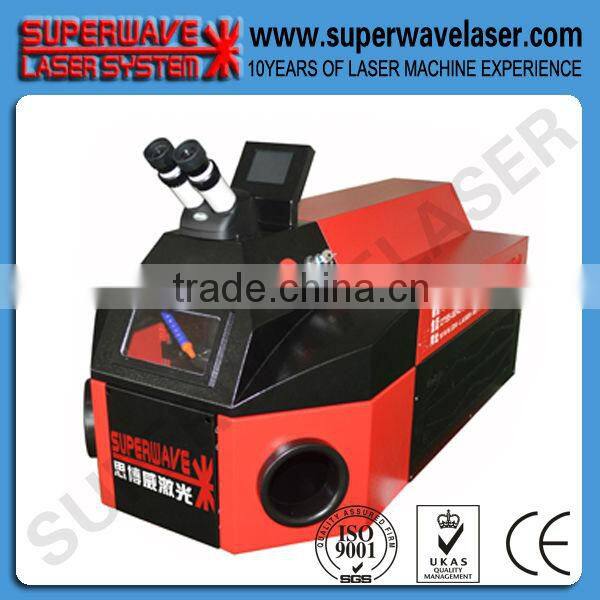

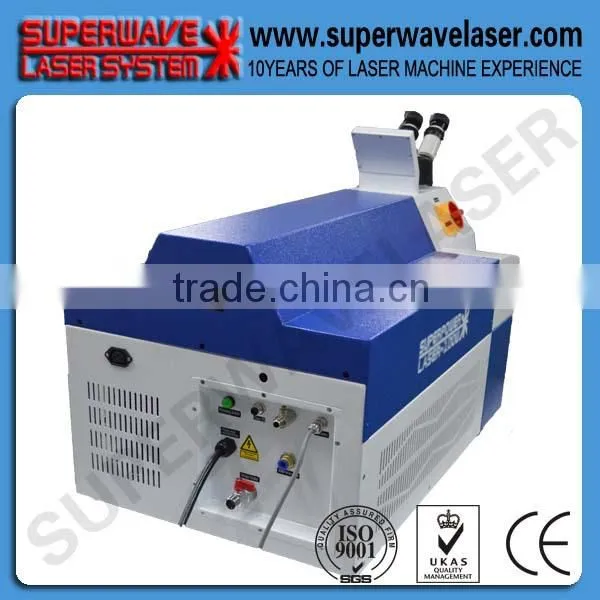

Machine picture cheap jewelry laser welding machine

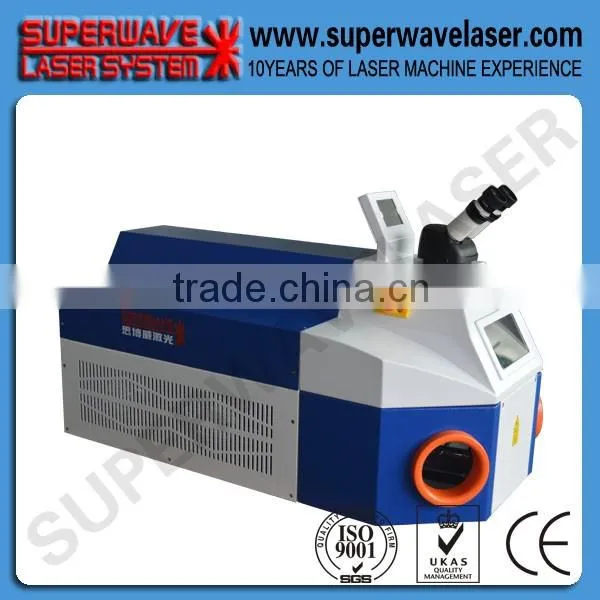

Mini laser welding machine for sale

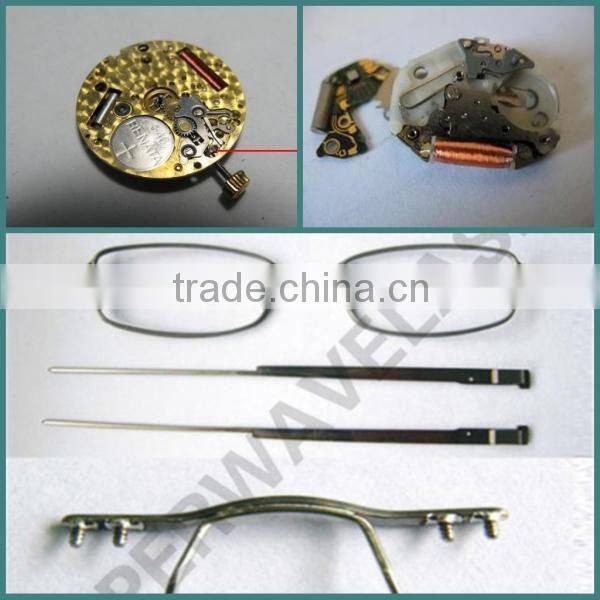

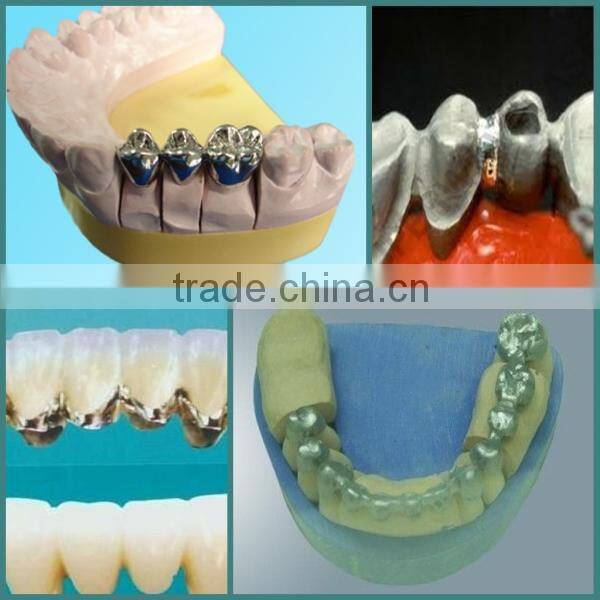

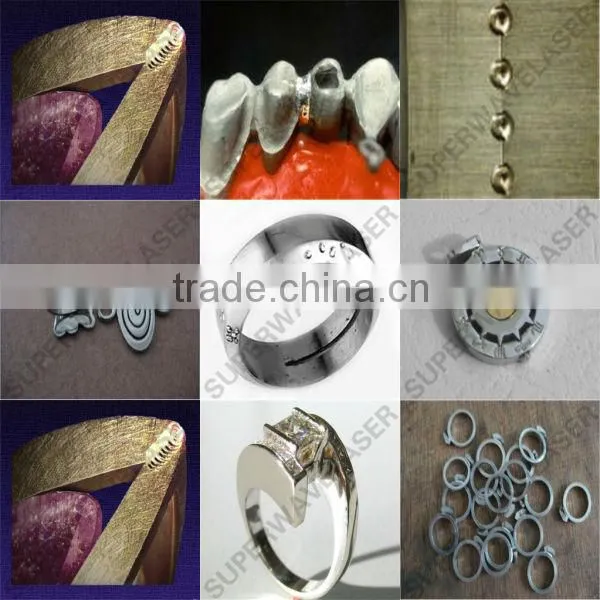

Sample pictrue cheap jewelry laser welding machine
| Feature |
| >>The energy, pulse width, frequency and light spot size can be adjusted in a large range to realize different welding effects. The parameters are adjusted by the lever in the seal cavity, which is simple and highly efficient. |
| >>Ceramic converging cavity is imported from the Britain. Jewelry laser welder is corrosion resistant and high temperature resistant, and has 8-10 years service life. The life of xenon lamp is more than 8 million times. |
| >> Use the most advanced light shielding system to eliminate the irritation to eyes by light during working |
| >> stable performance; free of maintenance in 10,000 hours Human-based design accords with ergonomics, avoiding fatigue after long time working |
Application
Jewelry laser welder widely used in aviation, aerospace, sports products, jewelry, golf head, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc, especially for the perforating of gold and silver jewelry, spot welding, repairing, inlay and welding of claw
Technical parameters
Model | SW-SW 60 | SW-SW 100 |
Max.output power | 60W | 100W |
Max.pulse energy | 60J | 80J |
Peak power | 4KW | 5KW |
Pulse duration | 0.1-20ms | 0.1-20ms |
Pulse frequency | 1-100Hz | 1-100Hz |
Focal diameter | 0.1-2.0mm | 0.1-2.0mm |
Cooling system | Internal cooling system (newest technology | Internal cooling system (newest technology |
Vision system | Stereo microscope 10X(CCD system optional) | Stereo microscope 10X(CCD system optional) |
Power supply | AC220V/±10%/50Hz | AC220V/±10%/50Hz |
Machine size | 970X540X570mm | 970X540X570mm |
Net weight | 80kg(after packing) | 80kg(after packing) |
Control system | Microchip CPU | Microchip CPU |

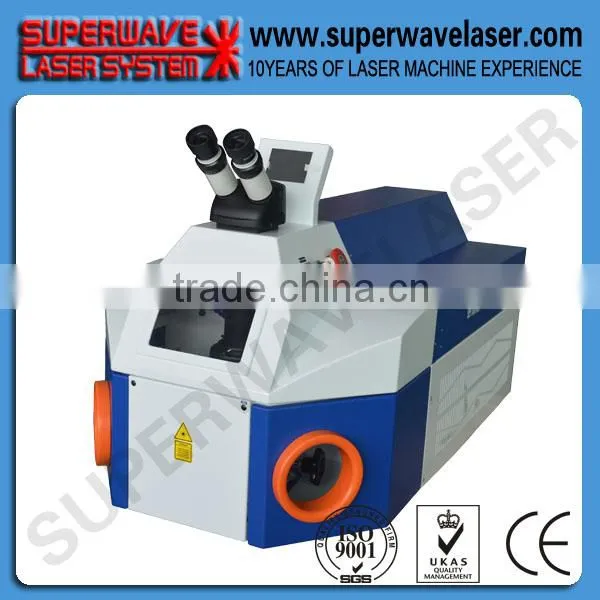

desktop jewelry laser welding machine
Training:
Free Training by VCD: We will supply the machine with <Training VCD> , <User's Manual> and <Instruction Book> in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by E-mail, fax, telephone, MSN, ICQ and so on, when you meet some problems of installation, using or adjusting. (Recommend)
Free Training in Superwave Laser's Factory: You can sent operator to Superwave Laser factory for free training. Superwave Laser will offer professional guide for free. It is direct and effective face-to-face training. Here we have well-assembled equipments, all sorts of tools and testing facility.
Our engineer can do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch. It's better to arrange a translator for both of our engineers during the training period.
Air Ticket + Local accommodation bears by buyer
Quality Guarantee & After-Sales Services
The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination. Except the damage artificially, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.

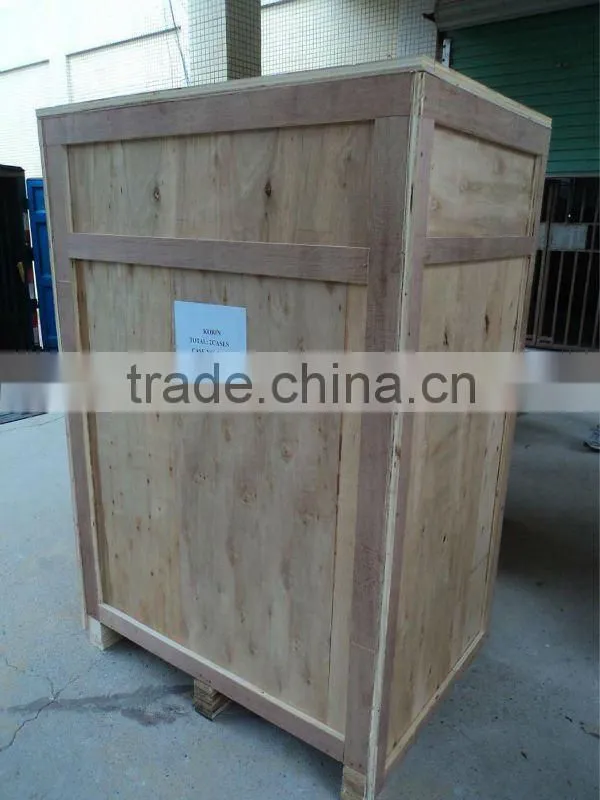

Packing
